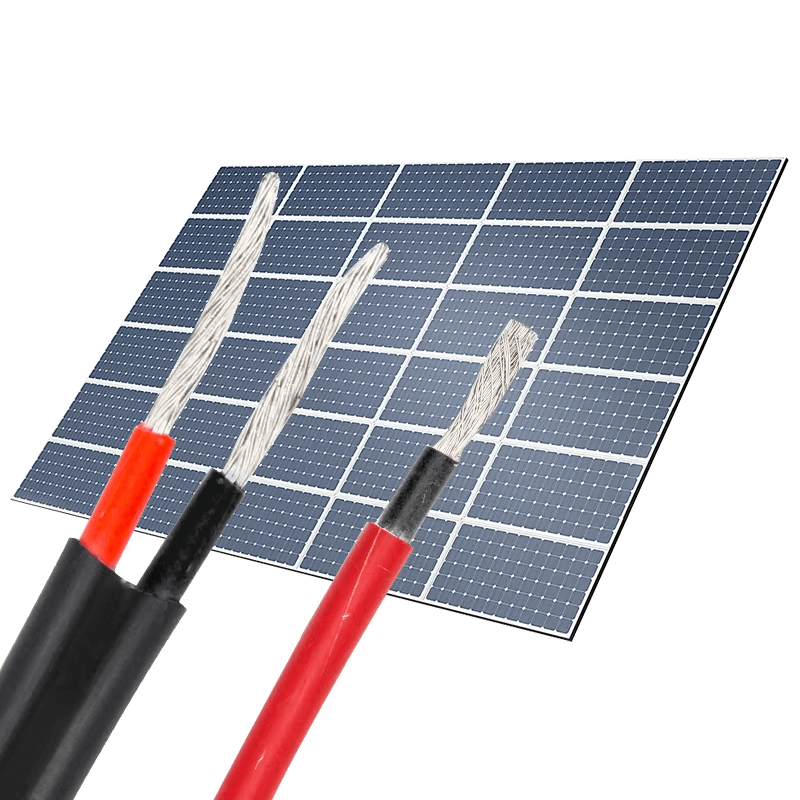

1.What is Solar Cable?
A solar cable is the interconnection cable used in photovoltaic (PV) power systems. It’s specifically designed to connect solar panels, combiner boxes, charge controllers, and inverters.
Think of it as the vascular system of your solar array, carrying the precious DC power generated by your panels. Unlike standard electrical cables, solar cables are engineered to handle the unique challenges of solar applications, including “extreme weather, high temperatures, and UV radiation”.
2.Why can’t you just use any regular cable?
Safety: Solar systems produce high DC voltages. Inferior cables can degrade, leading to short circuits, fires, or electrocution hazards. Solar cables are made with flame-retardant materials to prevent this.
Durability & Reliability: Exposed to sun, rain, heat, and cold for decades, regular cables would crack and become brittle. Solar cables have robust insulation and sheathing to withstand these elements for over 25 years, ensuring your system operates reliably.
Efficiency: They are built with high-quality materials and precise engineering to have excellent electrical properties, minimizing power loss over the distance from your panels to the inverter.
3.What are the key characteristics and materials of high-quality photovoltaic cables?
Conductor: Made of finely stranded,tinned copper. The stranding makes it flexible for easy installation, and the tinning provides extra protection against corrosion and oxidation.
Insulation: The inner layer is typically made from Cross-Linked Polyethylene (XLPE) or similar. This material is tough, flexible, and can handle a wide temperature range (usually from -40°C to +90°C or more).
Sheath: The outer jacket is made from Halogen-Free, Flame-Retardant (HFFR) materials. This is crucial because in case of a fire, it produces low smoke and no toxic halogens, protecting people and property.
4.How to choose the right cable？
Certification: Always look for international certifications like TÜV Mark (e.g., TÜV 2 PfG 1169) or UL4703. These guarantee the cable meets strict safety and performance standards for solar use.
Specifications:
Voltage Rating (e.g., DC 1.8kV):Must be rated for your system’s maximum voltage.
Current Rating: Match the cable’s cross-sectional area (e.g., 4mm², 6mm²) to the maximum current expected in the circuit to prevent overheating.
Environment:Will the cable be exposed to sunlight? Will it be buried? Ensure the cable’s specifications (like UV resistance or double-jacketing for direct burial) match your installation environment.
5.Summary
Solar cable is a critical component that ensures your system operates at peak efficiency, safely, and for its entire lifespan. Don’t let the wrong component undermine its performance and safety.
