2 gauge Battery Cable

KMCABLE 2 gauge battery cable.

Suitable for automotive car battery power ground connections, 200 AMP battery connections in PV off-grid systems, and other battery connections.

2 gauge Battery Cable Details

Description:

The KMCABLE 2awg battery cable is for low-tension automotive, battery system, and off-grid solar system applications for connecting, starting, charging, lighting, signal, and instrument panel circuits. Highly resistant to acids, lyes, petrol, and diesel.

Standard and Approvals:

Conductor acc. to SAE J1127
Cable Type Option: SGX SGT STX Battery Cable

Cable Structure:

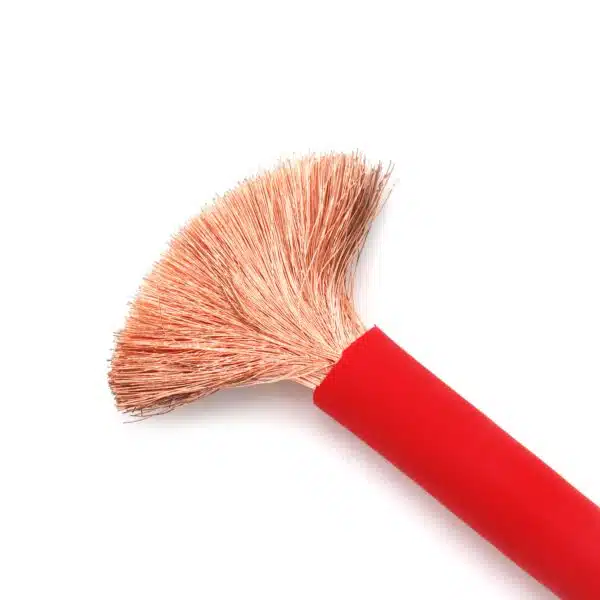

Conductor: Bare Copper (Tinned Copper available)
Color: Red Black Orange Blue Green or others

Technical data:

Cross section: 2 AWG
Conductor construction: 665/0.254
Conductor Stranded OD.max: 7.47
Cable OD: 12 mm
Normal Weight: 373 kg/km
Current Carry Capacity (A): 200-250 A


2 Gauge Battery Cable Applications:

Car Battery Connection

Car battery connection

Golf Cart Battery Connection

Golf cart battery connection

Solar Battery Connection

Inverter battery cable

Solar Inverter Connection

Solar inverter cable

2 gauge Battery Cable Datasheet

ConductorInsulationWeight Approx (KG/KM)
Crossectio n (awg)Construction (No./awg)DIA. (mm)Thickness (mm)O.D. (mm)
8665/0.1274.261.156.7115
61050/0.1275.351.538.5166
41666/0.1276.801.5310.0257
22646/0.1279.151.5312373
13332/0.1279.532.0414453
1/04214/0.12711.102.0415.0545
2/05292/0.12712.202.0417653
3/06784/0.12713.712.0418.0847
4/08512/0.12715.702.40201052

More information

For more size battery cable you can visit our battery cable page.

Can’t find the battery cable you need? Can we help you specify your project? Speak to our team.
