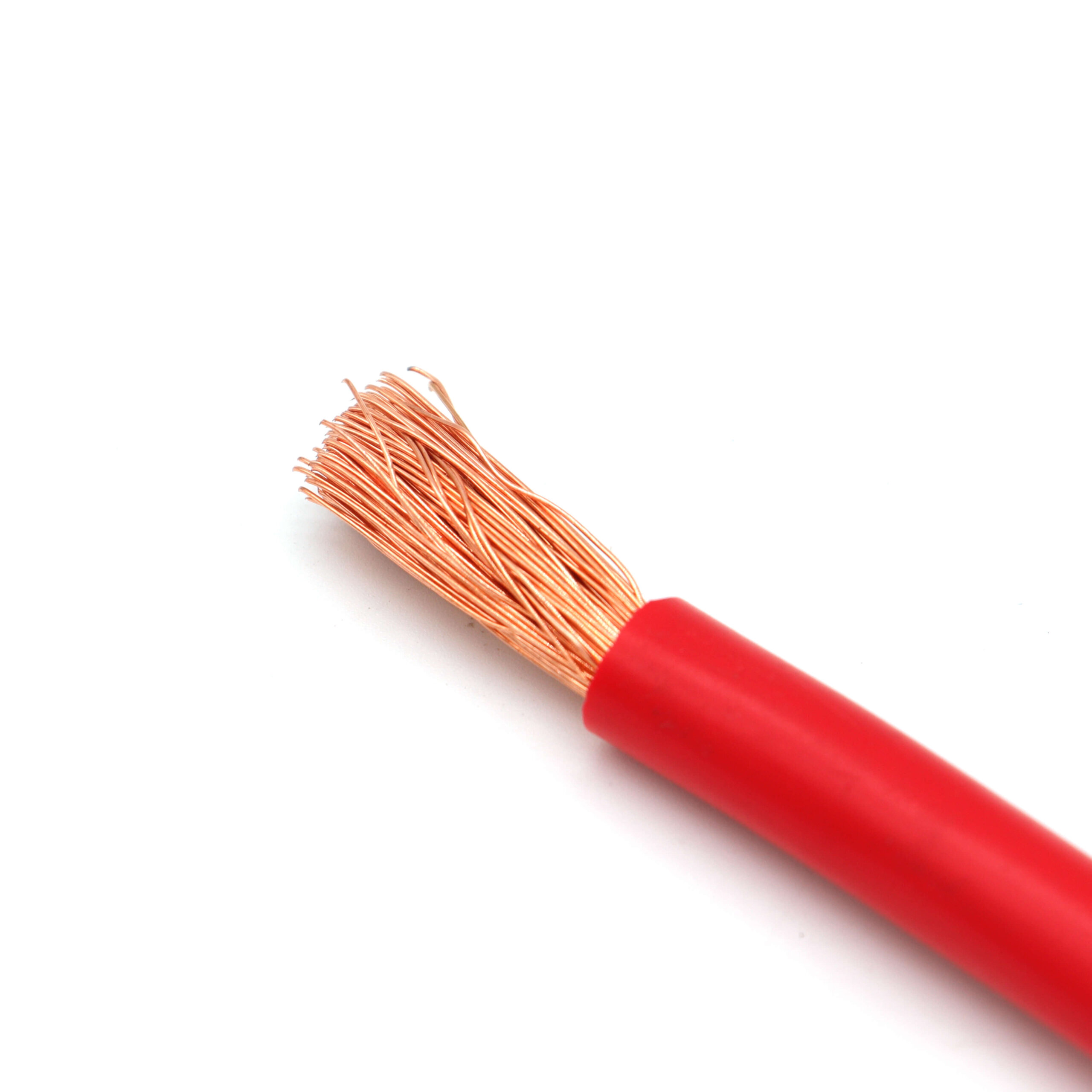

KMCABLE 4 gauge battery cable.
Suitable for automotive car battery power ground connections, 100 AMP battery connections in PV off-grid systems, and other battery connections.
The KMCABLE 4awg battery cable is for low-tension automotive, battery system, and off-grid solar system applications for connecting, starting, charging, lighting, signal, and instrument panel circuits. Highly resistant to acids, lyes, petrol, and diesel.
| Conductor | Insulation | Weight Approx (KG/KM) | |||
|---|---|---|---|---|---|
| Crossectio n (awg) | Construction (No./awg) | DIA. (mm) | Thickness (mm) | O.D. (mm) | |
| 8 | 665/0.127 | 4.26 | 1.15 | 6.7 | 115 |
| 6 | 1050/0.127 | 5.35 | 1.53 | 8.5 | 166 |
| 4 | 1666/0.127 | 6.80 | 1.53 | 10.0 | 257 |
| 2 | 2646/0.127 | 9.15 | 1.53 | 12 | 373 |
| 1 | 3332/0.127 | 9.53 | 2.04 | 14 | 453 |
| 1/0 | 4214/0.127 | 11.10 | 2.04 | 15.0 | 545 |
| 2/0 | 5292/0.127 | 12.20 | 2.04 | 17 | 653 |
| 3/0 | 6784/0.127 | 13.71 | 2.04 | 18.0 | 847 |
| 4/0 | 8512/0.127 | 15.70 | 2.40 | 20 | 1052 |
For more size battery cable you can visit our battery cable page.
