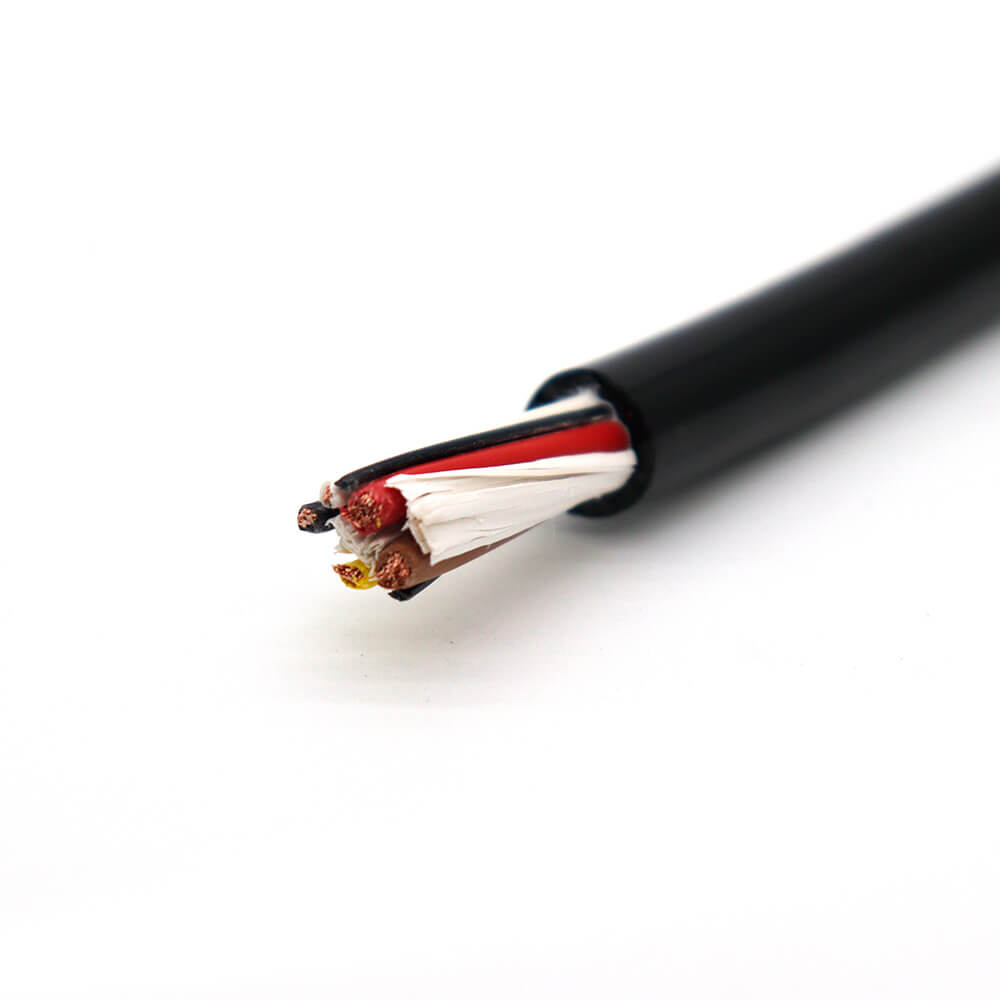

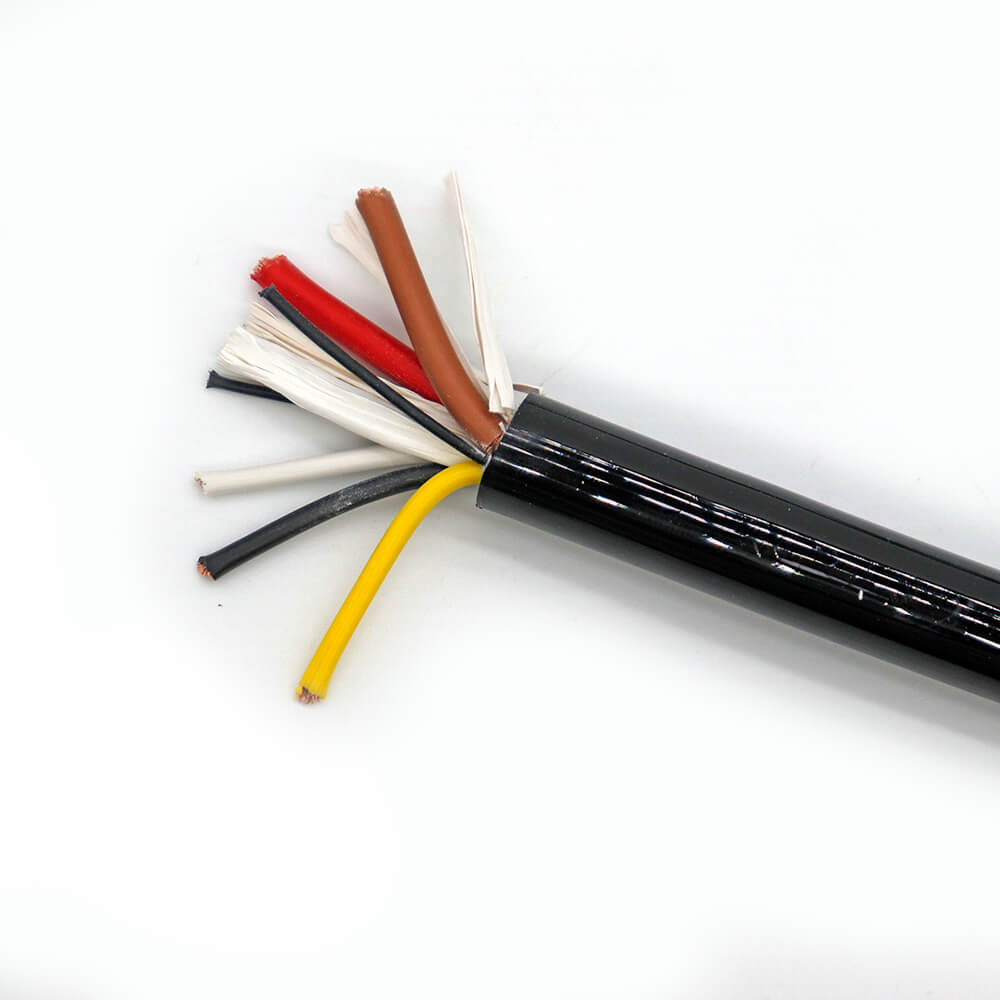

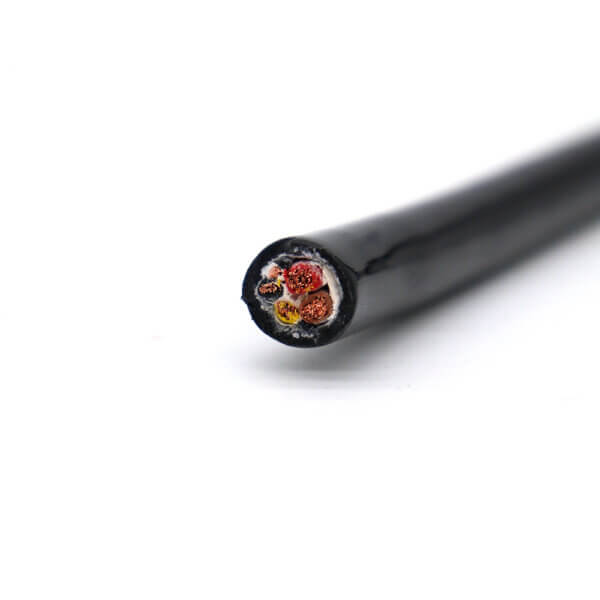

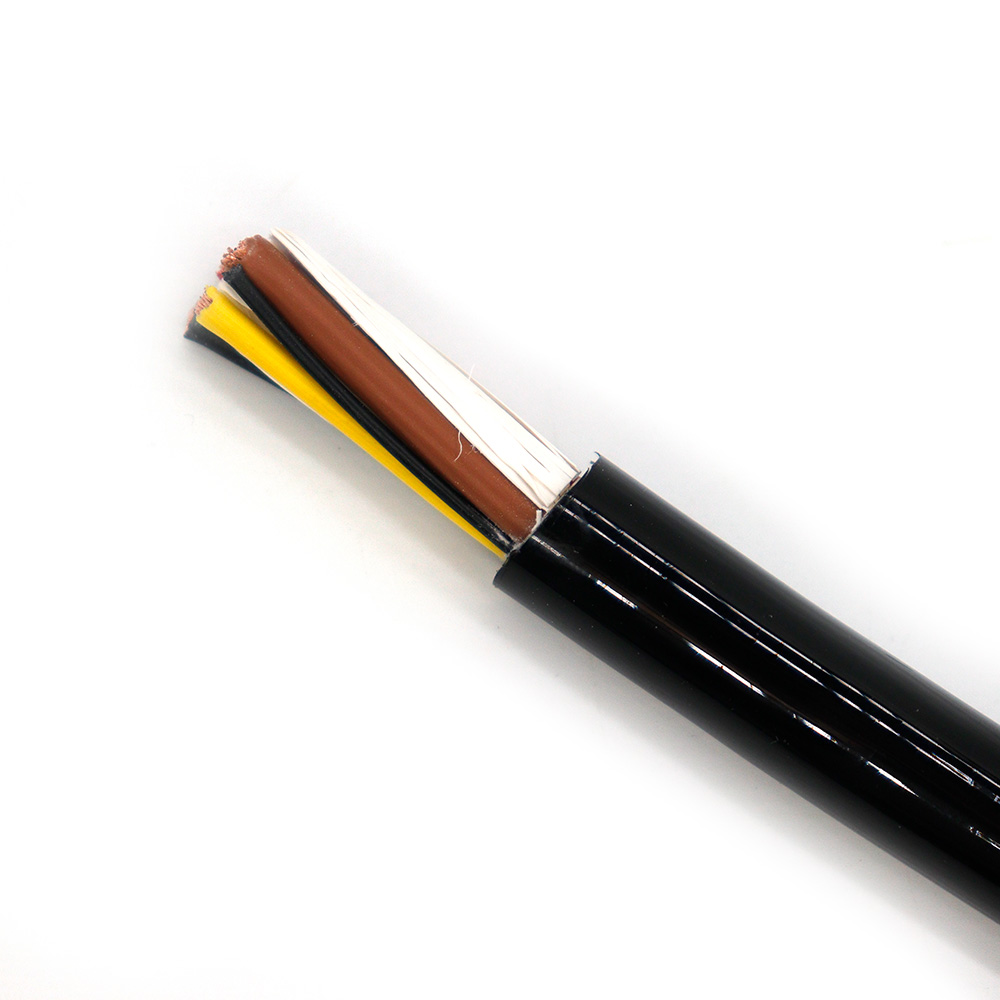

5P ABS/EBS Trailer Cable

This 5 core pur Cable is suitable for 5 pin ABS/EBS Trailer coil based on ISO 7638-1, ISO7638-2.

Cable size: 3x 1.5mm² + 2x 4.0mm²

Standard and Approvals

ISO 7638
Weather und UV resistant
Resistant to acid
Flame-resistant acc. to VDE 0482-332-1-2 DIN EN 60332-1-2

Cable Structure:

Conductor: Bare copper
Insulation: TPE-E
Jacket: PUR
Number of core wire: 5 core

Technical data:

Voltage Rating: 12V / 24V
Maximum Voltage (Umax): 1800V
Temperature Rating Fixed: -40° C to +85° C
Minimum Bending Radius: 6 x overall diameter
Maximum Conductor Temperature: +120° C (for 20000h)
