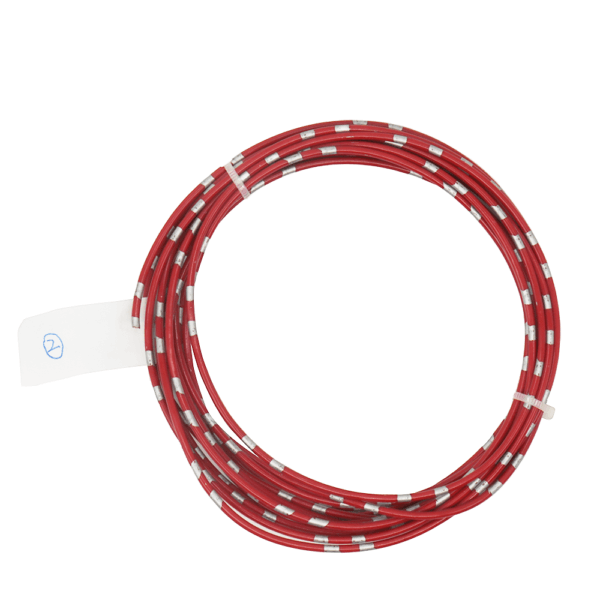

This PVC insulated single-core cable is used for low voltage circuits in automobiles, vehicles and motorcycles.
JASO D 611-94
Conductor:Cu-ETP1 bare according to D 609-90
Insulation:PVC
Operating temperature:–40 °C to +85 °C
| NOMINAL CROSS-SECTION MM2 | ELECTRICAL RESISTANCE AT 20°C MΩ/M | THICKNESS WALL NOM. MM | OVERALL DIAMETER MAX. MM | WEIGHT APPROX. KG/KM |
|---|---|---|---|---|
| 1 x0.3 | 50.20 | 0.50 | 1.9 | 6 |
| 1 x0.5 | 32.70 | 0.60 | 2.40 | 7 |
| 1 x0.85 | 20.80 | 0.60 | 2.60 | 10 |
| 1 x1.25 | 14.30 | 0.60 | 2.90 | 15 |
| 1 x2 | 8.81 | 0.60 | 3.40 | 22 |
| 1 x3 | 5.59 | 0.70 | 3.90 | 42 |
| 1 x5 | 3.52 | 0.80 | 4.90 | 61 |
