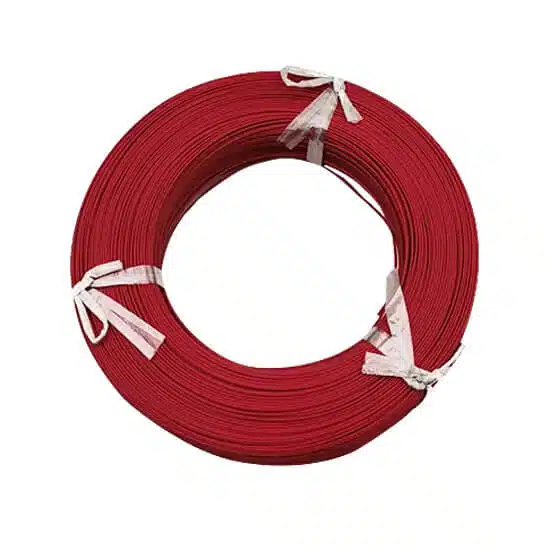

This PVC insulated automotive cable is used for cable harnesses. It has a good heat resistance performance.
| NOMINAL CROSS- SECTION MM2 | ELECTRICAL RESISTANCE AT 20°C MAX. MΩ/M | THICKNESS WALL NOM. MM | OVERALL DIAMETER MAX. MM | WEIGHT APPROX. KG/KM |
|---|---|---|---|---|
| 1x0.35 | 55.5 | 0.2 | 1.1 | 4.5 |
| 1x0.5 | 38.2 | 0.2 | 1.2 | 6.6 |
| 1x0.75 | 25.4 | 0.24 | 1.7 | 9 |
| 1x1 | 19.1 | 0.24 | 1.9 | 11 |
| 1x1.5 | 13 | 0.24 | 2.2 | 16 |
| 1x2 | 9.69 | 0.28 | 2.5 | 22 |
| 1x2.5 | 7.8 | 0.28 | 2.7 | 26 |
| 1x3 | 6.36 | 0.28 | 2.9 | 32.5 |
| 1x4 | 4.8 | 0.32 | 3.4 | 42 |
| 1x6 | 3.2 | 0.32 | 4 | 61 |
| 1x10 | 1.85 | 0.48 | 5.4 | 108 |
| 1x16 | 1.18 | 0.52 | 6.4 | 170 |
| 1x25 | 0.76 | 0.52 | 7.9 | 265 |
| 1x30 | 0.68 | 0.64 | 8.7 | 322 |
| 1x35 | 0.54 | 0.64 | 9.4 | 391 |
| 1x40 | 0.5 | 0.71 | 10 | 443 |
| 1x50 | 0.38 | 0.71 | 11 | 522 |
| 1x60 | 0.33 | 0.80 | 12 | 605 |
| 1x70 | 0.26 | 0.80 | 13 | 698 |
| 1x95 | 0.16 | 0.90 | 15.3 | 749 |
