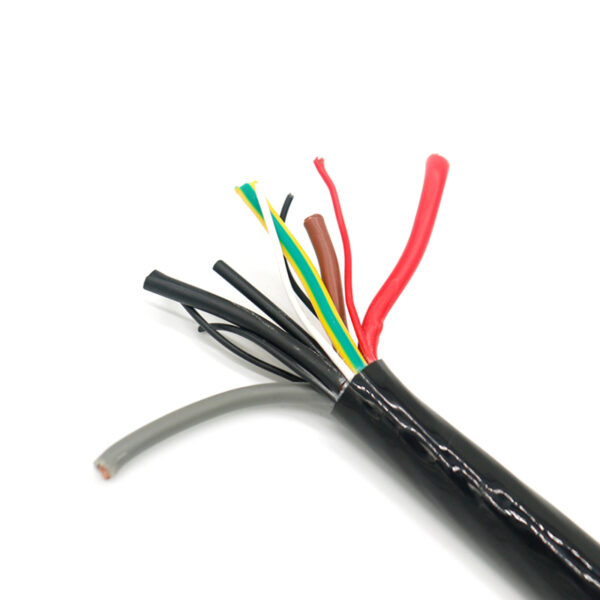

This American Standard EV charging cable is made according to SAE J1772, UL2594, UL62 related standards. It is made of TPE material, which is resistant to oil and drag resistance. It is very suitable for outdoor EV charging post and EV charging station.
EV charging cable according to SAE J1772,UL2594,UL62
Temperature range: -50°C to +105°C
Nominal voltage 600/700V
Test voltage : 2000 V
Minimum bending radius: Flexible 7,5 x cable-Ø
Fixed 4 x cable-Ø
| NO. OF CORE. | AWG SIZE | NOMINAL CON. OD | NOMINAL INS. THICKNESS | NOMINAL OD | CURRENT |
|---|---|---|---|---|---|
| EVJE/EVJ | mm | mm | mm | AMPS | |
| 3 | 16 | 1.55 | 0.76 | 9.17 | 13 |
| 1 | 18 | 1.22 | 0.76 | 9.17 | 13 |
| 3 | 14 | 1.96 | 0.76 | 9.91 | 18 |
| 1 | 18 | 1.22 | 0.76 | 9.91 | 18 |
| 3 | 12 | 2.44 | 0.76 | 11.53 | 25 |
| 1 | 18 | 1.22 | 0.76 | 11.53 | 25 |
| 3 | 14 | 1.96 | 0.76 | 9.91 | 18 |
| 1 | 18 | 1.22 | 0.76 | 9.91 | 18 |
| 3 | 12 | 2.44 | 0.76 | 11.53 | 25 |
| 1 | 18 | 1.22 | 0.76 | 11.53 | 25 |
| EVE/EVT 600V | |||||
| 3 | 16 | 1.55 | 0.76 | 11.89 | 13 |
| 1 | 18 | 1.22 | 0.76 | 11.89 | 13 |
| 3 | 14 | 1.96 | 1.14 | 14.22 | 18 |
| 1 | 18 | 1.22 | 0.76 | 14.22 | 18 |
| 3 | 12 | 2.39 | 1.14 | 14.94 | 25 |
| 1 | 18 | 1.22 | 0.76 | 14.94 | 25 |
| 3 | 10 | 3.00 | 1.14 | 17.15 | 30 |
| 1 | 18 | 1.22 | 0.76 | 17.15 | 30 |
| 3 | 8 | 4.19 | 1.52 | 23.01 | 74 |
| 1 | 18 | 1.22 | 0.76 | 23.01 | 74 |
| 2 | 6 | 5.16 | 1.52 | 24.41 | 99 |
| 1 | 8 | 4.06 | 1.52 | 24.41 | 99 |
| 1 | 18 | 1.22 | 0.76 | 24.41 | 99 |
| 3 | 14 | 1.96 | 1.14 | 14.22 | 18 |
| 1 | 18 | 1.22 | 0.76 | 14.22 | 18 |
| 3 | 12 | 2.39 | 1.14 | 14.94 | 25 |
| 1 | 18 | 1.22 | 0.76 | 14.94 | 25 |
