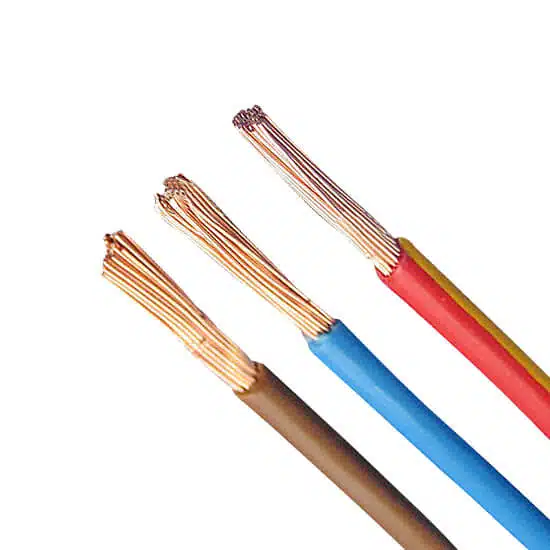

H07Z1-K electrical cable wire. This high temperature resistant cable is used for internal connectors in switch gear boxes and similar applications.
Nominal Voltage : 450 / 750V
Temperature Range : -30°C to +70°C
Minimum Bending Radius :
Cable diameter ≤ 8 mm: 4 x outer diameter
Approx. diameter > 8 to 12 mm: 5 x outer diameter
Approx. diameter > 12 mm: 6 x outer diameter
Test Voltage: 2500V
| Nominal Cross Sectional Area (Sq. mm) | Nominal Thickness of Insulation (mm) | Mean Overall Diameter (mm) | Approx. Cable Weight (kg/km) |
|---|---|---|---|
| 1 | 0.6 | 2.8 | 15.5 |
| 1.5 | 0.7 | 3.4 | 21.5 |
| 2.5 | 0.8 | 4.1 | 33.5 |
| 4 | 0.8 | 4.8 | 48 |
| 6 | 0.8 | 5.3 | 67 |
| 10 | 1.0 | 6.8 | 113 |
| 16 | 1.0 | 8.1 | 171 |
| 25 | 1.2 | 10.2 | 262 |
| 35 | 1.2 | 11.7 | 360 |
| 50 | 1.4 | 13.9 | 513 |
| 70 | 1.4 | 16.0 | 705 |
| 95 | 1.6 | 18.2 | 931 |
| 120 | 1.6 | 20.2 | 1175 |
| 150 | 1.8 | 22.5 | 1264 |
| 185 | 2.0 | 24.9 | 1783 |
| 240 | 2.2 | 28.4 | 2341 |
