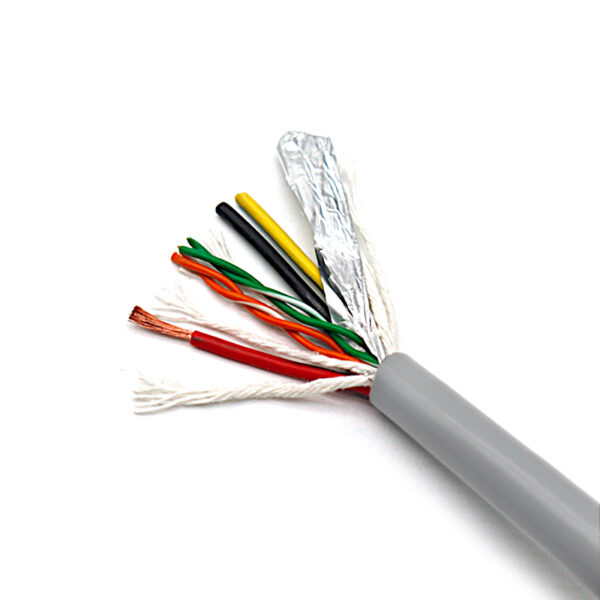

Li2YCY, Polyethylene insulated data cables are specialized for computer applications and data transmission. Specialized for transmission rates up to 10MB/s cabling data systems, such as RS422, RS 485 interface type. The twisted pair prevents electrical imbalance within the cable and effectively suppresses crosstalk effects. Limited suitability for flexible or fixed installations in dry and humid indoor environments.
– Working voltage: 250 volts
– Test voltage: Conductor to conductor 2000 V
Conductor to shield 1000 V
– Minimum bending radius: 7.5 x Ø
– Flexing temperature: -5º C to +70º C
– Static temperature: -30º C to +80º C
– Flame retardant: IEC 60332.1-2
– Insulation resistance: 5GΩ x km
– Impedance: 100 Ω + 15Ω
– Mutual capacitance at 800 Hz: max. 60 nF/km
– Loop resistance: max. 160 Ohm/km
– Inductance: approx. 0.66 mH/km
– Cross-Talk Attenuation: Up 1 MHz min. 50 dB / Up 10 MHz min. 40 dB
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM2 | NOMINAL OVERALL DIAMETER MM | COPPER WEIGHT KG / KM | CABLE WEIGHT KG / KM |
|---|---|---|---|---|
| 24(7/32) | 2x2x0.22 | 7.3 | 31.0 | 95 |
| 24(7/32) | 3x2x0.22 | 7.5 | 34.0 | 105 |
| 24(7/32) | 4x2x0.22 | 9.3 | 45.0 | 140 |
| 24(7/32) | 8x2x0.22 | 13.5 | 97.0 | 245 |
| 24(7/32) | 10x2x0.22 | 14.0 | 108.0 | 325 |
| 22(7/30) | 2 x 2 x 0.34 | 9.5 | 62.0 | 125 |
| 22(7/30) | 3 x 2 x 0.34 | 10.0 | 78.2 | 140 |
| 22(7/30) | 4 x 2 x 0.34 | 12.0 | 124.1 | 205 |
| 22(7/30) | 8 x 2 x 0.34 | 17.0 | 178.7 | 330 |
| 22(7/30) | 10x2x0.34 | 17.2 | 213.9 | 420 |
| 20(7/28) | 2 x 2 x 0.50 | 10.1 | 73.1 | 139 |
| 20(7/28) | 3 x 2 x 0.50 | 11.0 | 88.1 | 157 |
| 20(7/28) | 4 x 2 x 0.50 | 12.4 | 137.2 | 213 |
| 20(7/28) | 8 x 2 x 0.50 | 16.0 | 247.2 | 385 |
| 20(7/28) | 10x2x0.50 | 17.6 | 288.7 | 433 |
