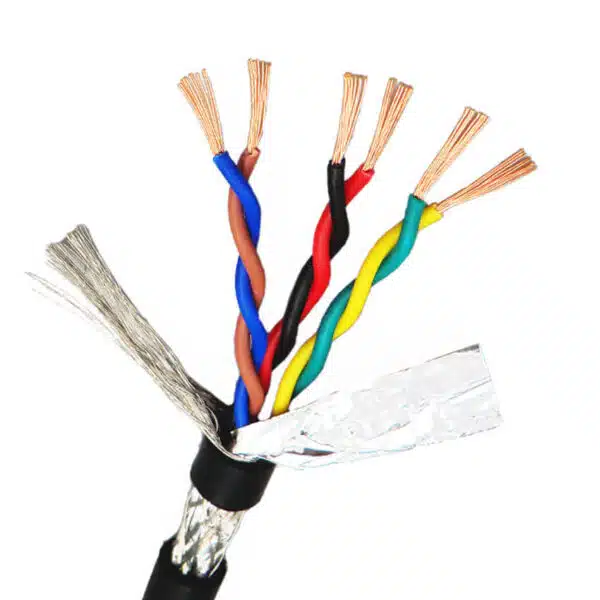

3 pair every 2 wire twisted cable 3x2 RVSP cable

RVSP Cable

RVSP cable is also known as RYSP, the Chinese name of RVSP cable is ordinary shielded copper-core polyvinyl chloride insulated stranded connection twisted shielded flexible cable.

This cable can be used as a control and signal cable in computer systems, electronic control equipment, office machines and measuring equipment in the tool making and mechanical industries.

Standard and Approvals

JB/T 8734.5-2016, GB∕T 5023.2

Cable Structure:

Conductor: Bare copper

Insulation: PVC

Jacket: PVC

Screen: Tinned Copper Wire Braid Screen

Plastic foil separator

Technical data:

Working voltage: 300 volts

Test voltage: 1200/1500 volts

Minimum bending radius: 10 x Ø

Flexing temperature: -5º C to +70º C

Static temperature: -40º C to +80º C

Flame retardant: IEC 60332.1

Insulation resistance: 20 MΩ x km

0.14mm Multi Core Cable

NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM²	NOMINAL OVERALL DIAMETER MM	COPPER WEIGHT KG / KM	CABLE WEIGHT KG / KM
2x2x0.14	5.2	18.5	40
3x2x0.14	5.6	23	49
4x2x0.14	5.8	26.6	55
5x2x0.14	6.5	30.7	66
6x2x0.14	7.3	48.5	86
7x2x0.14	7.5	51.1	91
8x2x0.14	7.8	53.7	97
10x2x0.14	8.5	59.0	109
12x2x0.14	9.3	66.0	141
14x2x0.14	10.0	74.0	148
15x2x0.14	10.3	76.0	152
16x2x0.14	10.7	79.0	155
18x2x0.14	11.0	83.0	171
20x2x0.14	11.2	97.0	183
22x2x0.14	11.6	103.0	205
24x2x0.14	12.0	111.0	228
25x2x0.14	12.4	113.0	239
26x2x0.14	12.8	122.0	245
27 x 2 x 0.14	13	125	251
28 x 2 x 0.14	13.2	128	258
30 x 2 x 0.14	13.6	140	270
32 x 2 x 0.14	14.2	145	284
34 x 2 x 0.14	14.6	150	300
36 x 2 x 0.14	14.8	156	316
38 x 2 x 0.14	15	162	350
40 x 2 x 0.14	15.4	177	370
44 x 2 x 0.14	16	181	390
46 x 2 x 0.14	16.4	195	430
50 x 2 x 0.14	17.8	202	440
52 x 2 x 0.14	18	206	460
55 x 2 x 0.14	18.8	210	480

0.25mm Multi Core Cable

NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM²	NOMINAL OVERALL DIAMETER MM	COPPER WEIGHT KG / KM	CABLE WEIGHT KG / KM
2 x 2 x 0.25	6.3	28	53
3 x 2 x 0.25	6.7	32	65
4 x 2 x 0.25	6.8	38.0	80
5 x 2 x 0.25	7.8	55.0	98
6 x 2 x 0.25	8.8	65.0	114
7 x 2 x 0.25	8.9	70.0	121
8 x 2 x 0.25	9.6	75.0	129
10 x 2 x 0.25	10.6	110.0	157
12 x 2 x 0.25	11.6	117.0	189
14 x 2 x 0.25	12.0	122.0	213
15 x 2 x 0.25	12.5	134.0	225
16 x 2 x 0.25	13.0	143.0	237
18 x 2 x 0.25	13.2	148.0	248
20 x 2 x 0.25	13.7	162.0	275
22 x 2 x 0.25	14.4	172.0	303
24 x 2 x 0.25	15.0	223.0	330
25 x 2 x 0.25	15.4	233.0	343
26 x 2 x 0.25	15.8	238.0	345
27 x 2 x 0.25	16.2	244.0	350
28 x 2 x 0.25	16.3	249.0	360
30 x 2 x 0.25	16.7	254.0	375
32 x 2 x 0.25	16.9	290.0	400
34 x 2 x 0.25	17.5	312.0	410
36 x 2 x 0.25	17.7	322.0	420
38 x 2 x 0.25	18.0	339.0	450
40 x 2 x 0.25	18.8	349.0	485
44 x 2 x 0.25	19.0	359.0	500
46 x 2 x 0.25	19.2	398.0	540
50 x 2 x 0.25	19.9	403.0	550
52 x 2 x 0.25	20.0	435.0	580
55 x 2 x 0.25	21.0	464.0	630

0.34mm Multi Core Cable

NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM²	NOMINAL OVERALL DIAMETER MM	COPPER WEIGHT KG / KM	CABLE WEIGHT KG / KM
2 x 2 x 0.34	6.3	36.9	65
3 x 2 x 0.34	7.5	44.9	78
4 x 2 x 0.34	8.0	54.2	90
5 x 2 x 0.34	8.9	63.5	110
6 x 2 x 0.34	10.5	73.1	130
7 x 2 x 0.34	10.7	79.5	145
8 x 2 x 0.34	10.9	88.4	150
9 x 2 x 0.34	11.4	99.3	170
10 x 2 x 0.34	12.0	106.9	190
12 x 2 x 0.34	13.2	122.1	220
14 x 2 x 0.34	13.6	138.2	245
16 x 2 x 0.34	15.1	154.2	250
18 x 2 x 0.34	15.2	197.9	275
21 x 2 x 0.34	16.2	214.4	300
25 x 2 x 0.34	17.9	238.5	400
27 x 2 x 0.34	18.2	262.5	410
30 x 2 x 0.34	19.0	286.6	440
34 x 2 x 0.34	20.0	310.1	510
37 x 2 x 0.34	20.3	368.7	550
40 x 2 x 0.34	21.0	392.6	590
44 x 2 x 0.34	22.2	424.3	600
50 x 2 x 0.34	23.5	455.9	650
52 x 2 x 0.34	24.6	487.6	680
56 x 2 x 0.34	25.1	518.5	750
61 x 2 x 0.34	26.3	557.2	840

0.5mm 0.75mm 1mm 1.5mm Multi Core Cable

NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM²	NOMINAL OVERALL DIAMETER MM	COPPER WEIGHT KG / KM	CABLE WEIGHT KG / KM
2 x 2 x 0.5	7.8	54.0	89
3 x 2 x 0.5	8.5	70.0	104
4 x 2 x 0.5	9.1	91.0	126
5 x 2 x 0.5	10.4	105.0	148
6 x 2 x 0.5	11.8	120.0	171
8 x 2 x 0.5	13.1	144.0	290
10 x 2 x 0.5	14.3	178.0	320
12 x 2 x 0.5	15.0	199.0	261
16x2x0.5	17.5	254.0	421
20 x 2 x 0.5	19.5	302.0	580
25 x 2 x 0.5	22.5	344.0	740
2 x 2 x 0.75	8.2	58.0	105
3 x 2 x 0.75	9.0	84.0	128
4 x 2 x 0.75	9.2	108.0	156
5 x 2 x 0.75	11.0	126.0	189
6 x 2 x 0.75	12.4	146.0	216
8 x 2 x 0.75	14.1	180.0	309
10 x 2 x 0.75	15.3	220.0	355
12 x 2 x 0.75	16.4	261.0	405
16 x 2 x 0.75	19.2	328.0	565
20 x 2 x 0.75	21.2	392.0	700
25 x 2 x 0.75	23.5	470.0	950
2 x 2 x 1.0	8.9	82	116
3 x 2 x 1.0	9.5	103	140
4 x 2 x 1.0	10.5	132	190
5 x 2 x 1.0	14.3	161	265
7 x 2 x 1.0	16.5	208	411
2 x 2 x 1.5	10.7	110	122
3 x 2 x 1.5	11.6	135	193
4 x 2 x 1.5	13.0	171	240
5 x 2 x 1.5	15.2	211	339
7 x 2 x 1.5	17.5	295	475
