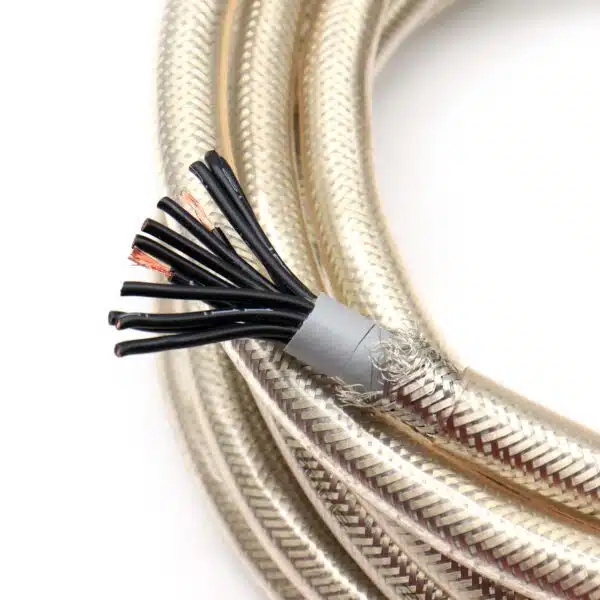

SY cables can be used as internal connections for measuring, controlling or regulating signal and control equipment. These steel wire control cables are often used in assembly lines, conveyors, computer units and machine tools.
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM2 | DIAMETER OVER BEDDING MM | DIAMETER OVER BRAID MM | NOMINAL OVERALL DIAMETER MM | CABLE WEIGHT KG / KM |
|---|---|---|---|---|---|
| 20(16/32) | 2x0.5 | 5.5 | 6.5 | 8.3 | 91 |
| 20(16/32) | 3x0.5 | 5.7 | 6.7 | 8.6 | 99 |
| 20(16/32) | 4x0.5 | 6.2 | 7.2 | 9.1 | 113 |
| 20(16/32) | 5 x0.5 | 6.7 | 7.7 | 9.7 | 129 |
| 20(16/32) | 7x0.5 | 7.3 | 8.3 | 10.3 | 150 |
| 20(16/32) | 12x0.5 | 9.7 | 10.7 | 12.4 | 214 |
| 20(16/32) | 18x0.5 | 11.2 | 12.4 | 14.3 | 298 |
| 20(16/32) | 25x0.5 | 13.7 | 14.9 | 16.8 | 400 |
| 20(16/32) | 30x0.5 | 14.2 | 15.4 | 17.7 | 454 |
| 20(16/32) | 35x0.5 | 15.9 | 17.1 | 19.9 | 585 |
| 20(16/32) | 41x0.5 | 17.5 | 18.7 | 21.5 | 671 |
| 20(16/32) | 50x0.5 | 18.4 | 19.6 | 21.9 | 694 |
| 20(16/32) | 60x0.5 | 20.0 | 21.2 | 24.2 | 895 |
| 18(24/32) | 2x0.75 | 6.1 | 7.1 | 9.0 | 85 |
| 18(24/32) | 3x0.75 | 6.4 | 7.4 | 9.3 | 116 |
| 18(24/32) | 4x0.75 | 6.9 | 7.9 | 9.8 | 133 |
| 18(24/32) | 5x0.75 | 7.6 | 8.6 | 10.5 | 155 |
| 18(24/32) | 7x0.75 | 8.3 | 9.3 | 11.2 | 182 |
| 18(24/32) | 12x0.75 | 10.8 | 11.8 | 13.7 | 266 |
| 18(24/32) | 18x0.75 | 13.1 | 14.3 | 16.2 | 388 |
| 18(24/32) | 25x0.75 | 15.6 | 16.8 | 19.1 | 521 |
| 18(24/32) | 30x0.75 | 16.1 | 17.3 | 19.6 | 572 |
| 18(24/32) | 35x0.75 | 17.9 | 19.1 | 21.4 | 684 |
| 18(24/32) | 50x0.75 | 20.9 | 22.1 | 24.8 | 909 |
| 18(24/32) | 60x0.75 | 22.3 | 23.8 | 26.4 | 1050 |
| 17(32/32) | 2x1.0 | 6.3 | 7.3 | 9.3 | 101 |
| 17(32/32) | 3x1.0 | 6.6 | 7.6 | 9.5 | 126 |
| 17(32/32) | 4x1.0 | 7.2 | 8.2 | 10.1 | 146 |
| 17(32/32) | 5 x 1.0 | 7.9 | 8.9 | 10.8 | 171 |
| 17(32/32) | 7x1.0 | 8.6 | 9.6 | 11.5 | 203 |
| 17(32/32) | 12x1.0 | 11.2 | 12.4 | 14.3 | 314 |
| 17(32/32) | 18x1.0 | 13.6 | 14.8 | 16.7 | 441 |
| 17(32/32) | 25x1.0 | 16.2 | 17.4 | 19.7 | 594 |
| 17(32/32) | 30x1.0 | 16.8 | 18.0 | 20.3 | 658 |
| 17(32/32) | 35x1.0 | 18.6 | 19.8 | 22.1 | 786 |
| 17(32/32) | 50x1.0 | 21.8 | 23.3 | 25.9 | 1070 |
| 17(32/32) | 60x1.0 | 23.6 | 25.1 | 27.7 | 1240 |
| 16(30/30) | 2x1.5 | 6.8 | 7.8 | 9.8 | 114 |
| 16(30/30) | 3x1.5 | 7.2 | 8.2 | 10.1 | 145 |
| 16(30/30) | 4x1.5 | 7.9 | 8.9 | 10.8 | 171 |
| 16(30/30) | 5 x 1.5 | 8.7 | 9.7 | 11.6 | 202 ^ |
| 16(30/30) | 7x1.5 | 9.5 | 10.5 | 12.4 | 242 |
| 16(30/30) | 12x1.5 | 12.8 | 14.0 | 15.9 | 394 |
| 16(30/30) | 18x1.5 | 15.1 | 16.3 | 18.6 | 553 |
| 16(30/30) | 25x1.5 | 18.4 | 19.6 | 21.9 | 746 |
| 16(30/30) | 30x1.5 | 19.1 | 20.3 | 23.0 | 850 |
| 16(30/30) | 35x1.5 | 20.7 | 21.9 | 24.6 | 990 |
| 16(30/30) | 50x1.5 | 24.7 | 26.2 | 29.2 | 1380 |
| 16(30/30) | 60x1.5 | 26.3 | 27.8 | 30.8 | 1570 |
| 14(30/50) | 2x2.5 | 8.0 | 9.0 | 11.0 | 143 |
| 14(30/50) | 3x2.5 | 8.5 | 9.5 | 11.4 | 193 |
| 14(30/50) | 4x2.5 | 9.4 | 10.4 | 12.3 | 232 |
| 14(30/50) | 5 x2.5 | 10.3 | 11.3 | 13.2 | 277 |
| 14(30/50) | 7x2.5 | 11.3 | 12.5 | 14.4 | 353 |
| 14(30/50) | 12x2.5 | 15.3 | 16.5 | 18.8 | 575 |
| 14(30/50) | 18x2.5 | 18.5 | 19.7 | 22.0 | 818 |
| 14(30/50) | 25x2.5 | 22.1 | 23.6 | 26.2 | 1130 |
| 14(30/50) | 30x2.5 | 23.4 | 24.9 | 27.5 | 1290 |
| 14(30/50) | 35x2.5 | 25.3 | 26.8 | 29.8 | 1540 |
| 14(30/50) | 50x2.5 | 29.8 | 31.3 | 34.7 | 2060 |
| 14(30/50) | 60x2.5 | 31.7 | 33.2 | 36.6 | 2350 |
| 12(56 28) | 2x4.0 | 10.8 | 11.8 | 13.8 | 240 |
| 12(56/28) | 3x4.0 | 11.5 | 12.S | 14.8 | 312 |
| 12(56/28) | 4x4.0 | 12.7 | 13.9 | 15.8 | 384 |
| 12(56/28) | 5x4.0 | 14.0 | 15.2 | 17.5 | 478 |
| 12(56/28) | 7x4.0 | 15.3 | 16.5 | 18.S | 587 |
| 10(84/28) | 2x6.0 | 12.2 | 13.4 | 15.4 | 316 |
| 10(84/28) | 3x6.0 | 13.0 | 14.2 | 16.2 | 407 |
| 10(84/28) | 4 x 6.0 | 14.4 | 15.6 | 17.9 | 50S |
| 10(84/28) | 5 x 6.0 | 15.9 | 17.1 | 19.4 | 617 |
| 10(84/28) | 7x6.0 | 17.9 | 19.1 | 21.4 | 789 |
| 8(80/26) | 2x10.0 | 15.3 | 16.5 | 18.9 | 467 |
| 8(80/26) | 3x10.0 | 16.5 | 17.7 | 20.1 | 621 |
| 8(80/26) | 4x10.0 | 18.4 | 19.6 | 21.9 | 779 |
| 8(80/26) | 5x10.0 | 20.4 | 21.6 | 24.3 | 978 |
| 8(80/26) | 7x10.0 | 22.4 | 23.9 | 26.5 | 1250 |
| 6(128/26) | 3x16.0 | 19.7 | 20.S | 23.S | 857 |
| 6(128/26) | 4x16.0 | 21.4 | 22.7 | 25.5 | 1040 |
| 6(128/26) | 5 x 16.0 | 24.1 | 25.4 | 28.6 | 1300 |
| 4(200/26) | 3x25.0 | 21.4 | 22.7 | 25.5 | 1110 |
| 4(200/26) | 4x25.0 | 23.S | 25.1 | 27.2 | 1350 |
| 4(200/26) | 5 x 25.0 | 26.4 | 27.7 | 31.3 | 1740 |
| 4(200/26) | 5x35.0 | - | - | 36 | 31S5 |
