Understanding PVC V90 Cable
1. What is PVC V90 Cable?

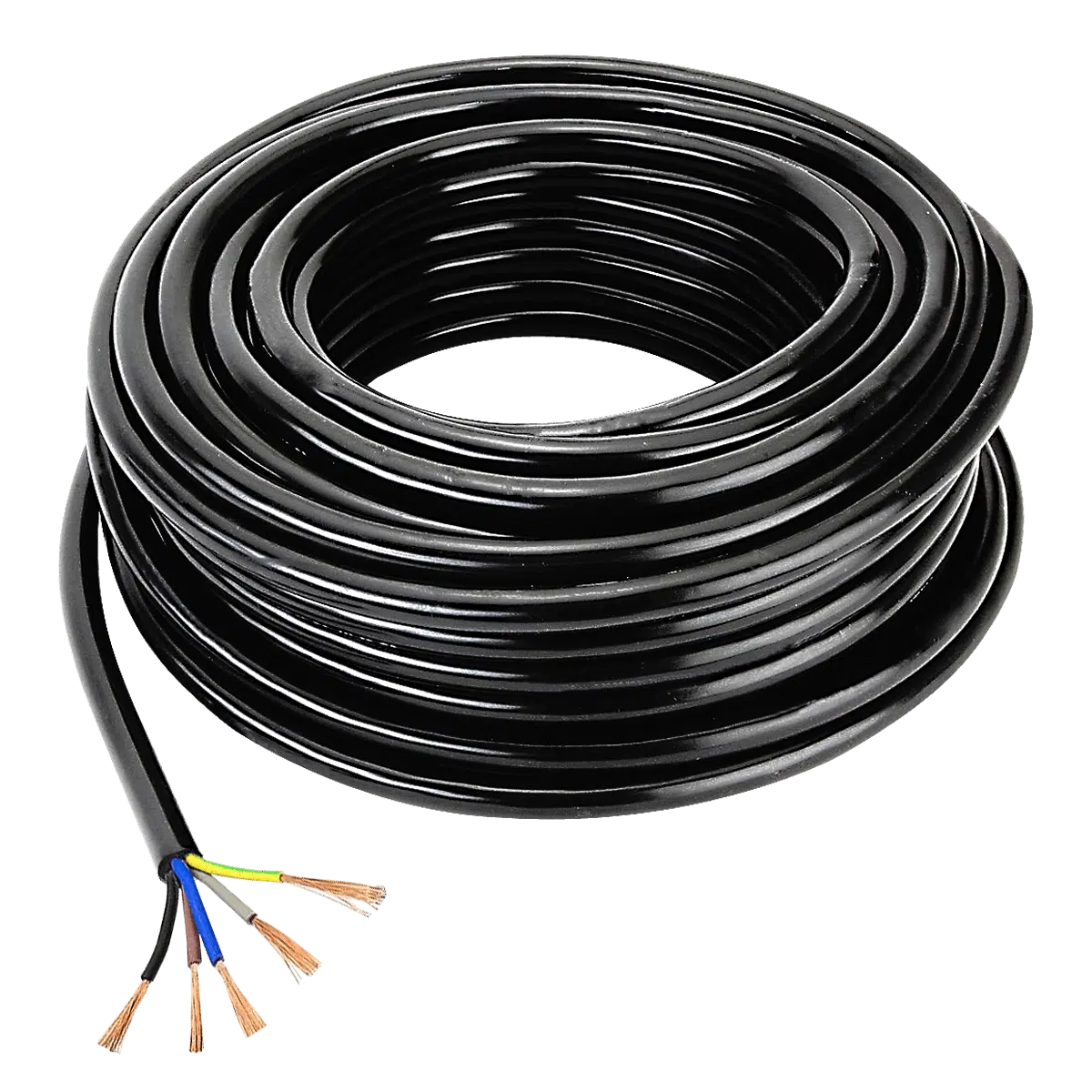

V-90 PVC generally refers to Electric Flexible Cord Cable with V90 Grade PVC insulation and jacket.
This cable is based on the Australian New Zealand Electric Flexible Cords AS/NZS 3191:2008 and AS/NZS 5000.1 standards.
It mainly contains:
- 250/250V (Light-Duty) – For small appliances and office machines.
- 250/440V (Ordinary-Duty) – Suitable for switchboards and control panels.
- 0.6/1kV (Heavy-Duty) – Used in industrial applications where higher voltage and temperature resistance are required.
Flexible Cord Cable: a flexible cable, of which no single conductor exceeds 0.31mm diameter and no wire exceeds a 4mm^2 cross section, and having not more than five cores.
2. Characteristics of PVC V90 Cable
Electrical Performance
- Breakdown Voltage (20℃): 25kV/mm
- Specific Volume Resistivity (20℃): 10¹² – 10¹⁵ Ω·cm
- Dielectric Constant (50Hz, 20℃): 4 – 6.5
- Dielectric Factor: 4×10⁻² to 1×10⁻¹
Thermal Performance
- Operating Temperature: -20°C to 90°C
- Melting Temperature: >140°C
- Flame Resistance: Self-extinguishing
- Halogen-Free: NO
Mechanical Performance
- Tensile Strength: 10 – 25 N/mm²
- Elongation at Break: 130% – 350%
- Shore Hardness: 70 – 95 (A)
- Corrosion Behavior: Medium
Weather
- Weather Resistance: Medium in black
- Cold Resistance: Moderate Good
3. Applications of PVC V90 Cable
-
250/250V (Light-Duty):
Light V90 cables are more often used in small equipment, office machines.
-
250/440V (Ordinary-Duty):
Ordinary V90 cables are suitable for switchboards, Control Panels, and can also be used to power some lamps.
-
0.6/1kV (Heavy-Duty):
Heavy Duty V90 cable is suitable for switchboards Control Panels where installation space is limited. It is also suitable for higher temperature areas (e.g. lighting systems) in industrial production facilities and residential buildings. However, it is not suitable for outdoor use.
4. Conclusion
The high flexibility of the V90 cable with its temperature resistance of 90°C provides a solution for switchboards, Control Panels and lighting systems with limited installation space.
