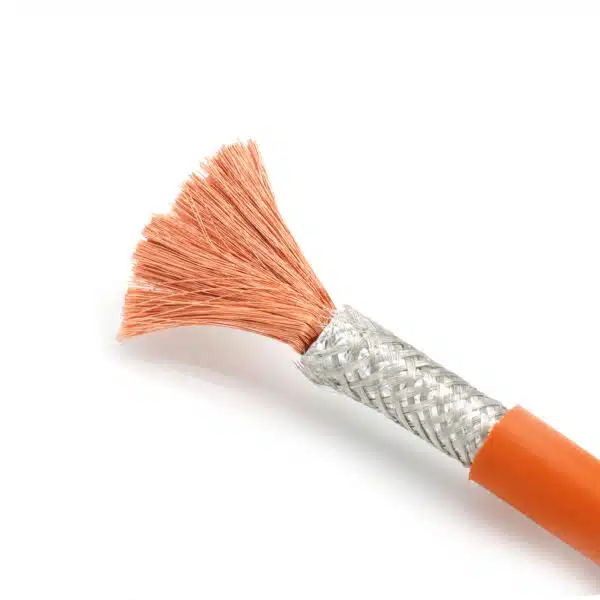

These electric vehicle high voltage shield cables are used in areas such as connecting batteries internally, batteries to engines and other components, and battery storage devices as carriers for power transmission. Due to the harsh environment of in-vehicle applications, electric vehicle high voltage cables have quite high performance requirements.
| NOMINAL CROSS SECTIONAL AREA | Conductor Stranded OD mm ( Ref.) | Max. Conductor resistance mΩ/m@20°C | Permissible capacity A (Ref.) | Over diameter mm (Ref.) |
|---|---|---|---|---|
| 1.5 | 1.60 | 12.7 | 18 | 4.00 |
| 2.5 | 2.06 | 7.60 | 25 | 4.60 |
| 4 | 2.70 | 4.71 | 35 | 5.40 |
| 6 | 3.40 | 3.14 | 45 | 6.40 |
| 10 | 4.50 | 1.82 | 70 | 8.20 |
| 16 | 5.60 | 1.16 | 95 | 9.50 |
| 25 | 7.20 | 0.743 | 130 | 11.50 |
| 35 | 8.30 | 0.527 | 160 | 13.50 |
| 50 | 10.1 | 0.368 | 210 | 15.50 |
| 70 | 12.1 | 0.259 | 260 | 18.00 |
| NOMINAL CROSS SECTIONAL AREA | Conductor Stranded OD mm ( Ref.) | Max. Conductor resistance mΩ/m@20°C | Permissible capacity A (Ref.) | Over diameter mm (Ref.) |
|---|---|---|---|---|
| 10 | 4.5 | 1.82 | 70 | 9.4 |
| 16 | 5.6 | 1.16 | 95 | 113 |
| 25 | 7.2 | 0.743 | 130 | 13.5 |
| 35 | 8.3 | 0.527 | 160 | 14.5 |
| 50 | 10.1 | 0.368 | 210 | 17 |
| 70 | 12.1 | 0.259 | 260 | 19 |
| 95 | 14.5 | 0.196 | 320 | 21.6 |
| 120 | 15.9 | 0.153 | 370 | 23 |
