H1Z2Z2-K

Solar Cable H1Z2Z2-K is designed acc. to the standard EN50618 which is widely acceptable in European countries. These cables are a good choice for the outdoor solar panel connection. Normal voltage AC:1000V DC:1500V. Cable Size 4mm2 6mm2.  XLPO insulation and jacket are resistant to sunlight and bad weather which can keep this cable service time reach 25 years.

Standard and Approvals

EN 50618 H1Z2Z2-K
Weather and UV resistant acc.to EN60811-501, EN50289-4-17
Halogen-free acc. to EN 50267-2-1 IEC670754-1
Resistant to acid and bases acc. to EN60811-2-1
Flame-resistant acc. to VDE 0482-332-1-2 DIN EN 60332-1-2
O-zone resistance acc. to: EN50396
Smoke density: IEC61034, EN50268-2
Damp heat test acc. to EN60068-2-78

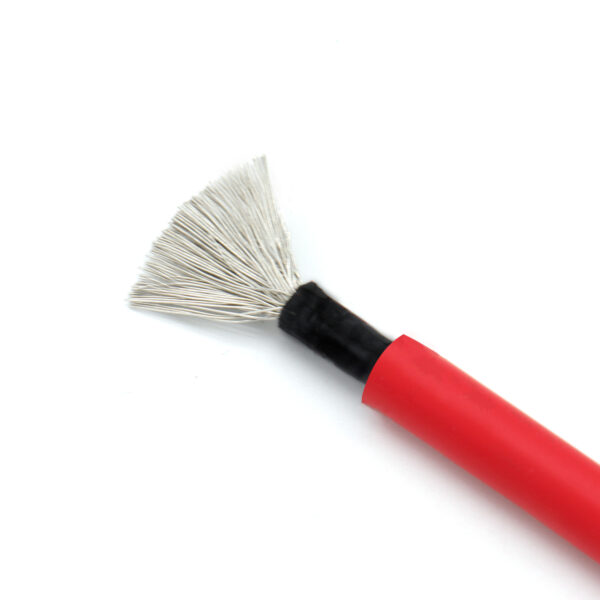

Cable Structure:

Conductor: Tinned copper
Insulation: Cross-linked polyolefin
Jacket: Cross-linked polyolefin

Technical data:

Resistant to short-circuits up to 200°C
Hydrolysis and ammoniac-resistant
Voltage Rating Uo/U
AC: 1000/1000V
DC: 1500/1500V
Maximum Voltage (Umax): 1800V
Test Voltage: 6.5kV AC
Temperature Rating Fixed: -40° C to +90° C
Minimum Bending Radius: 4 x overall diameter
Maximum Conductor Temperature: +120° C (for 20000h)
The Expected Service Life: 25 years
Cross section (mm2)Conductor construction (No./mm)Conductor Stranded OD.max (mm)Cable OD. (mm)Max Cond Resistance ohms/km AT 20°CCurrent carrying Capacity AT 60° C (A)
1.530/0.251.55.413.730
2.549/0.251.95.98.2141
4.056/0.32.46.65.0955
6.084/0.32.97.23.3970
10320/0.23.78.31.9598
16512/0.24.69.81.24132
25800/0.25.712.20.795176
351120/0.26.714.00.565218
50705/0.37.816.30.393276
70990/0.39.418.70.277347
951340/0.311.020.80.21410
1201690/0.312.423.00.164480
