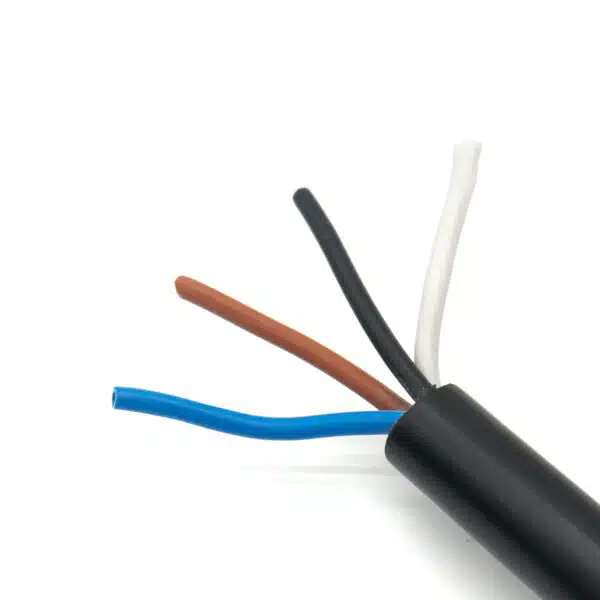

KMCABLE SJOOW Cable 12/3 14/3 12/4 sjo cord Cable, 300V water resistance rubber cable for submersible pump, cranes, where water immersion is required
UL Flexible Cord – UL 62, RoHS
| NO. OF COND. | AWG SIZE | COND. STRAND | NOMINAL INS. THICKNESS | NOMINAL O.D. | CURRENT AMPS | APPROX. NET WT. LBS/M | ||
|---|---|---|---|---|---|---|---|---|
| INCHES | mm | INCHES | mm | |||||
| 2 | 18 | 41/34 | 0.030 | 0.76 | 0.310 | 8.00 | 10 | 56 |
| 3 | 18 | 41/34 | 0.030 | 0.76 | 0.320 | 8.12 | 10 | 65 |
| 4 | 18 | 41/34 | 0.030 | 0.76 | 0.345 | 8.76 | 7 | 80 |
| 2 | 16 | 65/34 | 0.030 | 0.76 | 0.315 | 8.00 | 13 | 68 |
| 3 | 16 | 65/34 | 0.030 | 0.76 | 0.335 | 8.51 | 13 | 80 |
| 4 | 16 | 65/34 | 0.030 | 0.76 | 0.370 | 9.40 | 10 | 95 |
| 2 | 14 | 41/30 | 0.030 | 0.76 | 0.370 | 9.40 | 18 | 90 |
| 3 | 14 | 41/30 | 0.030 | 0.76 | 0.375 | 9.52 | 18 | 110 |
| 4 | 14 | 41/30 | 0.030 | 0.76 | 0.405 | 10.29 | 15 | 130 |
