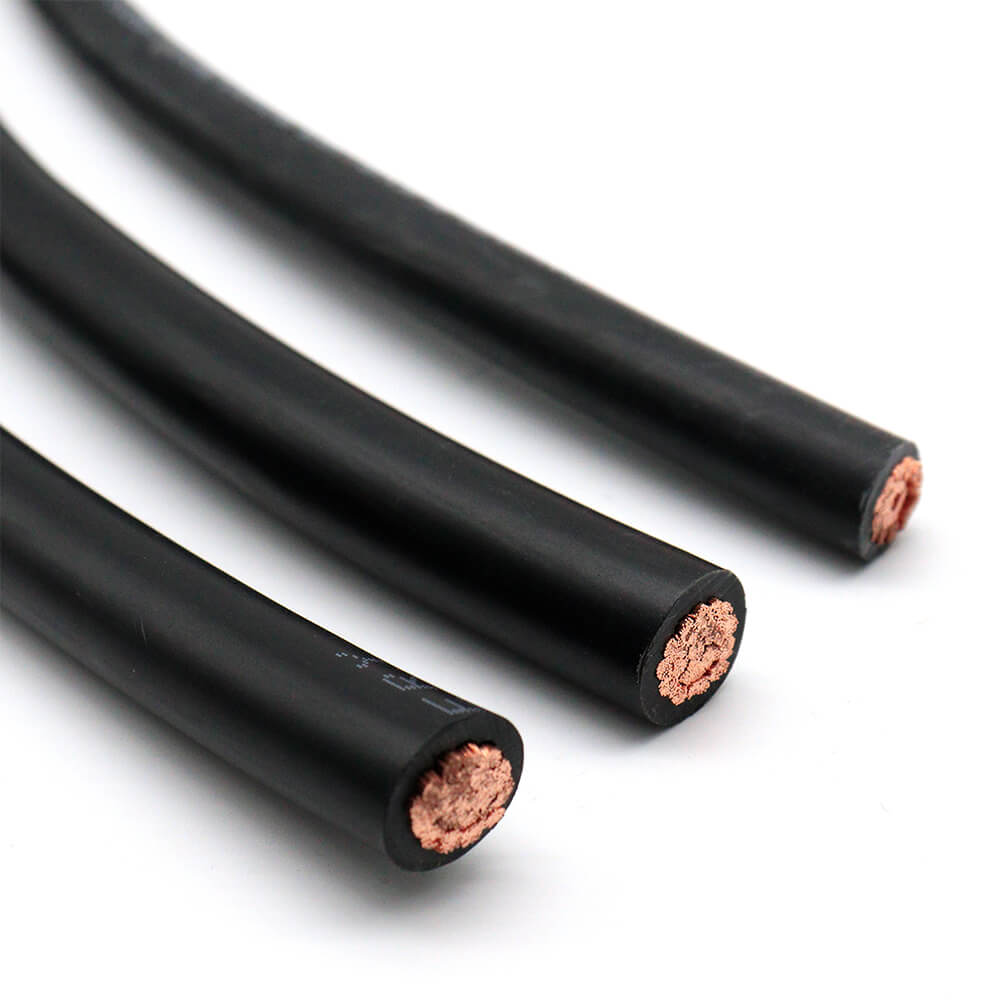

EPDM heavy duty rubber cable. This cable is suitable for outdoor use in mobile situations. The EPDM sheath makes it extremely flexible. It is temperature resistant up to 105°C. Common sizes include 4/0, 2/0, 1/0, 2awg 4awg, etc.
SAE J1127
RoHS
– Operating voltage: 600V
– Flexible bending radius: 6 x Ø
– Fixed bending radius: 6 x Ø
– Temperature Rate: -50º C to +105º C (-58℉ to +221℉)
–Extra Flexible during the low temperature
– Chemical, Grease, Oil, and acid resistance
– Friction-resistant, drag-resistant
– Ideal for outdoor use
– Welding machine
– DC power supply for the outdoors
– Photovoltaic inverter, Solar Battery connection
| AWG | NOMINAL CROSS- SECTION MM² | NOMINAL WALL THICKNESS mm | OVERALL DIAMETER (MAX..) mm | WEIGHT APPROX KG/KM |
|---|---|---|---|---|
| 6 | 1x13 | 1.52 | 8.6 | 166 |
| 4 | 1x19 | 1.65 | 10.5 | 257 |
| 2 | 1x32 | 1.65 | 12.00 | 373 |
| 1 | 1x40 | 1.65 | 13.00 | 453 |
| 1/0 | 1x50 | 1.65 | 14.50 | 545 |
| 2/0 | 1x62 | 1.65 | 16.00 | 653 |
| 3/0 | 1x81 | 1.98 | 18.50 | 847 |
| 4/0 | 1x103 | 1.98 | 20.00 | 1052 |
