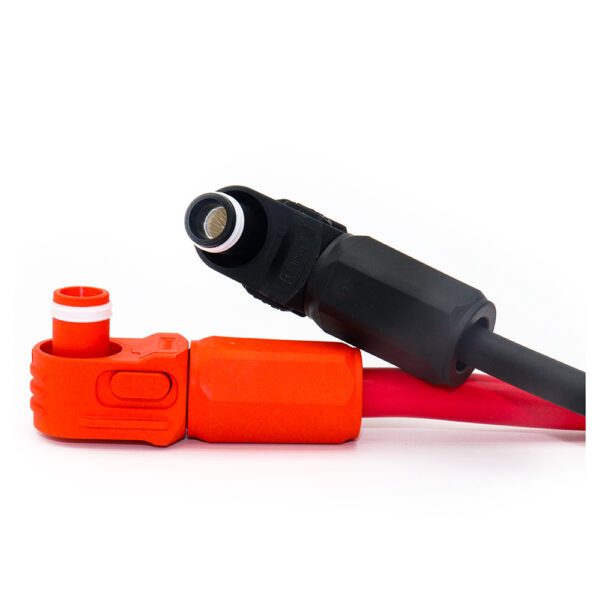

HV Battery Storage Cable

This cable is equipped with high voltage storage connectors. It’s a good solution for battery connection systems for modern ESS. The cable size ranges from 25mm2 to 95mm2.  This cable is water and temperature resistant and can carry up to 300A.

Standard and Approvals

LV 216-1 table A.1, VW N 108 558, DIN EN 13602,
IEC 60227

Cable Structure:

Conductor: Class 6 fine flexible stranded Copper
Insulation: SiR (Silicon rubber)
Sheath Colour: Orange

Technical data:

Voltage Rating: 0.6/1kV
Operating temperature: -40ºC to +200ºC 3000 (hours)
Minimum Bending Radius :
Static installation: 2 x overall diameter
Dynamic Installation: 4 x overall diameter
