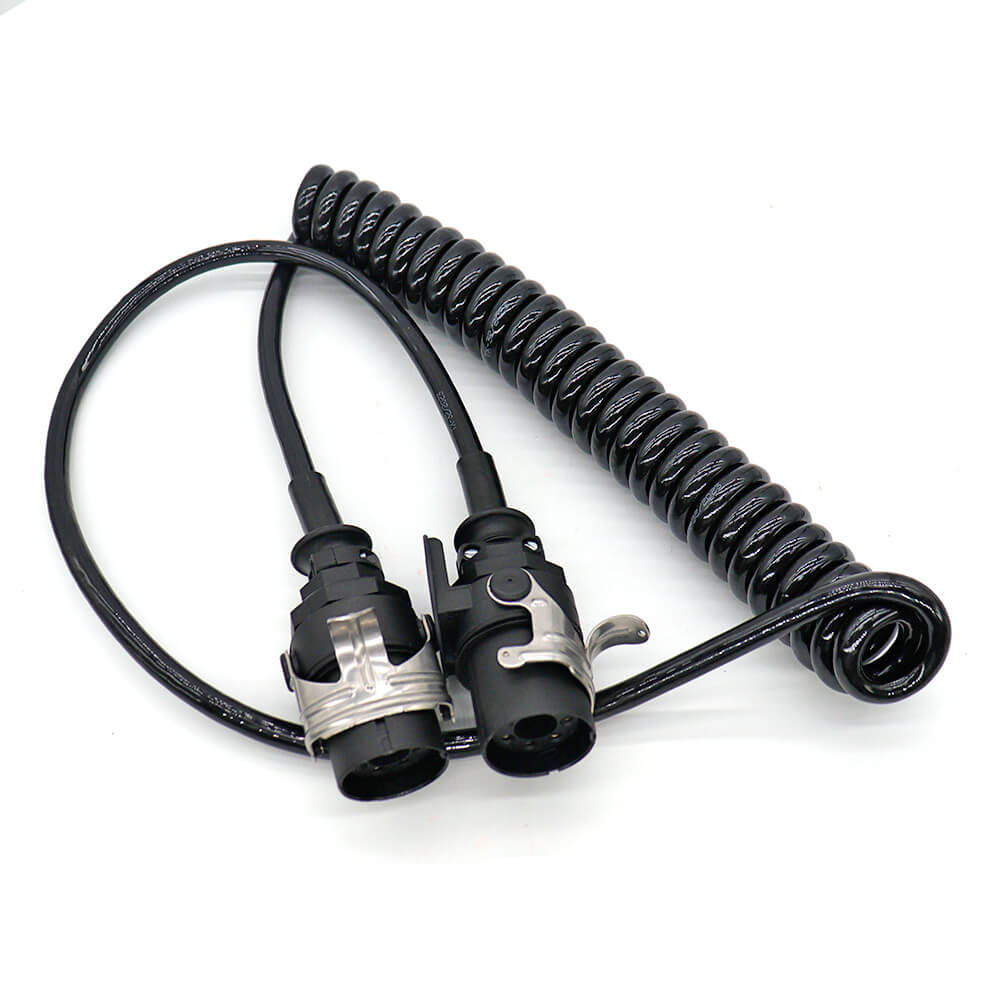

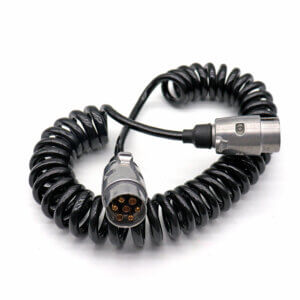

This 7 pin 12v coil trailer cable is based on ISO 7638-2 with reinforced composite housing plug is suitable for nearly every commercial vehicle type with ABS/EBS system.
size: 5x 1.5mm²+ 5x 4mm²
Conductor Material: Bare Copper
Insulation: TPE
Sheath: PUR
Working Length: Up to 4.5m
Feature: Water Proof, high rebound
Rated Voltage: 12V
No of Pin: 7 Pin
Housing Material: Reinforced Composite or metal
Housing Color: Black or Silver
Contact surface: CuZn
Contact termination: Screw Contact
| Function | Cross-section Area | Core Insulation Color |
| Plus electrovalve | 4 mm² or 6 mm² | Red |
| Plus electronics | 1.5 mm² | Black |
| Minus Electronics | 1.5 mm² | Yellow |
| Minus electrovalve | 4 mm² or 6 mm² | Brown |
| Warning device | 1.5 mm² | White |
| CAN-H | 1.5 mm² | White/green |
| CAN-L | 1.5 mm² | White/brown |
The ABS/EBS trailer coil based on ISO 7638-2 which is suitable for almost every commercial vehicle with an ABS/EBS system.
These cables can meet the high requirements of modern commercial vehicles and can be used in harsh environments.
