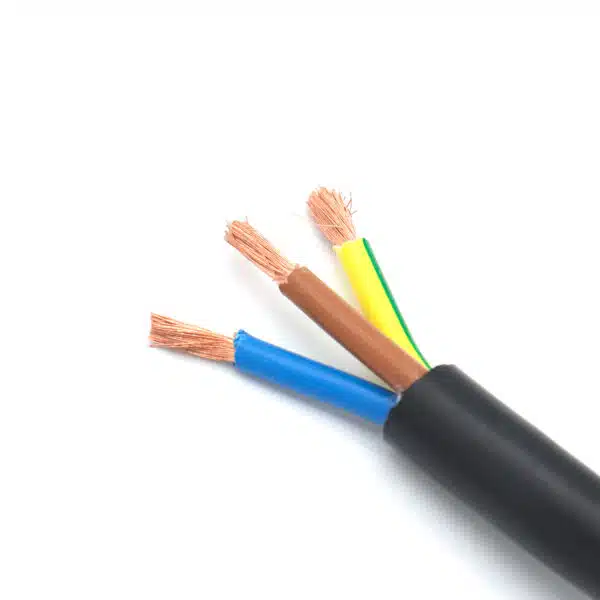

RVV cable is a type of Chinese standard multi-core electrical power cable. The full name is Copper Core PVC Insulated PVC. This cables can be used to Electrical appliances, instrumentation, electronic equipment, and industrial installations.
| Nominal Cross Section mm2 | NOMINAL THICKNESS OF INSULATION MM | Nominal Overall Diameter mm | Nominal Weight kg/km |
|---|---|---|---|
| 2x0.75 | 0.6 | 6.4 | 57 |
| 3x0.75 | 0.6 | 6.8 | 68 |
| 4x0.75 | 0.6 | 7.4 | 84 |
| 5x0.75 | 0.6 | 8.5 | 106 |
| 2x1 | 0.6 | 6.8 | 65 |
| 3x1 | 0.6 | 7.2 | 79 |
| 4x1 | 0.6 | 8 | 123 |
| 5x1 | 0.6 | 8.8 | 87 |
| 3x1.5 | 0.7 | 7.6 | 115 |
| 3x1.5 | 0.7 | 8.2 | 111 |
| 4x1.5 | 0.7 | 9.2 | 142 |
| 5x1.5 | 0.7 | 10.5 | 176 |
| 2x2.5 | 0.8 | 9.2 | 134 |
| 3x2.5 | 0.8 | 10.1 | 169 |
| 4x2.5 | 0.8 | 11.2 | 211 |
| 5x2.5 | 0.8 | 12.4 | 262 |
| 3x4 | 0.8 | 11.3 | 233 |
| 4x4 | 0.8 | 12.5 | 292 |
| 5x4 | 0.8 | 13.7 | 369 |
| 3x6 | 0.8 | 13.1 | 328 |
| 4x6 | 0.8 | 13.9 | 490 |
