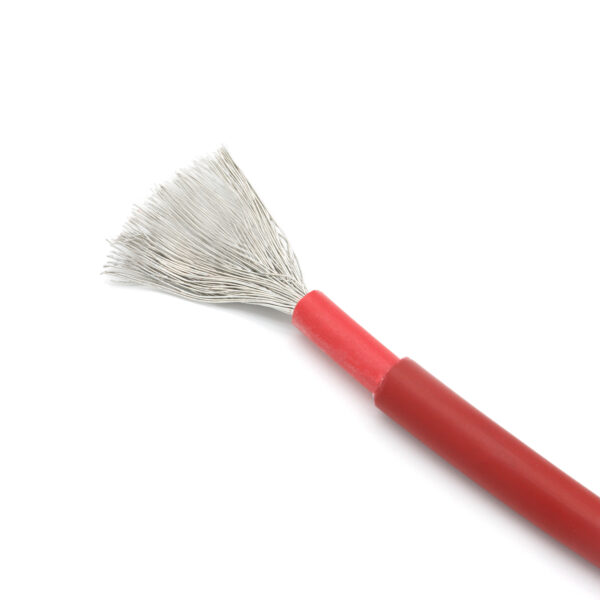

These type PV cables meet the lated standards as introduced in NEC Article 690. Applications include connection to module junction boxes; required cable routing in balance of system (BOS) integration and where also allowed by the NEC.
Nominal voltage: 2000V AC
Voltage test on completed cable:3.0kV AC,1min
Ambient temperature:-40° C up to +90° C
Max.Temperature at conductor:+120° C
The Expected Service Life: 25 years
The permitted short-circuit-temperature refer to a period of 5s is+200° C
Minimum Bending Radius: 8 x overall diameter
| Cross section (AWG) | Conductor construction (No./mm) | Conductor Stranded OD.max (mm) | Cable OD (mm) | Max Cond Resistance ohms/km | Current carring Capacity AT 60° C (A) |
|---|---|---|---|---|---|
| 18 | 19/0.254 | 1.024 | 5.461 | 23.0 | 25 |
| 16 | 19/0.287 | 1.29 | 5.766 | 14.70 | 30 |
| 14 | 19/0.361 | 1.63 | 6.172 | 8.79 | 35 |
| 12 | 19/0.455 | 2.05 | 6.477 | 5.41 | 40 |
| 10 | 37/0.404 | 2.59 | 7.315 | 3.54 | 55 |
| 8 | 49/0.455 | 3.26 | 9.246 | 2.36 | 80 |
