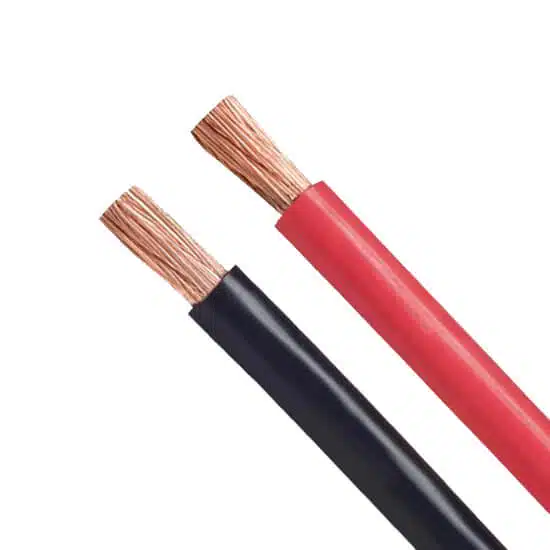

This PVC insulated single-core cable is used for automotive starters or battery grounds.
SAE J1127
Conductor:Soft copper flexible conductor
Insulation:PVC
Operating temperature:–40 °C to +80 °C
| AWG | NOMINAL CROSS- SECTION MM² | NOMINAL WALL THICKNESS mm | OVERALL DIAMETER (MAX..) mm | WEIGHT APPROX KG/KM |
|---|---|---|---|---|
| 6 | 1 x 13.48 | 1.52 | 6.58 | 152 |
| 4 | 1 x 21.28 | 1.65 | 9.40 | 243 |
| 2 | 1 x 33.70 | 1.65 | 11.26 | 368 |
| 1 | 1 x 42.36 | 1.65 | 12.45 | 454 |
| 1/0 | 1 x 53.91 | 1.65 | 13.78 | 568 |
| 2/0 | 1 x 67.04 | 1.65 | 15.15 | 697 |
| 3/0 | 1 x 84.42 | 1.98 | 17.30 | 886 |
| 4/0 | 1 x 106.76 | 1.98 | 19.17 | 1105 |
Or contact us to see our certificates
