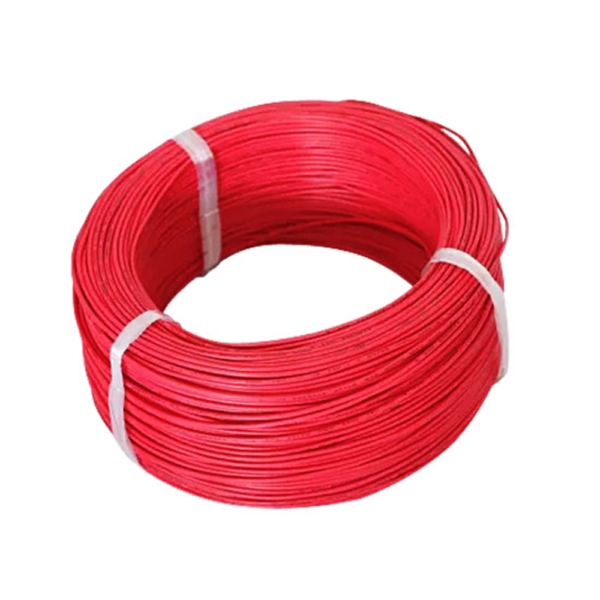

This PVC insulated automotive cable FLYK is used for cars, trucks and other vehicles. It has a good cold resistance. Rate temperature: –50° C to +105° C
ISO 6722 Class B
| NOMINAL CROSS- SECTION MM2 | ELECTRICAL RESISTANCE AT 20°C MAX. MΩ/M | NOMINAL THICKNESS MM | OVERALL DIAMETER MAX. MM | WEIGHT APPROX. KG/KM |
|---|---|---|---|---|
| 1*0.5 | 37.7 | 0.6 | 2.3 | 9 |
| 1*0.75 | 25.1 | 0.6 | 2.5 | 12 |
| 1*1 | 18.8 | 0.6 | 2.7 | 15 |
| 1*1.5 | 12.7 | 0.6 | 3 | 20 |
| 1*2.5 | 7.54 | 0.7 | 3.9 | 32 |
| 1*4 | 4.71 | 0.8 | 4.9 | 53 |
| 1*4.5 | 12.7 | 0.6 | 3 | 23 |
| 1*6 | 3.14 | 0.8 | 6 | 76 |
| 1*10 | 1.85 | 1.0 | 7.3 | 124 |
| 1*16 | 1.16 | 1.0 | 8.8 | 198 |
| 1*25 | 0.74 | 1.2 | 10.2 | 298 |
