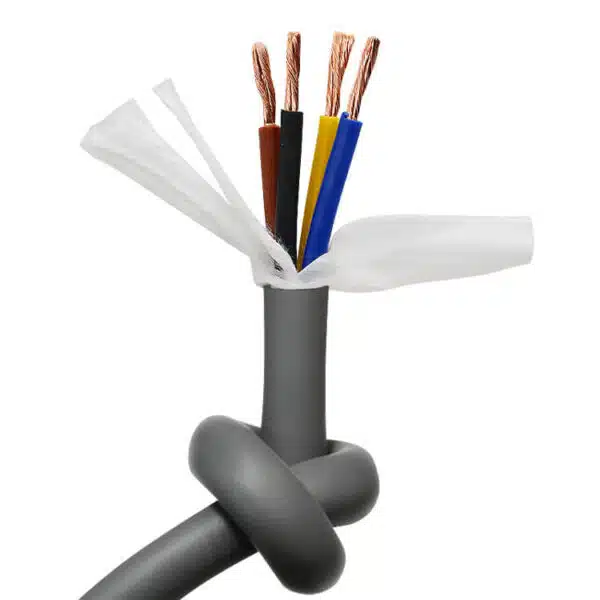

TRVV cables comply with Chinese standards GB/T 5023.5 and JB/T 8734.2.This model has an extra 0.1 or 0.2 inch conductor with a special PVC sheath to enhance its flexibility for drag chain applications.
‘T’ stands for drag chain, “R” stands for flexible conductor, and ‘V’ stands for PVC insulation and jacket.
GB/T 5023.5 JB/T 8734.2
CCC Approval
– Operating voltage: 300/500V
– Flexible bending radius: 4 x Ø
– Fixed bending radius: 4 x Ø
– Temperature Rate: -40º C to +105º C
Resistance to bending, twisting, bending, shallow water, oil, UV, weathering, cold, good abrasion resistance,.
Withstand heavy external forces, strong bending forces, and new installations under the reciprocating movement, especially in industrial environments where bending is frequent.
– Industrial electronic systems
– automatic power generation lines
– automatic equipment
– robots
– robot arms
– fire control systems
– CNC machines
– engraving machines
– laser machines
– crane towing systems and metallurgical industry
| NO of Core | Cross Sectional Area （mm^2） | Rated Voltage | Overall Daimeter (mm) | Conductor Structure | Weight (kg/km) | Current |
|---|---|---|---|---|---|---|
| 2 Core | 0.3 | 300/500V | 4.6 | 40/0.10 | 26 | 6 |
| 0.5 | 300/500V | 5.2 | 70/0.10 | 34 | 8 | |
| 0. 75 | 300/500V | 5.5 | 98/0.10 | 40 | 10 | |
| 1 | 300/500V | 6 | 133/0.10 | 48 | 12 | |
| 1.5 | 300/500V | 7.2 | 193/0.10 | 71 | 16 | |
| 2.5 | 300/500V | 8.7 | 280/0.10 | 103 | 22 | |
| 4 | 300/500V | 9 | 322/0.10 | 13 | 30 | |
| 3 Core | 0.3 | 300/500V | 8.9 | 40/0.10 | 31 | 5 |
| 0.5 | 300/500V | 9.5 | 70/0.10 | 41 | 7 | |
| 0. 75 | 300/500V | 5.8 | 98/0.10 | 50 | 9 | |
| 1 | 300/500V | 6.3 | 133/0.10 | 61 | 11 | |
| 1.5 | 300/500V | 7.6 | 193/0.10 | 90 | 15 | |
| 2.5 | 300/500V | 9.2 | 280/0.10 | 131 | 21 | |
| 4 | 300/500V | 9.5 | 322/0.10 | 144 | 29 | |
| 4 Core | 0.3 | 300/500V | 5.2 | 40/0.10 | 37 | 4 |
| 0.5 | 300/500V | 5.9 | 70/0.10 | 51 | 6 | |
| 0. 75 | 300/500V | 6.7 | 98/0.10 | 69 | 8 | |
| 1 | 300/500V | 7.2 | 133/0.10 | 83 | 10 | |
| 1.5 | 300/500V | 8.6 | 193/0.10 | 119 | 14 | |
| 2.5 | 300/500V | 10 | 280/0.10 | 164 | 20 | |
| 4 | 300/500V | 10.4 | 322/0.10 | 181 | 28 |
| NO of Core | Cross Sectional Area （mm^2） | Rated Voltage | Overall Daimeter (mm) | Conductor Structure | Weight (kg/km) | Current |
|---|---|---|---|---|---|---|
| 5 Core | 0.3 | 300/500V | 5.6 | 40/0.10 | 43 | 4 |
| 0.5 | 300/500V | 6.7 | 70/0.10 | 66 | 6 | |
| 0. 75 | 300/500V | 7.3 | 98/0.10 | 81 | 8 | |
| 1 | 300/500V | 7.8 | 133/0.10 | 98 | 10 | |
| 1.5 | 300/500V | 9.4 | 193/0.10 | 143 | 14 | |
| 2.5 | 300/500V | 10.9 | 280/0.10 | 197 | 20 | |
| 4 | 300/500V | 11.4 | 322/0.10 | 218 | 28 | |
| 6 Core | 0.3 | 300/500V | 6.4 | 40/0.10 | 56 | 3 |
| 0.5 | 300/500V | 7.2 | 70/0.10 | 76 | 5 | |
| 0. 75 | 300/500V | 8.2 | 98/0.10 | 101 | 7 | |
| 1 | 300/500V | 8.8 | 133/0.10 | 123 | 9 | |
| 1.5 | 300/500V | 10.2 | 193/0.10 | 168 | 13 | |
| 2.5 | 300/500V | 11.9 | 280/0.10 | 233 | 19 | |
| 4 | 300/500V | 12.4 | 322/0.10 | 258 | 27 | |
| 7 Core | 0.3 | 300/500V | 6.9 | 40/0.10 | 64 | 3 |
| 0.5 | 300/500V | 8.2 | 70/0.10 | 94 | 5 | |
| 0. 75 | 300/500V | 8.9 | 98/0.10 | 116 | 7 | |
| 1 | 300/500V | 9.6 | 133/0.10 | 142 | 9 | |
| 1.5 | 300/500V | 11. 1 | 193/0.10 | 194 | 13 | |
| 2.5 | 300/500V | 13 | 280/0.10 | 270 | 19 | |
| 4 | 300/500V | 13.6 | 322/0.10 | 300 | 27 |
| NO of Core | Cross Sectional Area （mm^2） | Rated Voltage | Overall Daimeter (mm) | Conductor Structure | Weight (kg/km) | Current |
|---|---|---|---|---|---|---|
| 8 Core | 0.3 | 300/500V | 7.4 | 40/0.10 | 71 | 3 |
| 0.5 | 300/500V | 8.7 | 70/0.10 | 106 | 5 | |
| 0. 75 | 300/500V | 9.5 | 98/0.10 | 131 | 7 | |
| 1 | 300/500V | 10.3 | 133/0.10 | 160 | 9 | |
| 1.5 | 300/500V | 11.9 | 193/0.10 | 221 | 13 | |
| 2.5 | 300/500V | 14 | 280/0.10 | 308 | 19 | |
| 4 | 300/500V | 14.6 | 322/0.10 | 342 | 27 | |
| 9 Core | 0.3 | 300/500V | 8.2 | 40/0.10 | 86 | 3 |
| 0.5 | 300/500V | 9.3 | 70/0.10 | 118 | 5 | |
| 0. 75 | 300/500V | 10.2 | 98/0.10 | 146 | 7 | |
| 1 | 300/500V | 11 | 133/0.10 | 180 | 9 | |
| 1.5 | 300/500V | 12.8 | 193/0.10 | 248 | 13 | |
| 2.5 | 300/500V | 15. 1 | 280/0.10 | 347 | 19 | |
| 4 | 300/500V | 15.8 | 322/0.10 | 385 | 27 | |
| 10 Core | 0.3 | 300/500V | 8.8 | 40/0.10 | 96 | 3 |
| 0.5 | 300/500V | 10 | 70/0.10 | 132 | 5 | |
| 0. 75 | 300/500V | 11 | 98/0.10 | 163 | 7 | |
| 1 | 300/500V | 11.9 | 133/0.10 | 201 | 9 |
