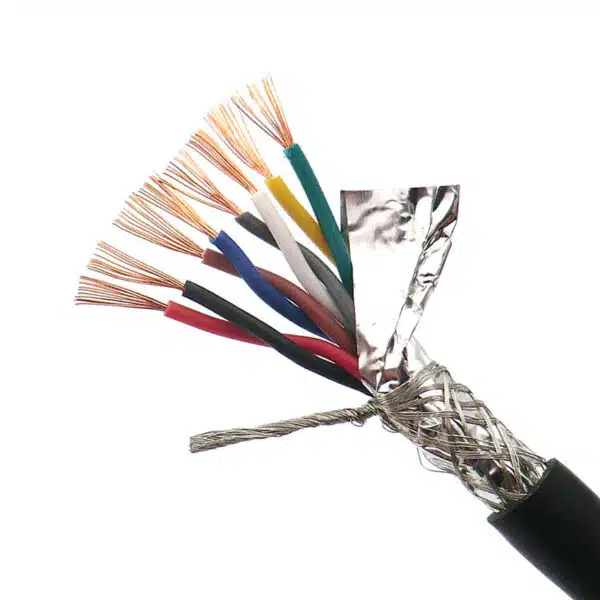

This UL2464 Multi-pair aluminum foil shielded cable has good EMC performance due to the conductors are twisted and protected by an aluminum foil shield. It is very suitable for computer, industrial equipment, data transmission, control signal transmission, RS232 system.
Nominal Voltage: 300V UL2464
Test Voltage: 1500V
Break down Voltage: Min. 3000V
Temperature Range: Flexible -10°C to +80°C.
Fixed installation -20°C to + 80°C
Minimum Bending Radius: Flexing approx. 15x cable ø
| NO. OF PAIRS | AWG SIZE | COND. STRAND | NOM. INSULATION THICKNESS | NOM. JACKET THICKNESS | NOMINAL O.D. | |||
|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | |||
| 1 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.160 | 4.06 |
| 1 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.160 | 4.06 |
| 1 | 24 | 7/32 | 0.011 | 0.28 | 0.030 | 0.76 | 0.160 | 4.06 |
| 2 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.214 | 5.44 |
| 3 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.225 | 5.72 |
| 4 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.245 | 6.22 |
| 5 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.275 | 6.99 |
| 6 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.300 | 7.62 |
| 7 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.300 | 7.62 |
| 8 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.320 | 8.13 |
| 9 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.345 | 8.76 |
| 10 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.375 | 9.53 |
| 15 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.428 | 10.87 |
| 19 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.450 | 11.43 |
| 25 | 24 | 7/32 | 0.011 | 0.28 | 0.032 | 0.81 | 0.530 | 13.46 |
| 1 | 22 | 7/30 | 0.011 | 0.28 | 0.032 | 0.81 | 0.169 | 4.29 |
| 2 | 22 | 7/30 | 0.011 | 0.28 | 0.032 | 0.81 | 0.234 | 5.94 |
| 3 | 22 | 7/30 | 0.011 | 0.28 | 0.032 | 0.81 | 0.246 | 6.25 |
| 4 | 22 | 7/30 | 0.011 | 0.28 | 0.032 | 0.81 | 0.269 | 6.83 |
| 5 | 22 | 7/30 | 0.011 | 0.28 | 0.032 | 0.81 | 0.294 | 7.47 |
| 6 | 22 | 7/30 | 0.011 | 0.28 | 0.032 | 0.81 | 0.320 | 8.13 |
| 9 | 22 | 7/30 | 0.011 | 0.28 | 0.032 | 0.81 | 0.367 | 9.32 |
| 15 | 22 | 7/30 | 0.011 | 0.28 | 0.032 | 0.81 | 0.457 | 11.61 |
