What does RVSP Cable mean?
RVSP cable is a shielded twisted pair cable in Chinese standard. Its full name is pure copper PVC insulated PVC sheathed twisted shielded flexible cable. The letter in RVSP represents a key feature of the cable:
- Letter R: Stands for “soft conductor,” indicating a flexible wire.
- Letter V: Stands for “insulator,” made of polyvinyl chloride (PVC).
- Letter S: Stands for “twisted,” twisted core wire
- Letter P: Stands for “Shield,” made of copper
The full name of RVSP cable is: PVC Insulated, PVC Sheathed, Twisted-Pair, Shielded Flexible Copper Cable.
The twisted core construction reduces crosstalk within the cable.
The copper braid shielding protects against electrical and electromagnetic interference.
Characteristics of RVSP Cable

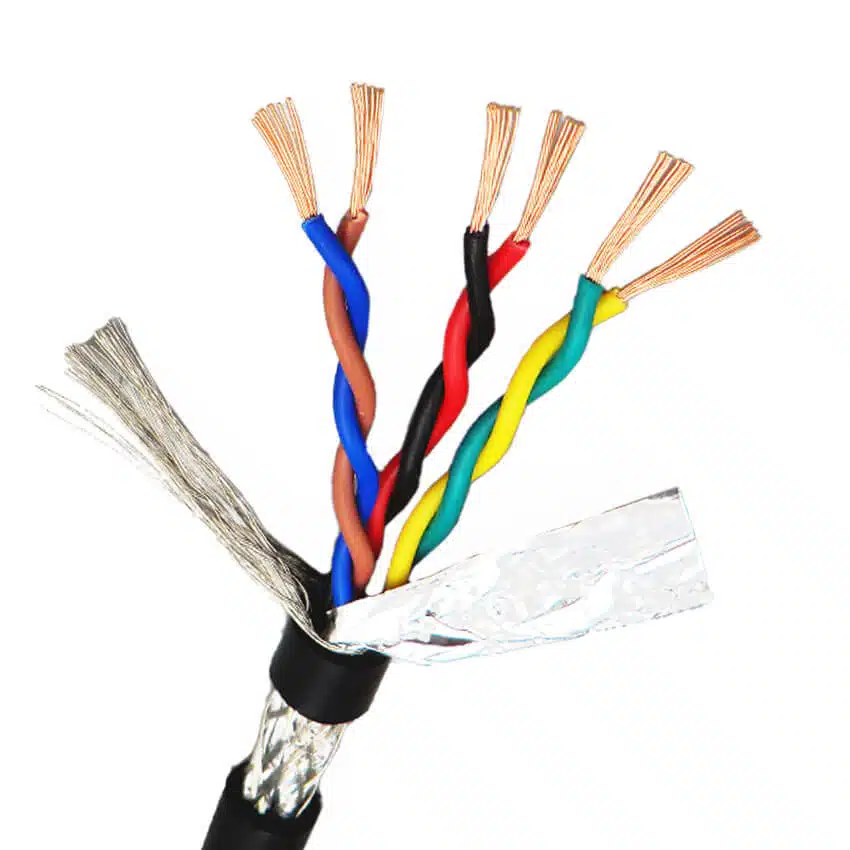

RVSP cable is composed of the following parts:
- PVC Sheath: Provides protection and durability.
- Flame Retardant: Helps prevent fire hazards.
- Rated Temperature: -40º C to +80º C.
- Copper and Aluminum Foil Shield: Prevents electromagnetic interference (EMC).
- Twisted Core Wire: Reduces crosstalk within the cable.
But please note that this kind of cable is NOT LSZH Cable. If you are looking for LSZH cables, please try to find WDZ-RVSP type cable.
RVSP Cable Specifications Table
| Specification | Max. Conductor Dia. (mm) | Insulation Thickness (mm) | Max. Insulated Core Dia. (mm) | Shield Wire Dia. (mm) | Sheath Thickness (mm) | Finished Cable OD (mm) | Max. Conductor Resistance (Ω/km) | Min. Insulation Resistance (MΩ·km) |
|---|---|---|---|---|---|---|---|---|
| 2×2×0.12 | 0.16 | 0.4 | 1.5 | 0.15 | 0.8 | 5.1 ~ 8.2 | 167 (Cu) / 173 (Tinned) | 0.016 |
| 2×2×0.2 | 0.16 | 0.4 | 1.6 | 0.15 | 0.8 | 5.5 ~ 8.9 | 97.8 / 101 | 0.013 |
| 2×2×0.3 | 0.16 | 0.5 | 2.0 | 0.15 | 0.8 | 6.3 ~ 10.2 | 73.4 / 75.8 | 0.012 |
| 2×2×0.4 | 0.16 | 0.5 | 2.1 | 0.15 | 0.8 | 6.5 ~ 10.6 | 51.1 / 52.2 | 0.012 |
| 2×2×0.5 | 0.21 | 0.5 | 2.3 | 0.15 | 0.8 | 7.1 ~ 11.3 | 41.4 / 42.5 | 0.012 |
| 2×2×0.75 | 0.26 | 0.6 | 2.6 | 0.20 | 0.9 | 8.3 ~ 13.2 | 26.4 / 28.0 | 0.010 |
| 2×2×1.0 | 0.26 | 0.6 | 2.8 | 0.20 | 1.0 | 9.1 ~ 14.2 | 19.5 / 20.0 | 0.009 |
| 2×2×1.5 | 0.26 | 0.6 | 3.1 | 0.20 | 1.0 | 10.2 ~ 15.4 | 13.3 / 14.0 | 0.009 |
| 2×2×2.5 | 0.26 | 0.7 | 3.9 | 0.20 | 1.1 | 11.8 ~ 18.9 | 8.47 / 8.7 | 0.008 |
RVSP Cable Configurations
RVSP cables are widely used in China’s Signal and control systems, RS485 System, fire alarm systems.
The number of pairs can vary, with 2-pair, 3-pair, and 4-pair
-
2 pairs (2×2)
-
3 pairs (3×2)
-
4 pairs (4×2)
The number of twisted core wire can also vary, 2 wire twisted, 3 wire twisted
-
2 wire twisted 2 pair (2×2)
-
2 wire twisted 3 pair (3×2)
Example: RVSP 2×2×0.5mm refers to every 2 core wires twisted, a total of 2 pairs of twisted core wire, each core size is 0.5 square. PVC insulated, PVC jacketed, copper braided shield.
Applications of RVSP Cable
- Commonly used as a machine interface in many applications for data and signal transmission in the low frequency range.
- Suitable for use in computer systems, electronic control and regulation devices, office machines, electronic scales, etc.
- For fixed laying.
- Can be used in dry or damp spaces.
- Suitable for light mechanical stress.
- PVC outer sheath is slightly oil resistant.
Reliable RVSP Cable Manufacturer: KMCABLE
Feel free to visit the following two blogs to learn more about RVV RVVP cables.
RVV: https://kmcablegroup.com/news/what-does-rvv-cable-mean/
RVVP: https://kmcablegroup.com/news/what-is-rvvp-cable/
Of course, if you are looking for a RVSP cable supplier, please feel free to contact us. KMCABLE has been manufacturing RVV RVSP RVVP series cables for more than 15+ years.
