Understanding PVC Cable
1. What is PVC Cable?

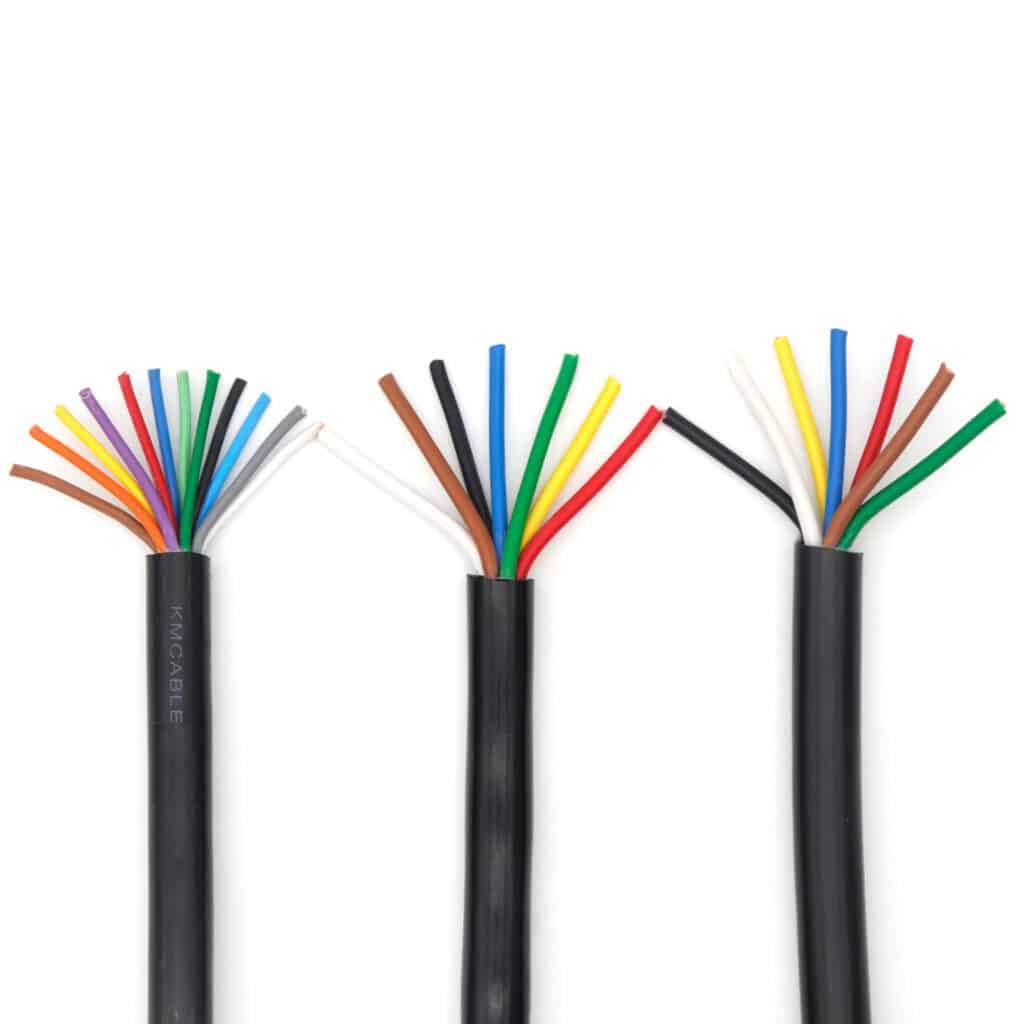

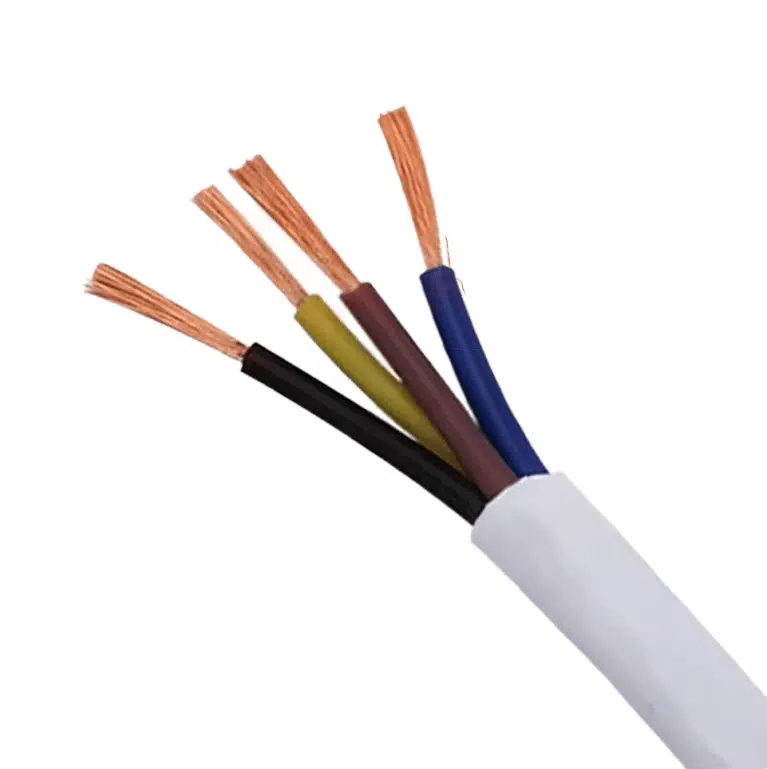

Pvc cables are cables insulated and sheathed with PVC (Polyvinyl Chloride).
VDE Code: Y, YW (high temperature resistant PVC), YK (low temperature resistant PVC).
As the most common cable insulation material, PVC is widely used in low-voltage wires and cables. It has good physical and mechanical properties, oil and corrosion resistance, and is relatively low cost. It has sufficient electrical properties, flame retardant, weathering properties.
2. Characteristics of PVC Cables
Electrical Performance
- Breakdown Voltage(20℃): 25KV/mm
- Specific Volume Resistivity(20℃): 10¹³ – 10¹⁵ Ohm*cm
- Dielectric Constant (50Hz, 20℃): 3.6-6
- Dielectric Factor: 4×10⁻² to 1×10⁻¹
Thermal Performance
- Working Temperature: -30~70°C
- Melting Temperature: 140°C
- Flame Resistance: Self-extinguishing
- Halogen Free: NO
Mechanical Performance
- Tensile Strength(N/mm²): 10-25
- Elongation at Break%: 130-350
- Shore Hardness: 70-95 (A)
- Corrosion Behavior: Medium
Weather
- Weather resistance in Black color: Medium
- Cold Resistance: moderate- good
PVC is a material with good properties, flame retardant and low price. However, please note that PVC is NOT a low-smoke, halogen-free material. It may not be suitable for some special facilities and places, such as hospitals, schools and other crowded important places.
3. Applications of PVC Cables
PVC cables are widely used in various places, such as: switch panels, power cords in home offices, wiring in public places, power cords for portable tools, power cords for home electrics, cables for lighting LEDs, battery cables, and so on.
However, it is important to note that generally PVC is not used in high voltage cables (more often PE or XLPE). It is easy to deteriorate under high temperature or light.
4. Conclusion
Understanding the characteristics of PVC cables will help you choose the right cable. If you have any questions, please feel free to contact us.
KMCABLE offers a wide range of PVC cables, including low-temperature PVC high-temperature PVC.
