Introduce
RVVP cable is a Chinese standard shielded multi-core cable, similar to the European standard LiYCY. The full name is Copper Core PVC Insulated PVC Jacketed Shielded Cable.
- Common Core Numbers: 2-24 cores.
- Common Core Diameters: 0.12mm², 0.2mm², 0.3mm², 0.4mm², 0.5mm², 0.75mm², 1mm², 1.5mm².

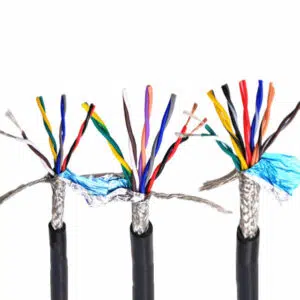

RVVP Cable
- Letter R: Stands for “soft conductor,” indicating a flexible wire.
- Letter V: Stands for “insulator,” made of polyvinyl chloride (PVC).
- Letter P: Stands for the shield, made of copper.
Characteristics of RVVP Cable:
- PVC Sheath: Provides protection and durability.
- Flame Retardant: Helps prevent fire hazards.
- Rated Temperature: -40º C to +70º C.

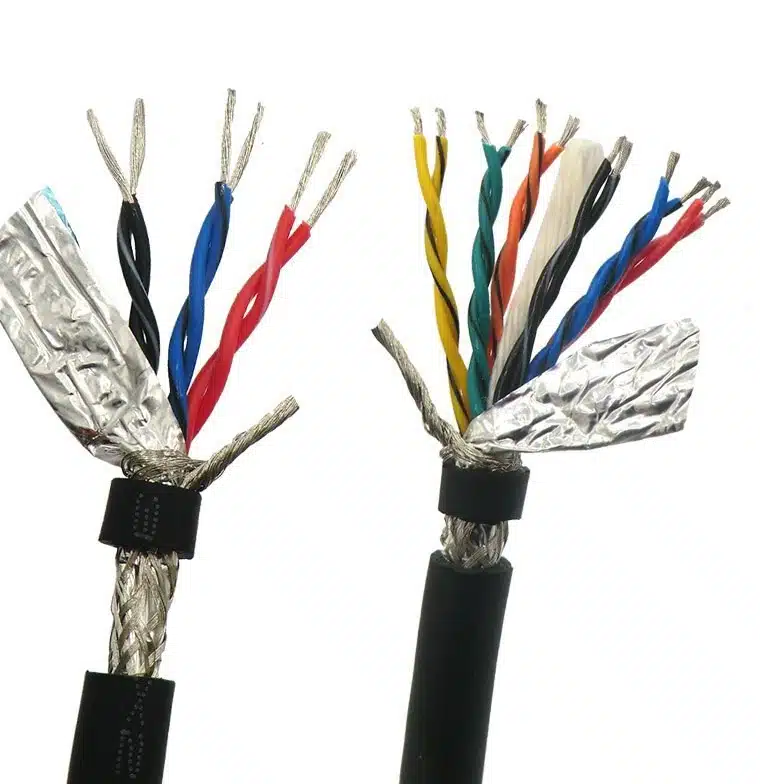

- Copper and Aluminum Foil Shield: Prevents electromagnetic interference (EMC).
2 core RVVP cable Datasheet
| Cable Size mm2 | Cable (OD) mm | Conductor OD mm | Insulation Thickness mm | Jacket Thickness mm |
| 2*0.2 | 3.7±0.2 | 1.25 | 0.5 | 0.6 |
| 2*0.3 | 4.4±0.2 | 1.5 | 0.5 | 0.6 |
| 2*0.5 | 5.2±0.2 | 1.8 | 0.5 | 0.6 |
| 2*0.75 | 5.9±0.2 | 2.2 | 0.6 | 0.8 |
| 2*1.0 | 6.6±0.2 | 2.4 | 0.6 | 0.8 |
| 2*1.5 | 7.7±0.2 | 2.9 | 0.7 | 0.8 |
| 2*2.5 | 8.6±0.2 | 3.4 | 0.8 | 0.9 |
| 2*4.0 | 10.6±0.2 | 3.9 | 0.8 | 1.0 |
| 2*6.0 | 12.6±0.2 | 4.8 | 0.8 | 1.0 |
3 core RVVP cable Datasheet
| Cable Size mm2 | Cable (OD) mm | Conductor OD mm | Insulation Thickness mm | Jacket Thickness mm |
| 3*0.2 | 3.9±0.2 | 1.25 | 0.5 | 0.6 |
| 3*0.3 | 4.5±0.2 | 1.5 | 0.5 | 0.6 |
| 3*0.5 | 5.4±0.2 | 1.8 | 0.5 | 0.6 |
| 3*0.75 | 6.5±0.2 | 2.2 | 0.6 | 0.8 |
| 3*1.0 | 6.7±0.2 | 2.4 | 0.6 | 0.8 |
| 3*1.5 | 7.9±0.2 | 2.9 | 0.7 | 0.8 |
| 3*2.5 | 9.7±0.2 | 3.4 | 0.8 | 0.9 |
| 3*4.0 | 11.4±0.2 | 3.9 | 0.8 | 1.0 |
4 core RVVP cable Datasheet
| Cable Size mm2 | Cable (OD) mm | Conductor OD mm | Insulation Thickness mm | Jacket Thickness mm |
| 4*0.2 | 4.3±0.2 | 1.25 | 0.5 | 0.6 |
| 4*0.3 | 5.2±0.2 | 1.5 | 0.5 | 0.6 |
| 4*0.5 | 5.9±0.2 | 1.8 | 0.5 | 0.8 |
| 4*0.75 | 6.8±0.2 | 2.2 | 0.6 | 0.8 |
| 4*1.0 | 7.6±0.2 | 2.4 | 0.6 | 0.8 |
| 4*1.5 | 8.7±0.2 | 2.9 | 0.7 | 0.8 |
| 4*2.5 | 11.1±0.2 | 3.4 | 0.8 | 0.9 |
| 4*4.0 | 12.4±0.2 | 3.9 | 0.8 | 1.0 |
| 4*6.0 | 14.7±0.2 | 4.8 | 0.8 | 1.2 |
