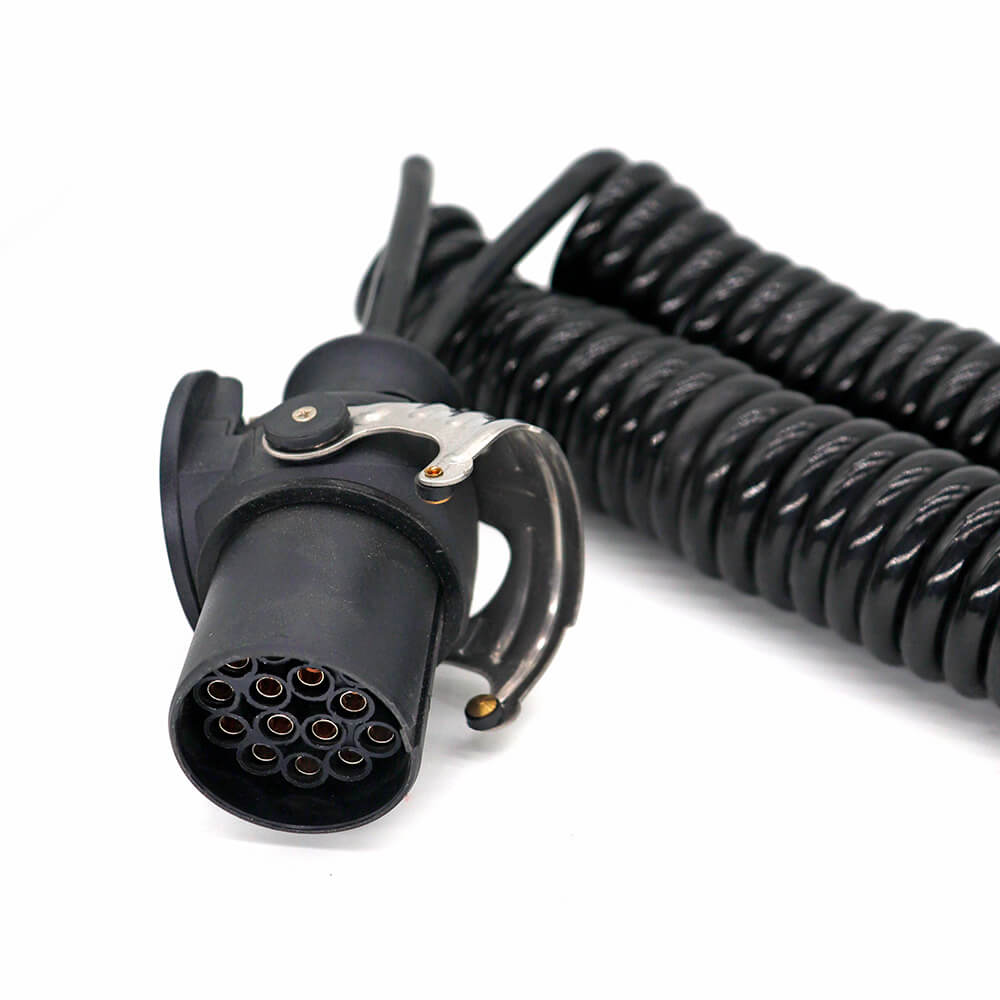

This 15 pin 24v coil adapter trailer cable is based on ISO 12098 with reinforced composite housing plug is suitable for leading truck manufacturers.
size: 12x 1.5mm²+ 3x 2.5mm²
Conductor Material: Bare Copper
Insulation: TPE
Sheath: PUR
Working Length: Up to 4.5m
Feature: Water Proof, high rebound
Rated Voltage: 12V
No of Pin: 7 Pin
Housing Material: Reinforced Composite or metal
Housing Color: Black or Silver
Contact surface: CuZn
Contact termination: Screw Contact
| Function | Cross-section area | Core insulation color |
| Left-hand direction indicator light | 1.5 mm² | yellow |
| Right-hand direction indicator light | 1.5 mm² | green |
| Rear fog light | 1.5 mm² | blue |
| Common return | 2.5 mm² | white |
| Left hand rear, position and marker light | 1.5 mm² | black |
| Right hand rear, position and marker light | 1.5 mm² | brown |
| Brake light | 1.5 mm² | red |
| Reversing light | 1.5 mm² | pink |
| Continuous power supply | 2.5 mm² | orange |
| Worn brake line sensor | 1.5 mm² | grey |
| Pressure sensor for spring brake | 1.5 mm² | white/black |
| Axle lifting device | 1.5 mm² | white/blue |
| Common return for data lines | 2.5 mm² | white/red |
| CAN-H | 1.5 mm² | white/green |
| CAN-L | 1.5 mm² | white/brown |

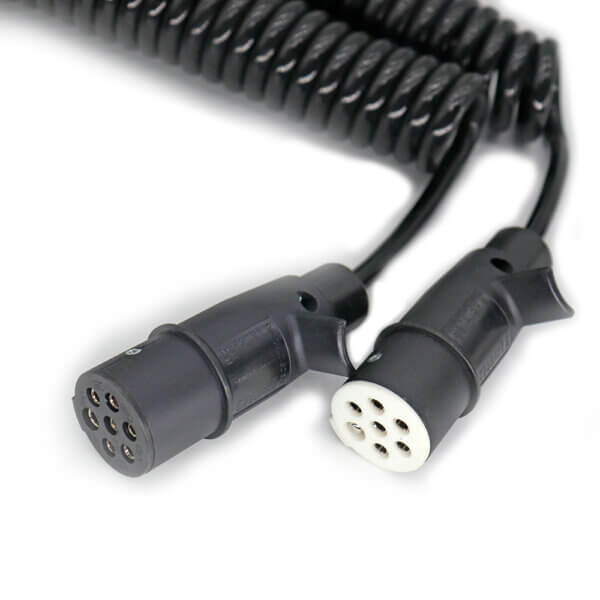

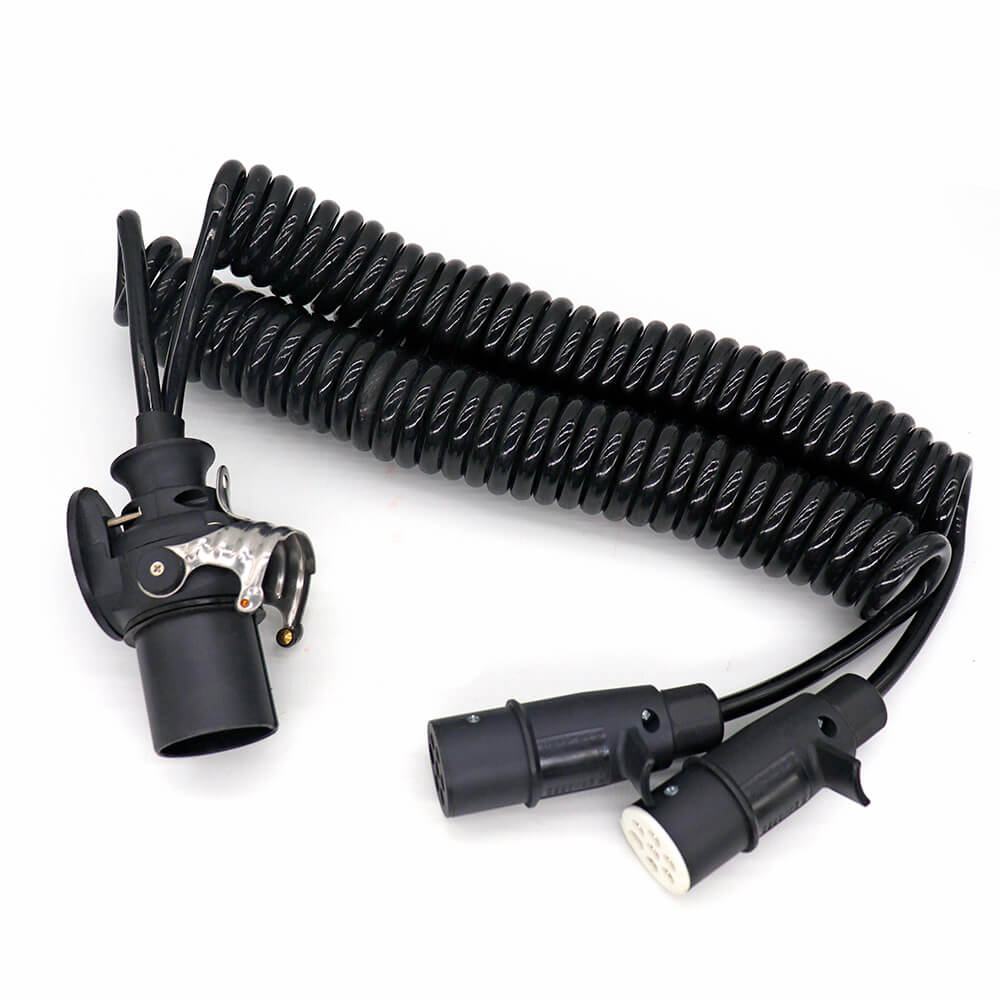

This 15 pin ISO 12098 Trailer Plug to 2x 7 pin ISO 1185 + ISO 3731 Trailer Plug Adapter Coil is suitable for most of leading truck manufacturer, such as Volvo, Scania, Benz commercial Trucks.
These cables can meet the high requirements of modern commercial vehicles and can be used in harsh environments.
