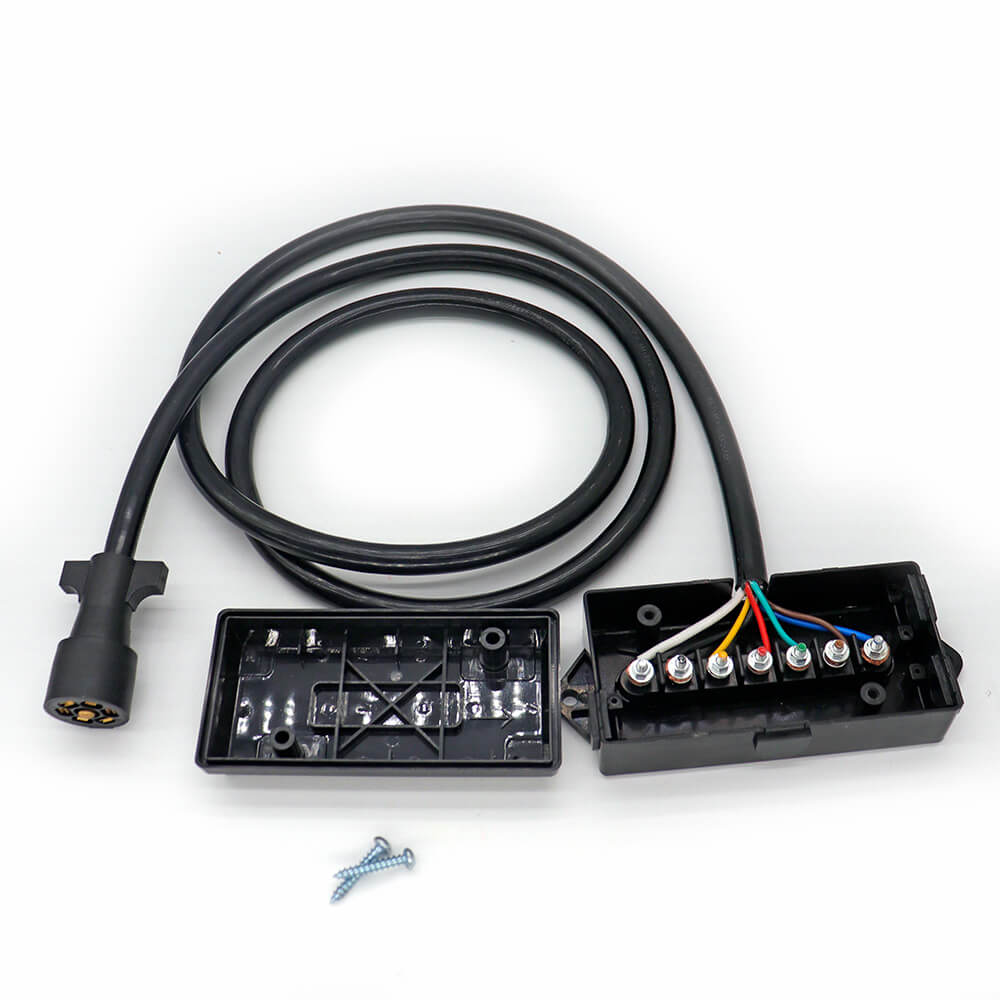

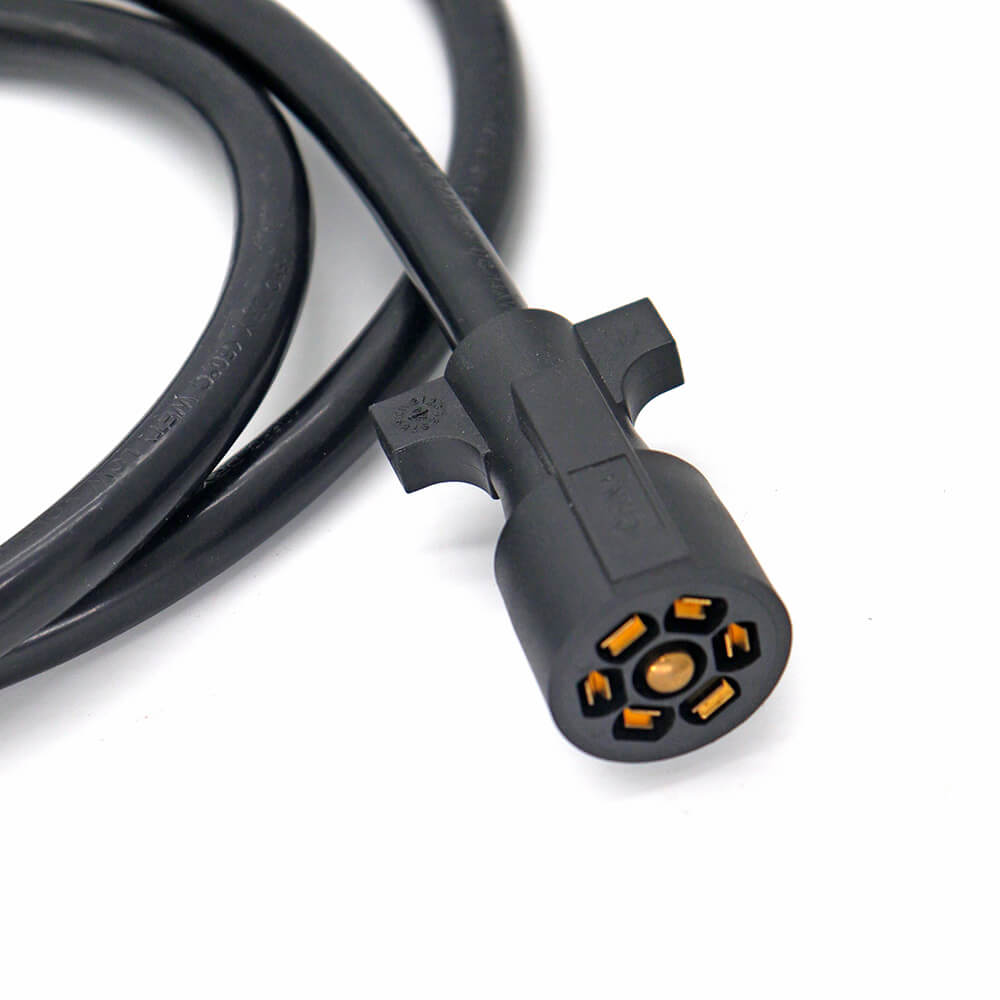

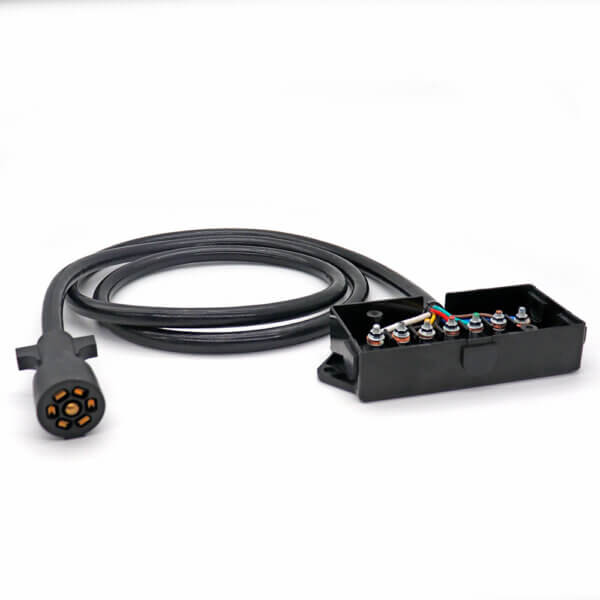

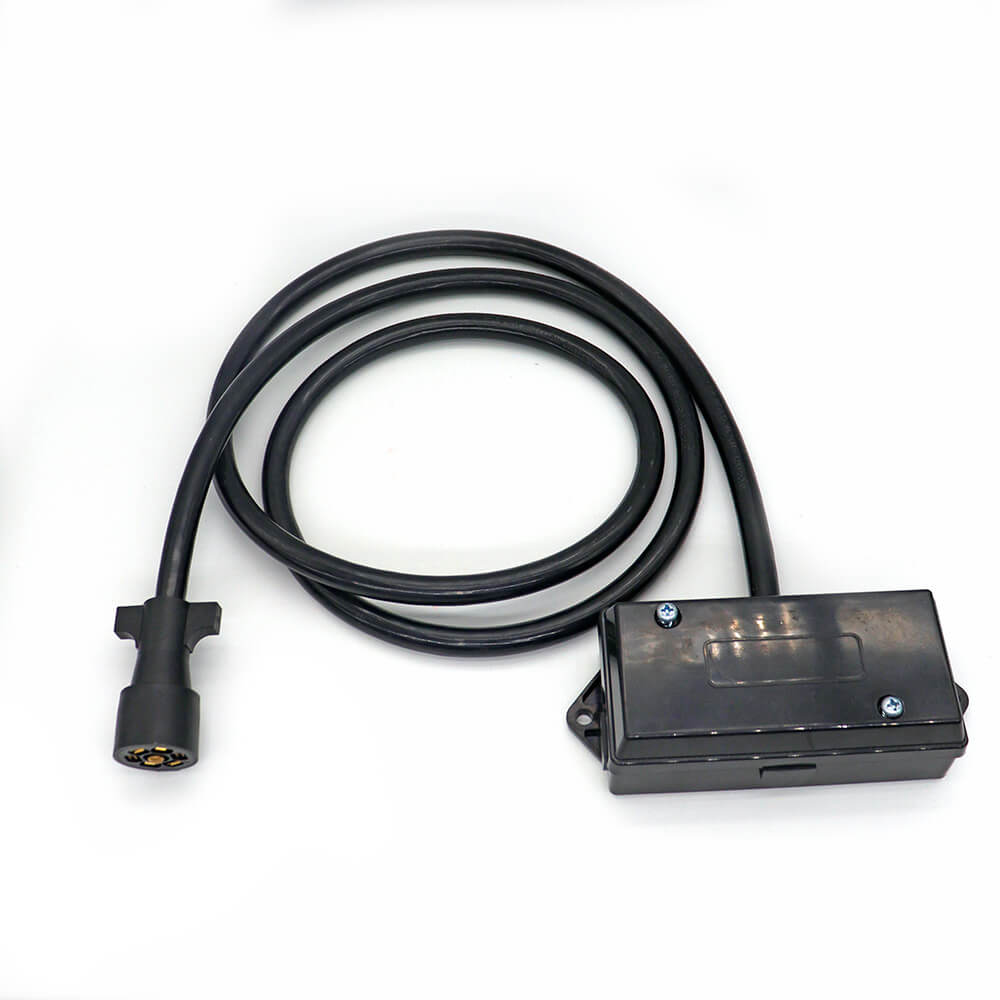

This round trailer blade connector cable with junction box is based on SAE J2863 which is widely used in North America trailers.
size:Â 14/4 + 12 + 10/2
Conductor Material: Bare Copper
Insulation: TPE
Sheath: PUR
Working Length: Up to 7m
Feature: Water Proof, high rebound
Rated Voltage: 12V
No of Pin: 7 Pin
Housing Material: Reinforced Composite or metal
Housing Color: Black
Contact surface: CuZn
Contact termination: Screw Contact
| Function | Cross-section area | Core insulation color |
|  Left turn signal and hazard lamps |  1.5 mm² |  yellow |
| Ground return to towing vehicle |  1.5 mm² |  green |
|  Continuous ABS Primary Power |  1.5 mm² |  blue |
|  Right turn signal and hazard lamp |  2.5 mm² |  white |
| +12 volt |  1.5 mm² |  black |
| Rear position and marker light and rear registration-plate illumination device |  1.5 mm² |  brown |
|  Reverse light |  1.5 mm² |  red |
