Media and Event Technology Cables
Powering Your Electric Journey
Cables for Media and Event Technology Cables
With the approach of the Olympic Games, the European Cup, concerts and other large-scale events in recent years, the demand for professional stage lighting and audio systems has grown. Cables for media and event technology play a crucial role in this. These cables ensure that events run smoothly and safely without disruption. These cables transmit the power signal data for all types of sound, light and video systems.
KMCABLE provides our customers with professional Sound Cables(Speaker Cables), Lighting cables, and Car Speaker Systems Cables.
Sound technology Cables
In sound technology, cables are vital for reliable sound transmission. They carry audio electrical signals from a source such as a microphone, guitar or musical instrument to an amplifier, speaker, mixing console or recording device. High-quality OFC cables are important to maintain signal quality and minimize interference or signal loss.
Speaker Cables
Speaker cable, also called amplifier cable, in the audio industry common color is gold&silver or red&black, mainly used for amplifiers and speakers connection. Because the audio cable transmits power signals, so there can not be too much signal loss, so the conductivity of the audio cable are required to be very good. Therefore, for speaker cables, OFC conductor is necessary, the specifications are generally 16awg and 14awg. Of course, we also provide customized multi-wire speaker cables for different solutions, for example, for car speaker systems, we have 9-wire 16awg cables for customers to choose, corresponding to a 4channel system.
Audio cable
The audio cable is different from the speaker cable above, this kind of cable is generally used on Line In and Line Out, the passing current is small, and it is easy to receive the signal interference from the outside. Therefore, these cables are usually twisted and screened. There are many types and specifications of audio cables, the common ones are Canon head, Lotus head, 3.5mm connector, 6.35/6.5 connector, XLR, 3pin 5pin DMX connector and so on.
Microphone Cable
Microphone cables are primarily cables used to connect a source such as a microphone, guitar, etc. to an amplifier. Again this type of cable passes a relatively small amount of current, so it also needs a shield to avoid electromagnetic infection and distortion of the sound. A common connector is the XLR 3pin connector. Red and white and red and blue are the more common core colors.
Light Technology Cables
In lighting technology, cables not only provide power, but also control lighting effects, color changes, and color temperature and brightness. In complex lighting systems, these cables also transmit data between the lighting and control equipment.
DMX Cable
The DMX cable in the lighting system is converted from the RS485 cable for industrial automation. Usually DMX cables are 3 or 5 pin, in complex lighting systems DMX cables are flexible and easy to install with shielding to prevent signal interference and sound distortion.
Load Cable
Load cables are primarily cables that provide electrical support for stage lighting. Because the power of the stage lighting are generally larger, this type of cable size are larger, to provide a stable power supply.

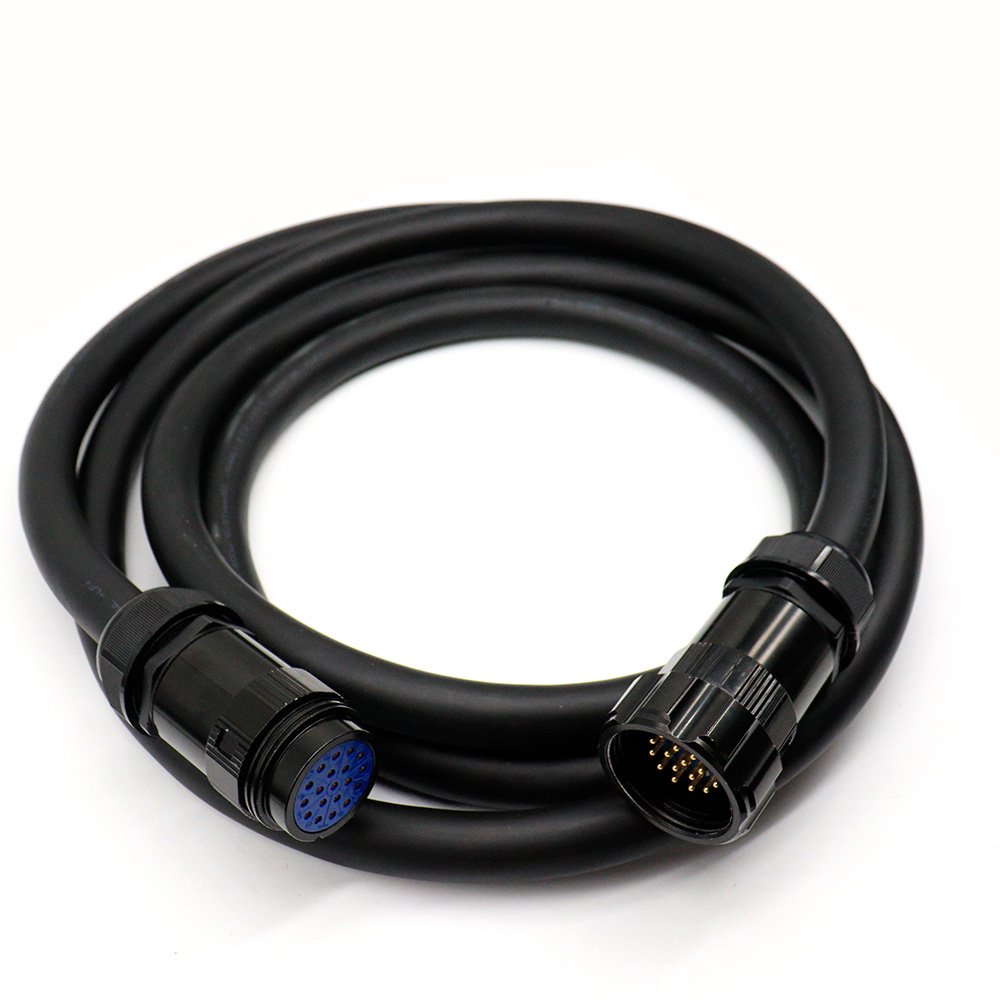

Powercon DMX Combine Cable
In recent years, in order to make stage lighting cabling more convenient and efficient, the concept of power and DMX512 combination cable has emerged. As the name suggests, this cable combines the DMX signal line with the lighting power line, which effectively avoids the site wiring too messy and improves the efficiency of wiring.
Car Speaker System Cables
Professional car tuning players can never get around the car audio tuning. Who does not want their car is equipped with a set of high sound quality audio amplifier system?
Usually a set of car audio modification cable contains: 4ga/8ga power cable and ground cable. 9 conductor speaker cable for 4 channel car speaker. As well as audio host to the amplifier control cable and RCA signal cable.
Power and Ground Cable
Since all the current inside the car is of DC power. So the cable supplying power to the car amplifier only needs a 4ga/8ga single core cable and a grounding cable. Of course, in order to maintain a stable power supply, we always recommend that you use pure copper and highly flexible cables.
4 channel Speaker Cable
The speaker cable used to connect the car amplifier to the speakers is usually a 9-conductor cable that corresponds to each of the 4 speakers and a ground wire. Usually, this cable conductor color is consist of as follows, White; White/Black; Gray; Gray/Black; Green; Green/Black; Purple; Purple/Black; Blue
Custom Cable Solutions
The Media and Event technology cables keep changing every year, and the related cable industry standards are not perfect now. Therefore, we also provide cable customization service with our rich experience. We can customize the cables according to your needs and environment, and the details of customization can be as specific as the total outer diameter of the cable, shielding density, plastic material number, number of strands of copper wire, and stranding coefficient.
Explore Our Media and Event Cable Directory
Are you looking for specific cables for your audio and light systems? Visit our Media and Event cable directory to find detailed information
