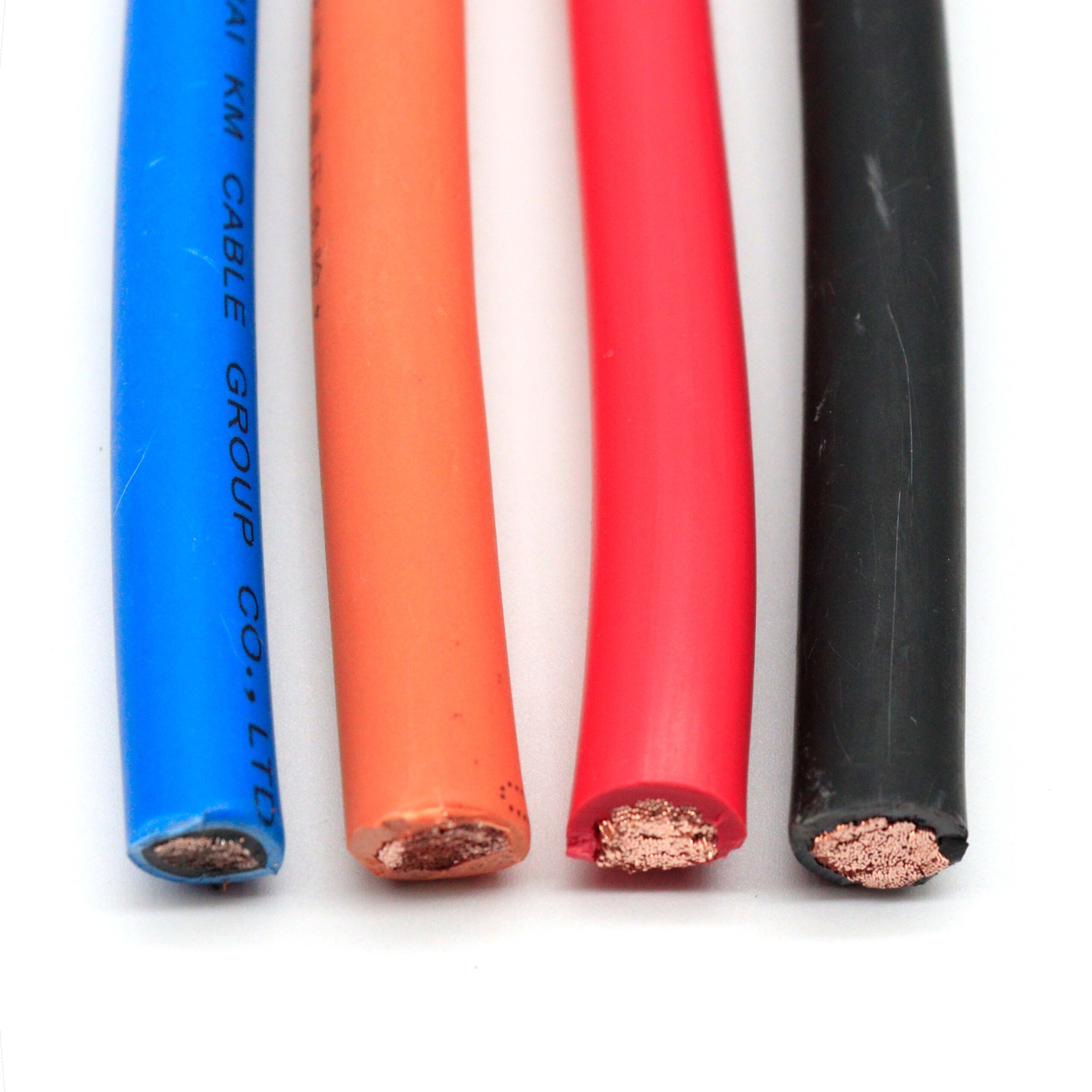

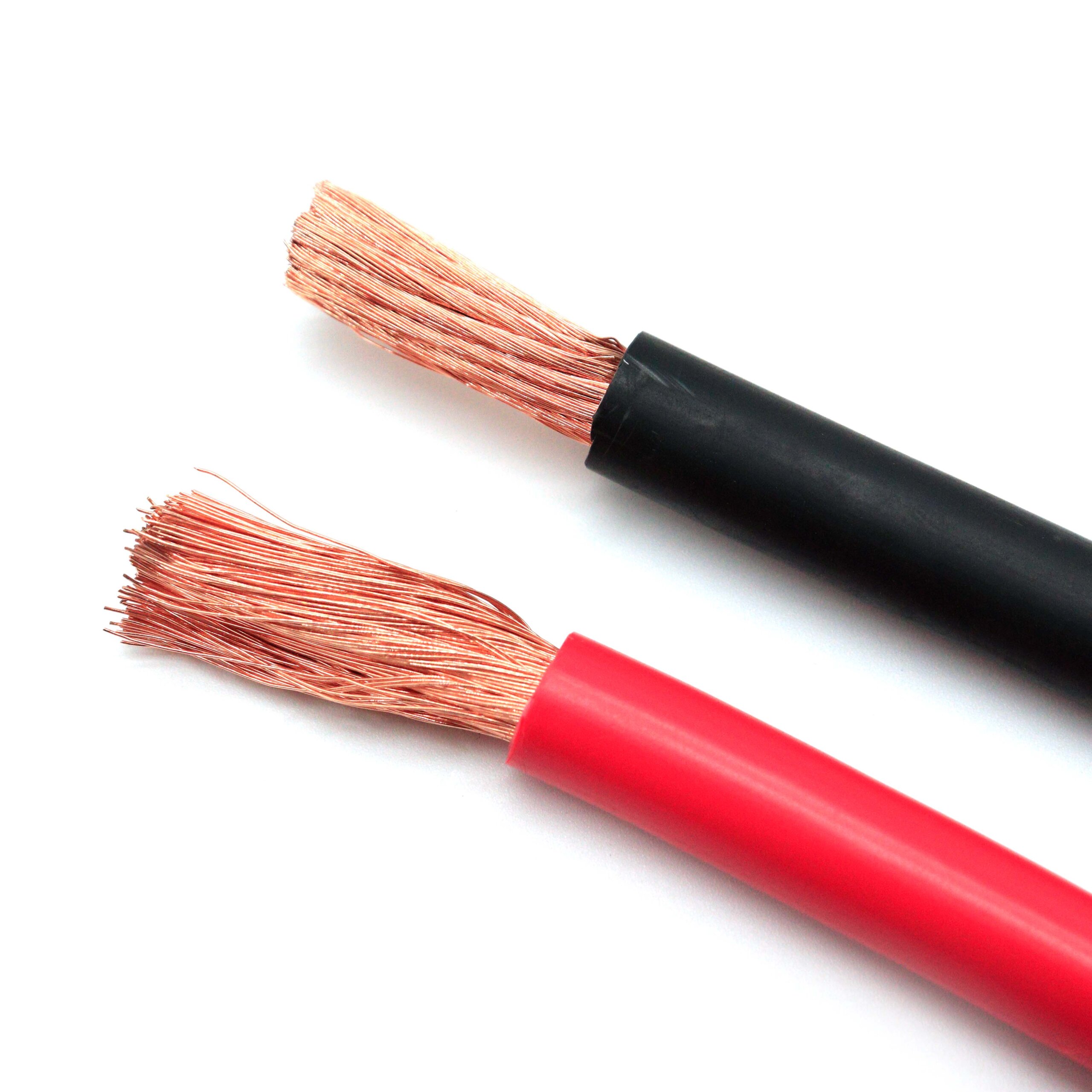

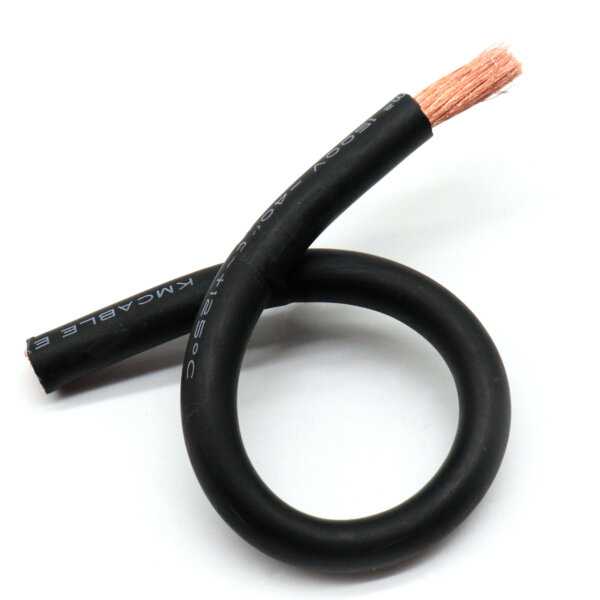

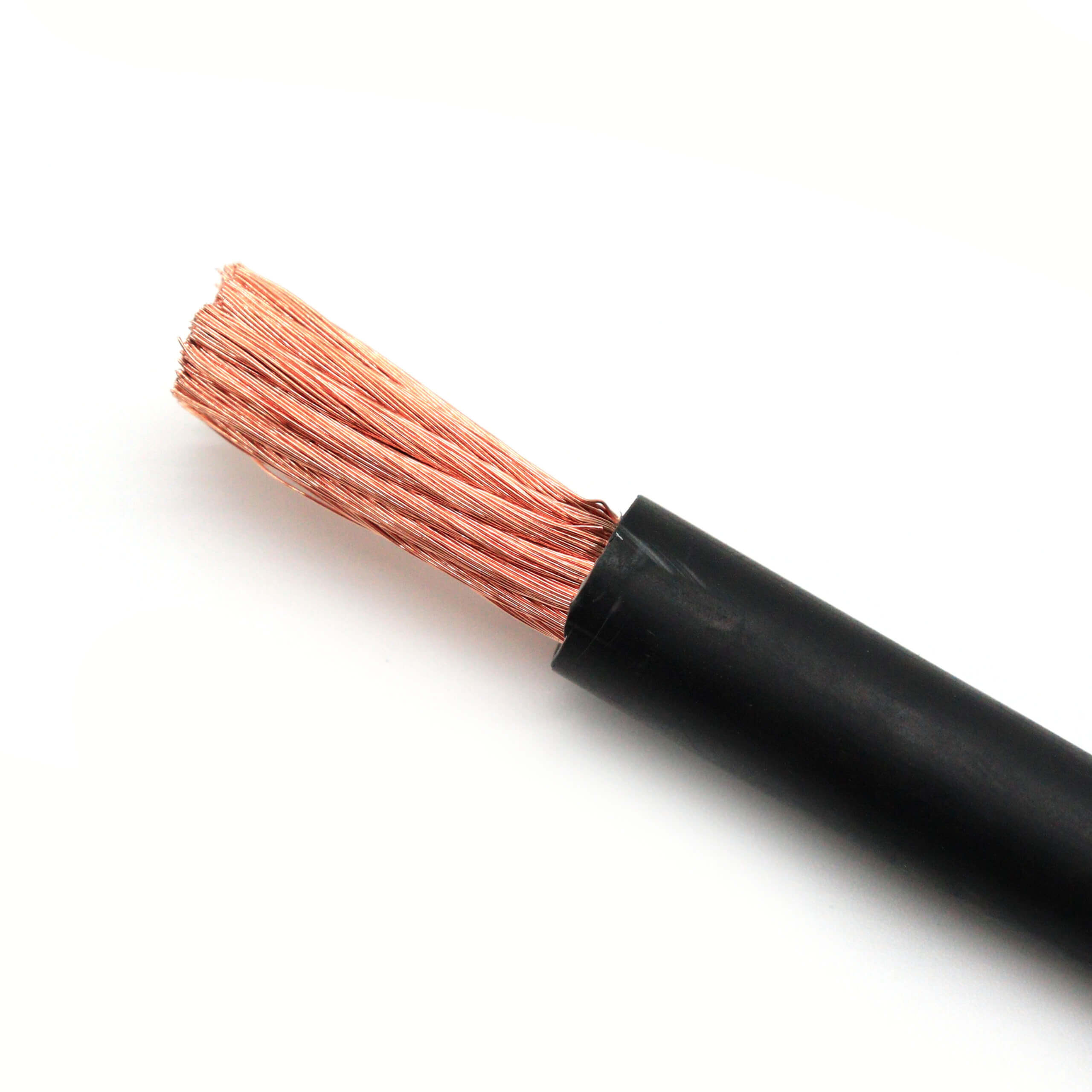

YH welding machine cable conductive core is very flexible, the insulation is flame retardant, and the sheath is wear-resistant and oil-resistant, resistant to atmospheric aging and other properties.
GB/T5013.6 -2008/ IEC 60245-6:1994
Suitable for the connection of welding machine equipment. It can also be used as a connection cable between the battery and DC power
Suitable for flexible use in harsh conditions such as automotive and shipbuilding, and in conveyors, automatic welding machines, robots, etc..
This cable has good tear and abrasion resistance.
It is suitable for harsh environments, such as sunshine, machine oil, acid and alkali liquid, mud and water, etc. It has certain weather resistance and oil and solvent resistance.
| AWG | Conductor OD | Sheath Thickness | Cable OD | Weight |
|---|---|---|---|---|
| mm2 | mm | mm | mm | kg/km |
| 16 | 6.0 | 2.0 | 8.8-11.0 | 236 |
| 25 | 6.8 | 2.0 | 10. 1-12.7 | 322 |
| 35 | 8.2 | 2.0 | 11.4-14.2 | 432 |
| 50 | 10.2 | 2.2 | 13.2-16.5 | 593 |
| 70 | 11.9 | 2.4 | 15.3-19.2 | 817 |
| 95 | 13.8 | 2.6 | 17. 1-21.4 | 1095 |
| Current Carrying A | ||||
|---|---|---|---|---|
| AWG/persistency | 100% | 80% | 60% | 40% |
| 16 | 86 | 96 | 111 | 136 |
| 25 | 135 | 151 | 174 | 213 |
| 35 | 170 | 190 | 220 | 269 |
| 50 | 215 | 240 | 278 | 340 |
| 70 | 265 | 296 | 342 | 419 |
| 95 | 325 | 363 | 420 | 600 |
