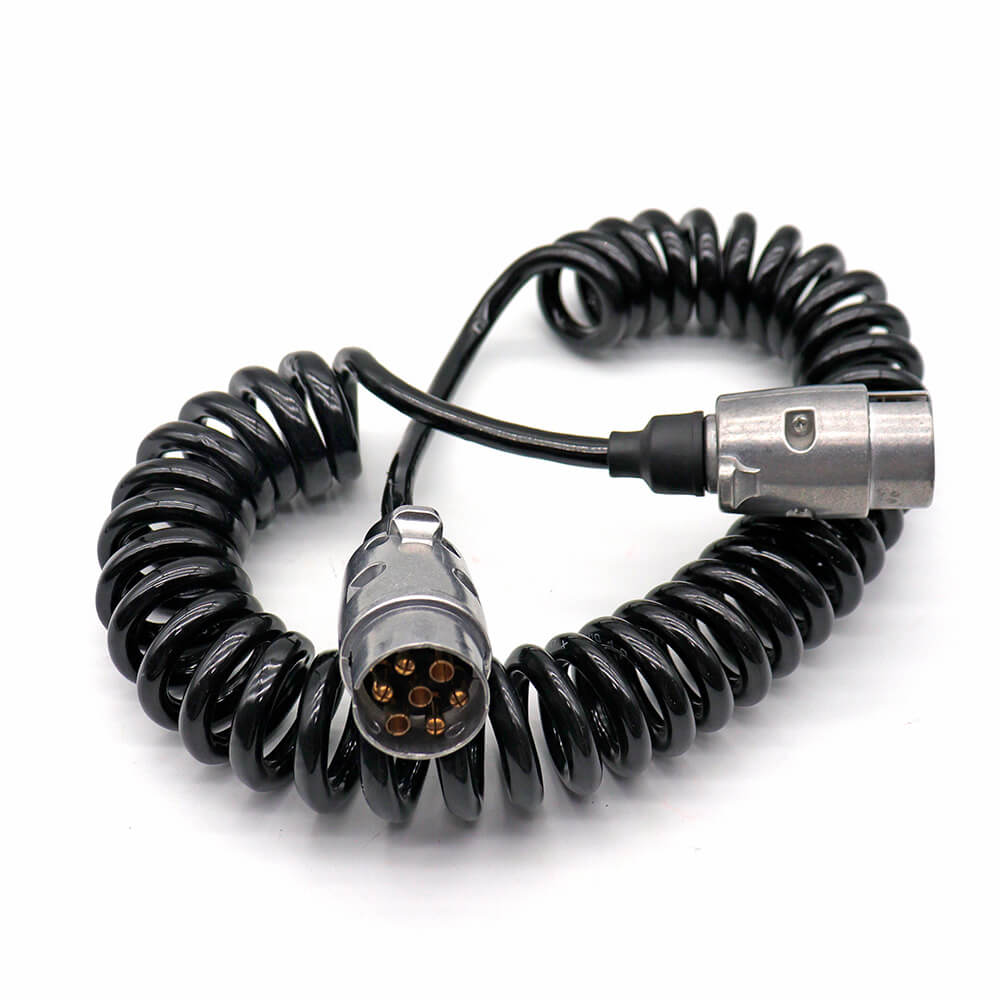

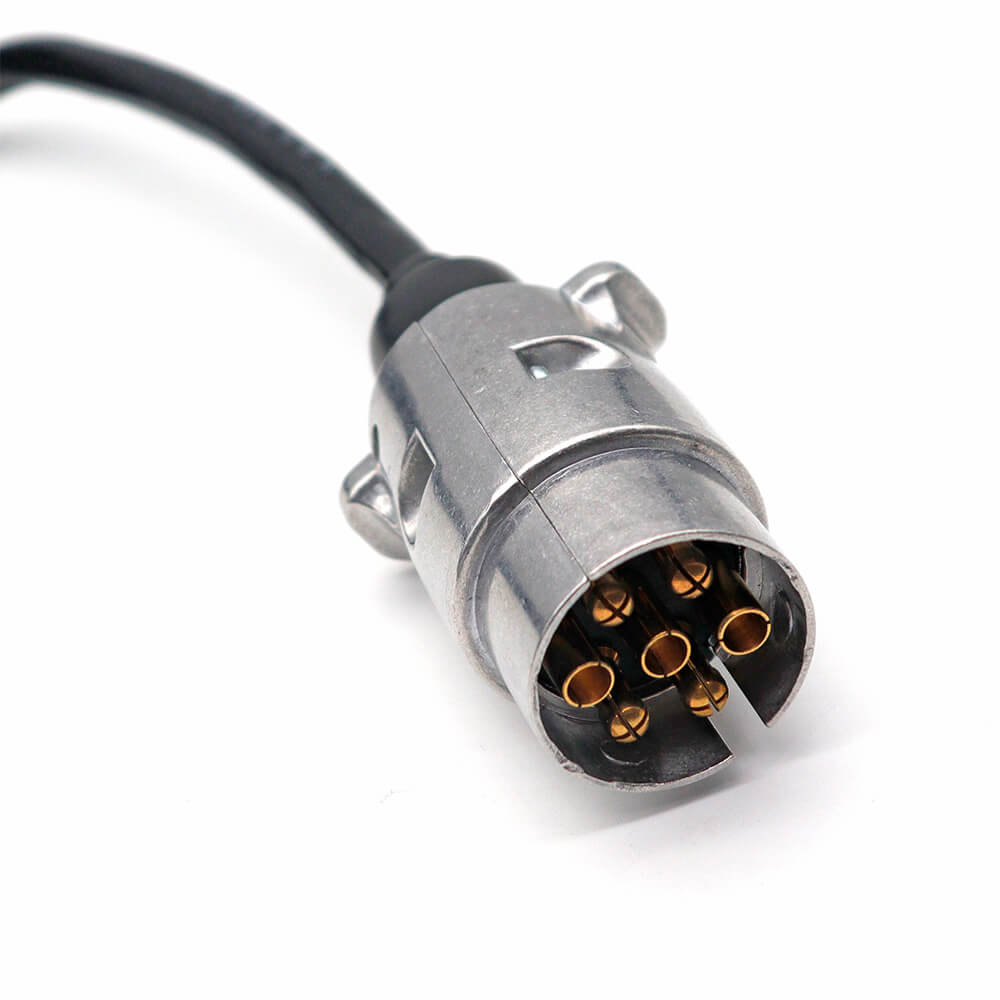

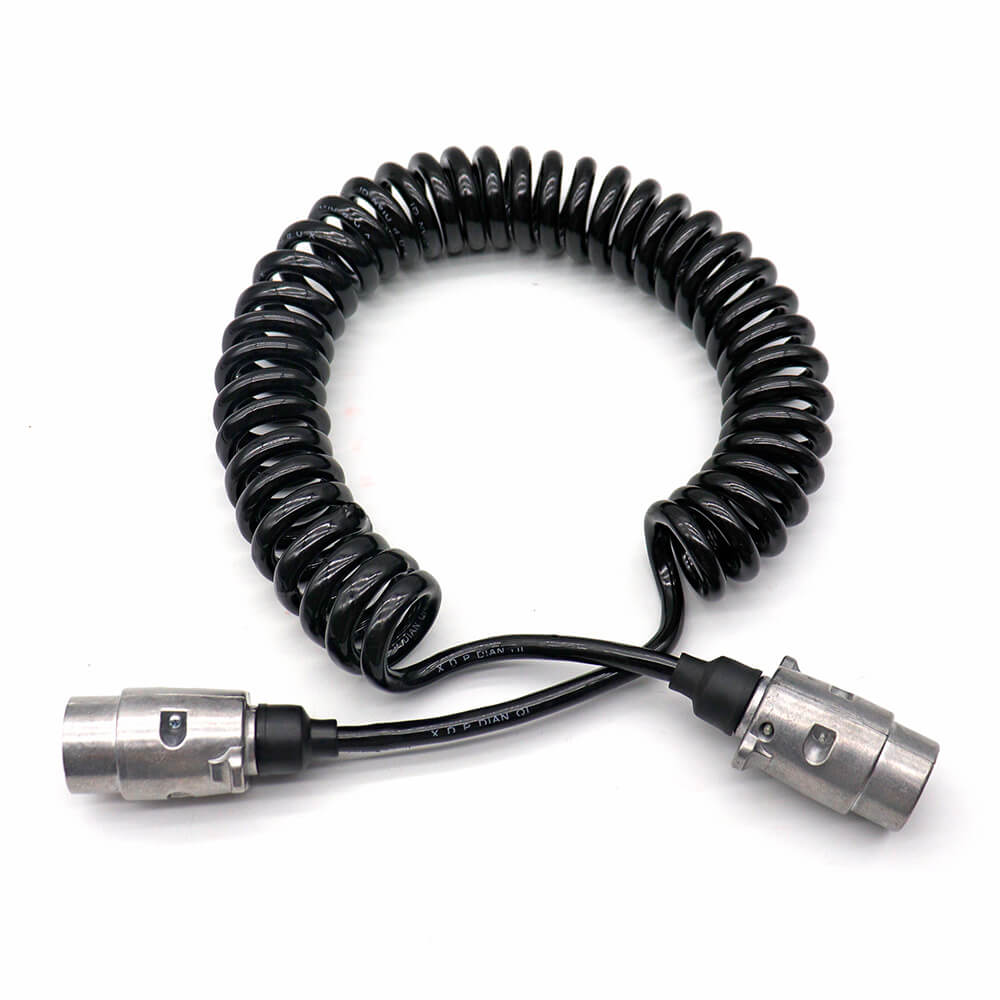

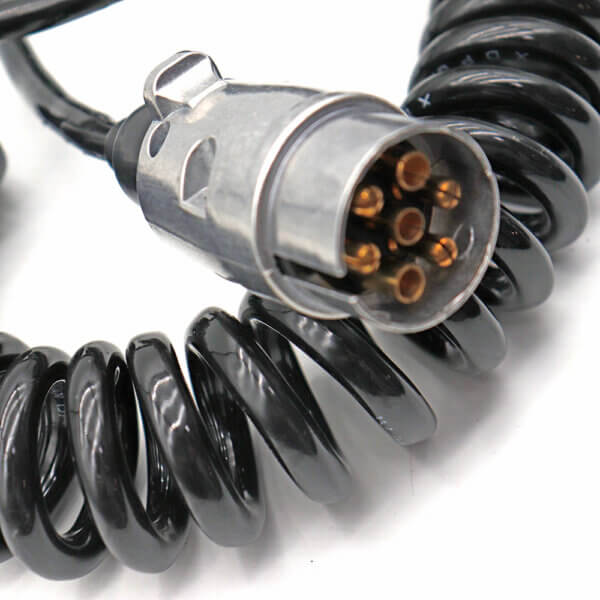

This 7pin 12v coil trailer cable ISO 1724 with silver metal housing plug is suitable for connecting light duty vehicles to semi trailers. Such as: Car, Vehicle, Van, Caravan, truck, etc.
size: 6x1mm²+1×1.5mm² or 6×1.5mm²+1×2.5mm²
Conductor Material: Bare Copper
Insulation: TPE
Sheath: PUR
Working Length: Up to 4.5m
Feature: Water Proof, high rebound
Rated Voltage: 12V
No of Pin: 7 Pin
Housing Material: Break proof Metal
Housing Color: Silver
Contact surface: CuZn
Contact termination: Screw Contact
| Function | Cross-section Area | Core Insulation Color |
| Left-hand direction indicator light |  1.5 mm² |  Yellow |
| Rear fog light |  1.5 mm² |  Blue |
| Common return |  2.5 mm² |  White |
| Right-hand direction indicator light |  1.5 mm² |  Green |
| Right-hand rear, marker, position light and license plate lamp |  1.5 mm² |  Brown |
| Brake lights |  1.5 mm² |  Red |
| Left-hand rear, marker, position light and license plate lamp |  1.5 mm² |  Black |
The ISO 1724 standard trailer coil cable is used for connecting a wide range of light duty vehicles, cars, trucks and caravan to trailers. It is well suited and easy to assemble.
