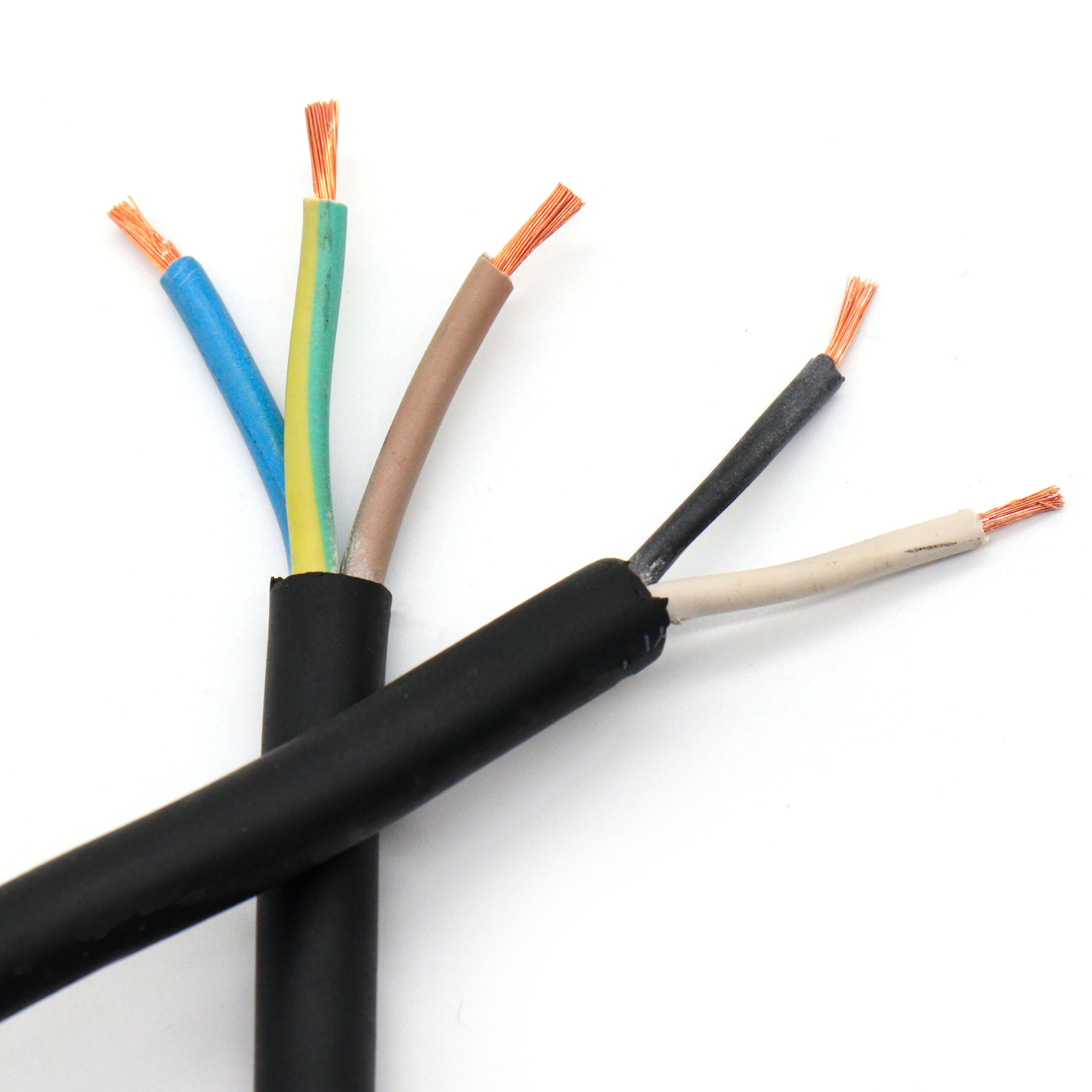

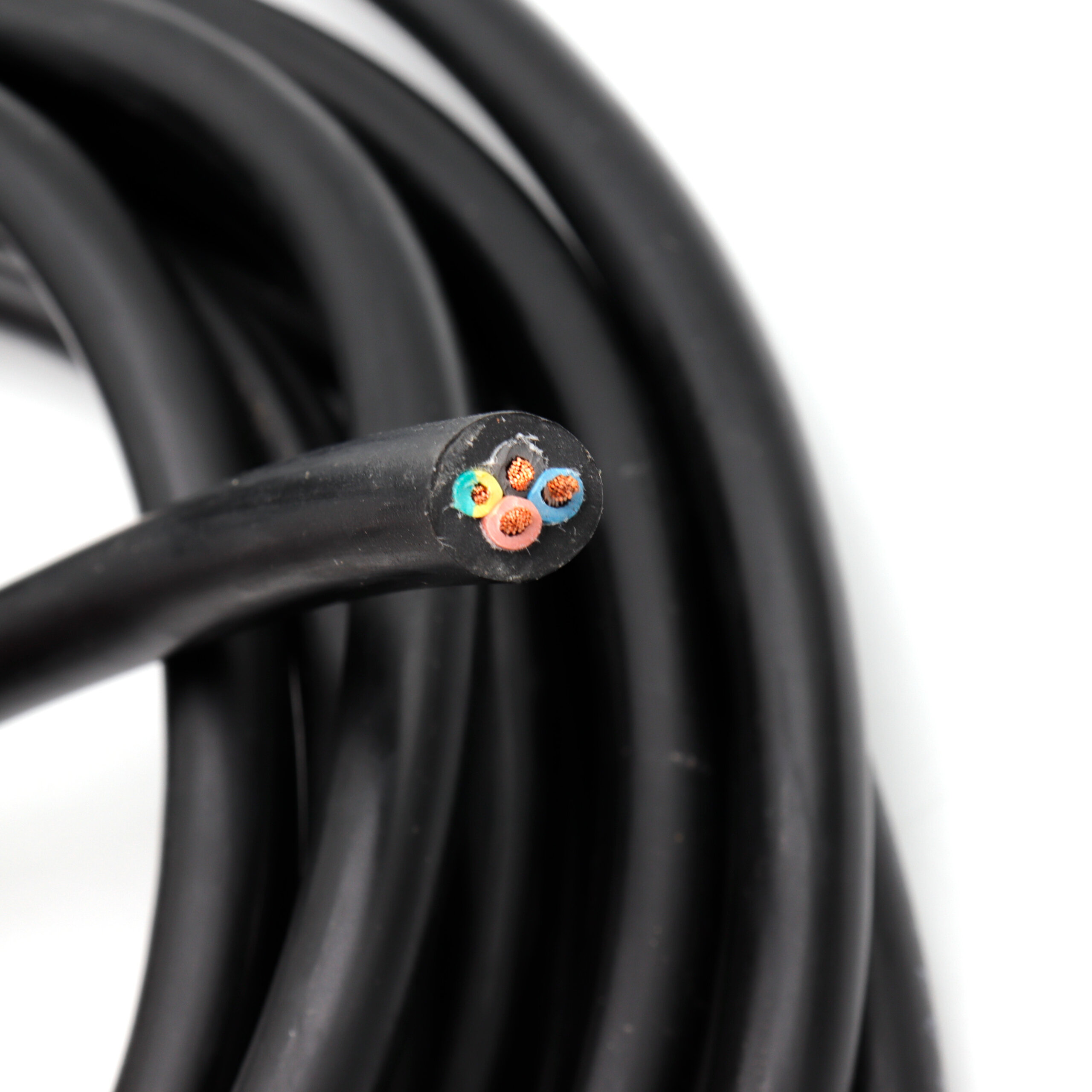

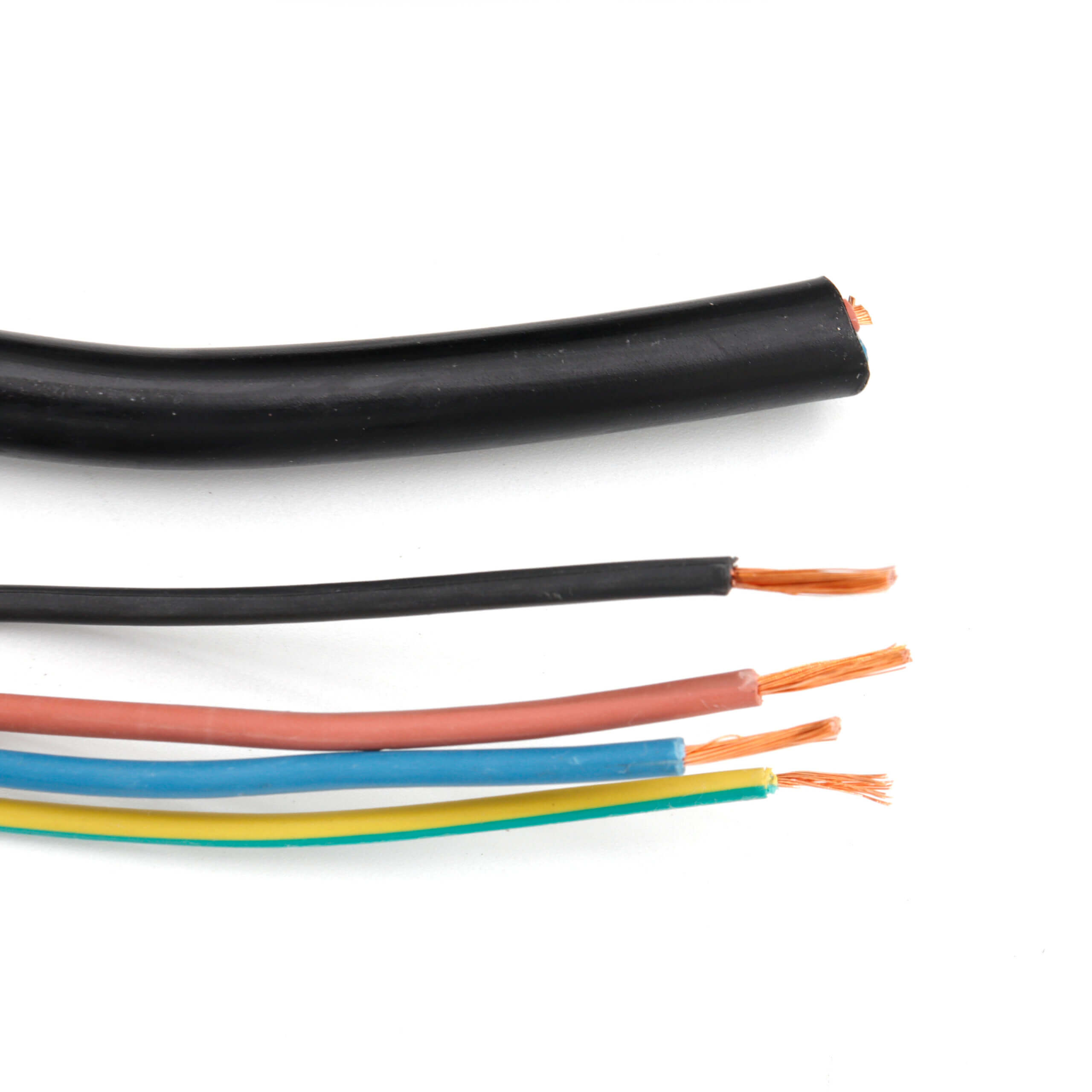

JHS waterproof rubber cables are used for submersible motors with AC voltage below 500V for transmitting electrical energy.
It has good electrical insulation performance under long-term water immersion and large water pressure. The waterproof rubber sheathed cable has good bending performance and can withstand frequent movements.
Q/QF-003-2017
JHS Waterproof rubber cables are mainly used for connecting power supply to submersible motors or submersible pumps with AC voltage 450/750V and below, and can also be used in oil-contaminated occasions.
| AWG | Conductor OD | Insulation Thickness | Sheath Thickness | Cable OD | Weight |
|---|---|---|---|---|---|
| Nominal Cross section mm^2 | mm | mm | mm | mm | kg/km |
| 1x1 | 1.2 | 0.8 | 1.3 | 5.2-6. 5 | 50 |
| 1x1.5 | 1.5 | 0.8 | 1.4 | 5. 7-7. 1 | 65 |
| 1x2.5 | 2.0 | 0.9 | 1.4 | 6. 3-7. 9 | 83 |
| 1x4 | 2.5 | 1.0 | 1.5 | 7.2-9.0 | 112 |
| 1x6 | 3.2 | 1.0 | 1.6 | 7.9-9. 8 | 145 |
| 1x10 | 4.3 | 1.2 | 1.8 | 9.5-11.9 | 223 |
| 1x16 | 5.3 | 1.2 | 1.9 | 10.8-13.4 | 304 |
| 1x25 | 7.0 | 1.4 | 2.0 | 12.7-15.8 | 446 |
| 1x35 | 8.0 | 1.4 | 2.2 | 14.3-17.9 | 564 |
| 1x50 | 9.6 | 1.6 | 2.4 | 16. 5-20. 6 | 773 |
| 1x70 | 11.5 | 1.6 | 2.6 | 18.6-23.3 | 1032 |
| 1x95 | 13.3 | 1.8 | 2.8 | 20.8-26. 0 | 1358 |
| 1x120 | 15.0 | 1.8 | 3.0 | 22.8-28.6 | 1623 |
| 1x150 | 16.8 | 2.0 | 3.2 | 25.2-31.4 | 2013 |
| 1x185 | 19.0 | 2.2 | 3.4 | 27.6-34.4 | 2481 |
| 1x240 | 22.0 | 2.4 | 3.5 | 30.6-38. 3 | 3166 |
| 1x300 | 24.0 | 2.6 | 3.6 | 33.5-41.9 | 3783 |
| 1x400 | 28.0 | 2.8 | 3.8 | 37.4-46.8 | 4939 |
| 2x1 | 1.2 | 0.8 | 1.3 | 7.7-10.0 | 96 |
| 2x1.5 | 1.5 | 0.8 | 1.5 | 8.5-11.0 | 125 |
| 2x2.5 | 2.0 | 0.9 | 1.7 | 10.2-13. 1 | 174 |
| 2x4 | 2.5 | 1.0 | 1.8 | 11.8-15. 1 | 234 |
| 2x6 | 3.2 | 1.0 | 2.0 | 13. 1-16.8 | 309 |
| 2x10 | 4.3 | 1.2 | 3.1 | 17.7-22.6 | 571 |
| 2x16 | 5.3 | 1.2 | 3.3 | 20.2-25. 7 | 749 |
| 2x25 | 7.0 | 1.4 | 3.6 | 24. 3-30. 7 | 1097 |
| 2x35 | 8.0 | 1.4 | 3.9 | 27.3-34.6 | 1383 |
| 2x50 | 9.6 | 1.6 | 4.3 | 31.8-40. 1 | 1880 |
| 2x70 | 11.5 | 1.6 | 4.6 | 35.8-45. 1 | 2525 |
| 2x95 | 13.3 | 1.8 | 5.0 | 40.2-51.0 | 3292 |
| AWG | Conductor OD | Insulation Thickness | Sheath Thickness | Cable OD | Weight |
|---|---|---|---|---|---|
| Nominal Cross section mm^2 | mm | mm | mm | mm | kg/km |
| 3x1 | 1.2 | 0.8 | 1.4 | 8. 3—10. 7 | 122 |
| 3x1.5 | 1.5 | 0.8 | 1.6 | 9.2-11.9 | 160 |
| 3x2.5 | 2.0 | 0.9 | 1.8 | 10.9-14.0 | 225 |
| 3x4 | 2.5 | 1.0 | 1.9 | 12. 7-16.2 | 306 |
| 3x6 | 3.2 | 1.0 | 2.1 | 14. 1-18.0 | 408 |
| 3x10 | 4.3 | 1.2 | 3.3 | 19. 1-24.2 | 758 |
| 3x16 | 5.3 | 1.2 | 3.5 | 21.8-27.6 | 1014 |
| 3x25 | 7.0 | 1.4 | 3.8 | 26. 1-33.0 | 1473 |
| 3x35 | 8.0 | 1.4 | 4.1 | 29. 3-37. 1 | 1870 |
| 3x50 | 9.6 | 1.6 | 4.5 | 34. 1-42.9 | 2509 |
| 3x70 | 11.5 | 1.6 | 4.8 | 38. 4-48. 3 | 3362 |
| 3x95 | 13.3 | 1.8 | 5.3 | 43. 3-54.0 | 4476 |
| 3x120 | 15.0 | 1.8 | 5.6 | 47. 3-60. 0 | 5355 |
| 3x150 | 16.8 | 2.0 | 6.0 | 52. 0-66. 0 | 6626 |
| 4x1 | 1.2 | 0.8 | 1.5 | 9. 2-11.9 | 146 |
| 4x1.5 | 1.5 | 0.8 | 1.7 | 10.2-13. 1 | 193 |
| 4x2.5 | 2.0 | 0.9 | 1.9 | 12. 1-15.5 | 279 |
| 4x4 | 2.5 | 1.0 | 2.0 | 14.0-17.9 | 383 |
| 4x6 | 3.2 | 1.0 | 2.3 | 15. 7-20.0 | 522 |
| 4x10 | 4.3 | 1.2 | 3.4 | 20. 9-26. 5 | 936 |
| 4x16 | 5.3 | 1.2 | 3.6 | 23. 8-30. 1 | 1266 |
| 4x25 | 7.0 | 1.4 | 4.1 | 28.9-36.6 | 1896 |
| 4x35 | 8.0 | 1.4 | 4.4 | 32. 5-41. 1 | 2410 |
| 4x50 | 9.6 | 1.6 | 4.8 | 37. 7-47. 5 | 3214 |
| 4x70 | 11.5 | 1.6 | 5.2 | 42. 7-54.0 | 4396 |
| 4x95 | 13.3 | 1.8 | 5.9 | 48.4-61.0 | 5800 |
| 4x120 | 15.0 | 1.8 | 6.0 | 53. 0-66. 0 | 6895 |
| 4x150 | 16.8 | 2.0 | 6.5 | 58. 0-73.0 | 8570 |
