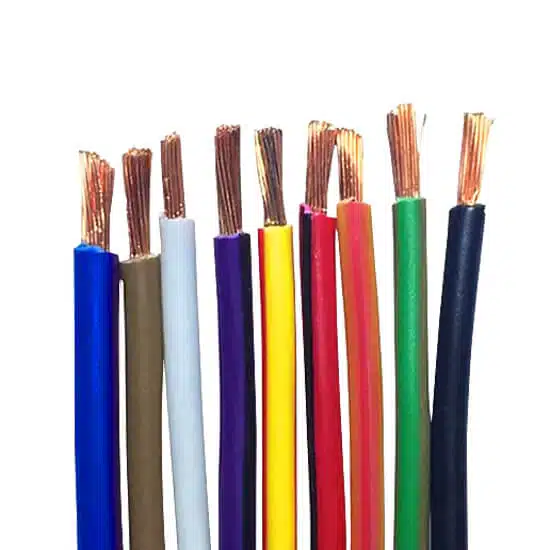

RV flexible cables are designed based on the Chinese standard, GB5023. “R” stands for flexible conductor, and “V” stands for PVC sheath.
These flex cables have a wide range of applications in the field of industrial power distribution, especially suitable for the more stringent requirements of flexible installation sites, such as electronic control cabinets, distribution boxes and a variety of low-voltage electrical equipment, can be used for power, electrical control signals and switching signals transmission.
RV wire and cable using a flexible structure of the design of the conductor bending radius is small, and is suitable for the installation of wet and oily places.
GB/T 5023.5
CCC Approval
– Operating voltage: 450/750V
– Flexible bending radius: 12.5 x Ø
– Fixed bending radius: 12.5 x Ø
– Temperature Rate: -5º C to +70º C
— Flexible
– Flame Retardant
– Transmission of electric power, electric control signals, and switching signals
– Flexible installation places with strict requirements,
Electric control cabinets, distribution boxes, and all kinds of low-voltage electrical equipment,
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
|---|---|---|---|---|---|
| # x mm² | mm | mm | kg/km | kg/km | |
| 16(30/30) | 1 x 1.5 | 0,7 | 3.1 | 14.4 | 20 |
| 14(50/30) | 1 x 2.5 | 0,8 | 3.6 | 24 | 31 |
| 12(56/28) | 1 x 4 | 0,8 | 4.3 | 38 | 48 |
| 10(84/28) | 1 x 6 | 0,8 | 4.9 | 58 | 69 |
| 8(80/26) | 1 x 10 | 1,0 | 6.4 | 96 | 121 |
| 6(128/26) | 1 x 16 | 1,0 | 8.1 | 154 | 211 |
| 4(200/26) | 1 x 25 | 1,2 | 9.8 | 240 | 303 |
| 2 (280/26) | 1 x 35 | 1,2 | 11.1 | 336 | 417 |
| 1 (400/26) | 1 x 50 | 1,4 | 13.1 | 480 | 539 |
| 2/0 (356/24) | 1 x 70 | 1,4 | 15.5 | 672 | 730 |
| 3/0 (485/24) | 1 x 95 | 1,6 | 17.2 | 912 | 900 |
| 4/0 (614/24) | 1 x 120 | 1,6 | 19.7 | 1152 | 1135 |
| 300MCM (765/24) | 1 x 150 | 1,8 | 21.3 | 1440 | 1410 |
| 350MCM (944/24) | 1 x 185 | 2,0 | 23.4 | 1776 | 1845 |
| 500MCM(1225/24) | 1 x 240 | 2,2 | 27.1 | 2304 | 2270 |
