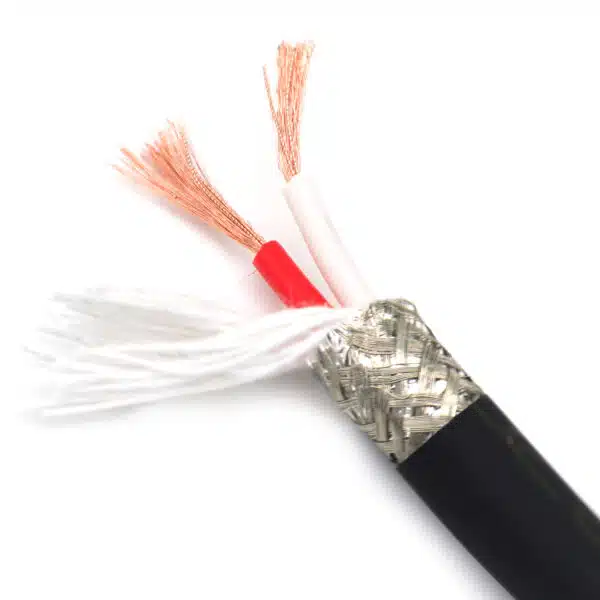

KMCABLE braided and shielded microphone cables, these cables are all stranded OFC copper wire; highly flexible PVC jacket and PVC insulation; 90% coverage copper wire braided shield. These cables are well shielded and provide a stable and high quality audio signal.
| Cable Structure | 2x0.15 | 2x0.22 | 2x0.34 | 2x0.50 |
|---|---|---|---|---|
| Conductor material | Copper, Bare | Copper, Bare | Copper, Bare | Copper, Bare |
| Core insultation | PVC | PVC | PVC | PVC |
| Core color | Red Blue(White) | Red Blue(White) | Red Blue(White) | Red Blue(White) |
| Sheath material | PVC | PVC | PVC | PVC |
| Sheath color | Black | Black | Black | Black |
| Cable external diameter | 4.2mm | 6.0mm | 6.5mm | 6.7mm |
| Conductor resistance | 1 GOhm x km | 1 GOhm x km | 1 GOhm x km | 1 GOhm x km |
| Weight | 27kg/km | 30kg/km | 55kg/km | 59kg/km |
| Min bending radius for laying | 42mm | 60mm | 65mm | 67mm |
| Operating temperature range | -25°C~70°C | -25°C~70°C | -25°C~70°C | -25°C~70°C |
