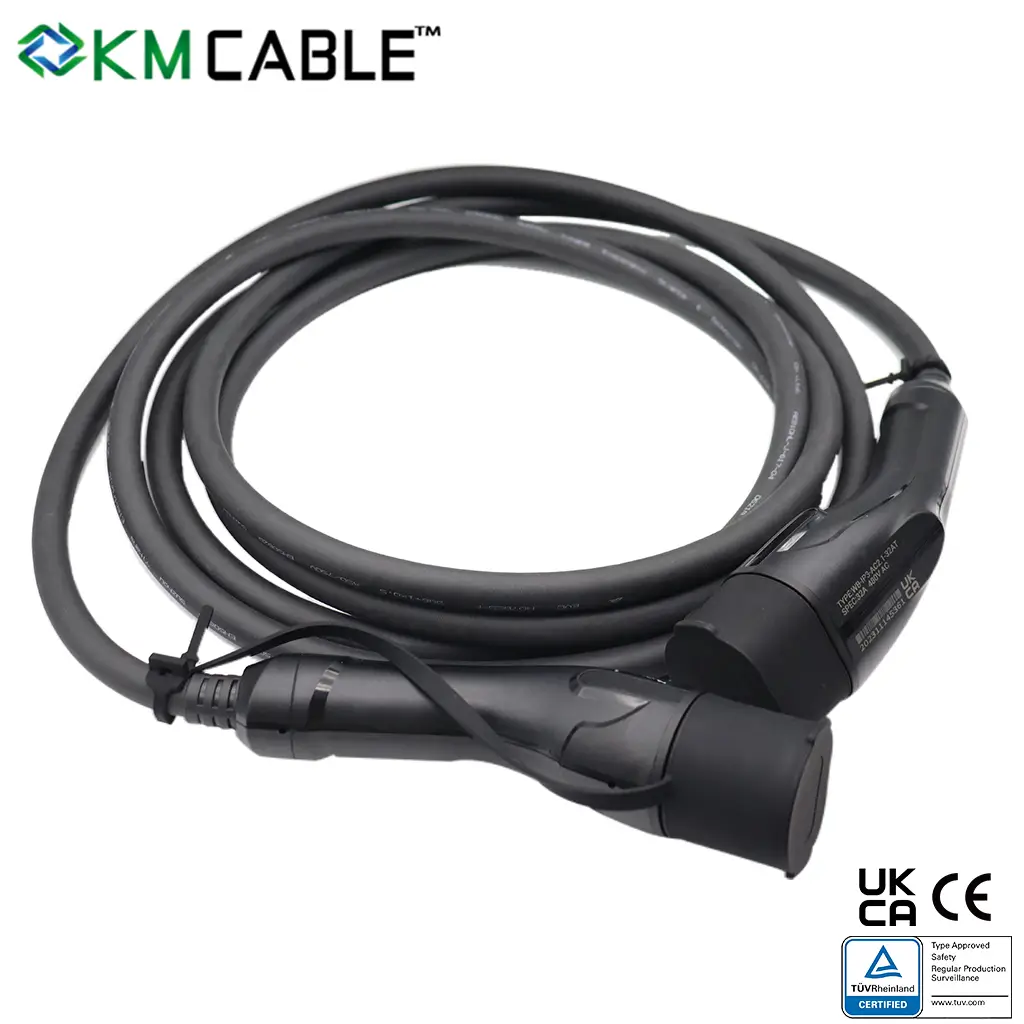

Heavy-Duty 22kW Type 2 to Type 2 EV Charging Cable — for Distributors, Installers & Fleets
Certified, high-throughput AC charging built for commercial deployment at scale.
1. 22kW Output — 3-phase, 32A for efficient commercial charging
2. Industrial TPU Jacket — −30°C to +50°C, abrasion & UV resistant, high plug-cycle durability
3. Universal Fit — IEC 62196 compliant, all Type 2 EVs & AC stations (EU / UK / AU)
4. TÜV / CE / UKCA Certified — resale & installation ready
5. IP54 Weatherproof — reliable indoor & outdoor use
Contact us for bulk pricing, flexible lengths & MOQ details.
| Product name | EV Charging Cable |
|---|---|
| Condition | New |
| Model Number | WB-IP3-AC2.1-32AT |
| Connector Standard | type 2 to type 2 |
| Power | 22kw/11kw/7kw/3.6kw |
| Rated Current | 16A/32A 3 Phase |
| Cable Length | 5M/10M/15M |
| Sheath | TPU |
| Cable Spec | 5×6.0mm²+2×0.5mm² |
| Certificate | TUV mark/ CE / UKCA / CB |
| Standard | IEC 62196-1:2022 |
| Application | Electric Vehicle Car Charging |
| Packages | Cartons |
| H07BZ5-F 5G6.0 mm² + 2x0.5 mm² EV Charging Cable | ||||
|---|---|---|---|---|
| Technical Specification Sheet | ||||

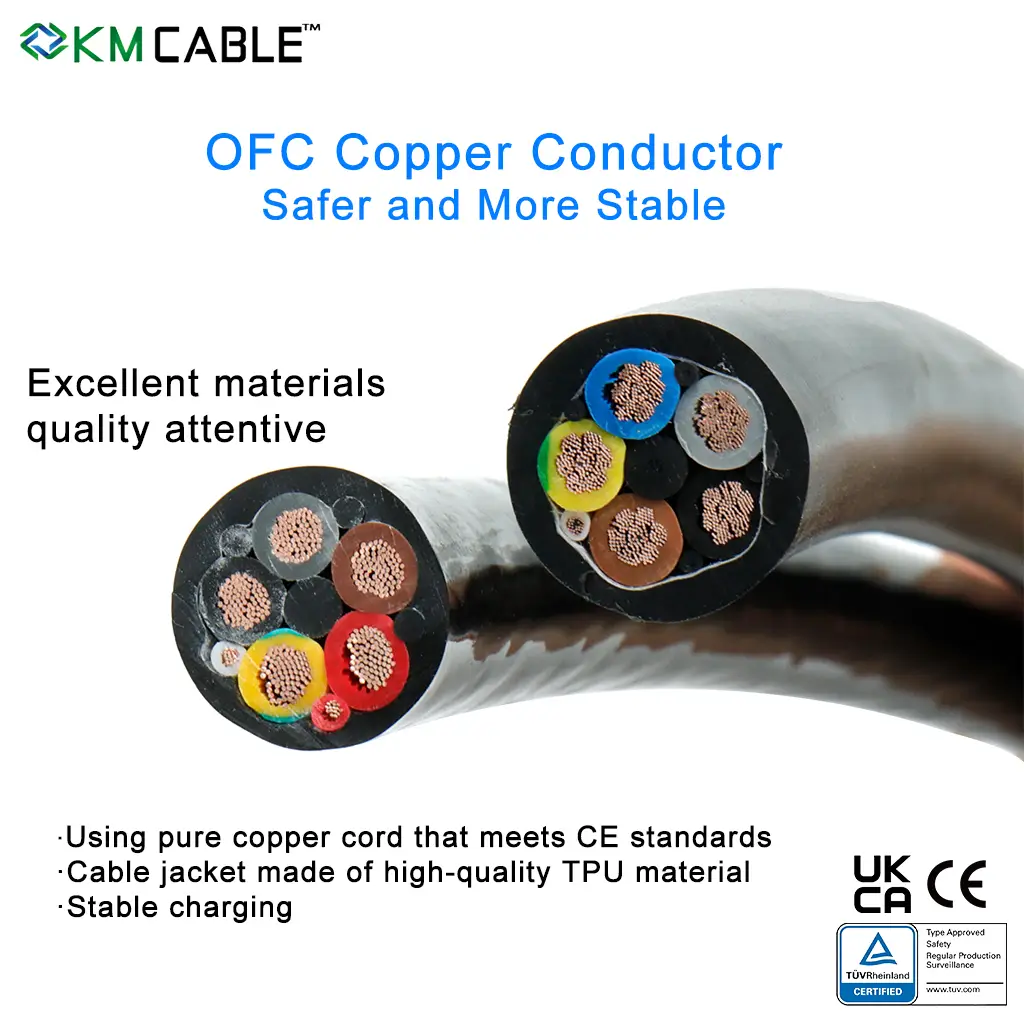

| SECTION 1: Conductor Structure | ||||
| Core / Marking | Color | Cross-Section | Conductor Type | Function |
| Phase L1 | Brown | 6.0 mm² | Stranded Copper | Power Conductor (L1) |
| Phase L2 | Black | 6.0 mm² | Stranded Copper | Power Conductor (L2) |
| Phase L3 | Grey | 6.0 mm² | Stranded Copper | Power Conductor (L3) |
| Neutral (N) | Blue | 6.0 mm² | Stranded Copper | System Power Return Line |
| Protective Earth (PE) | Yellow/Green | 6.0 mm² | Stranded Copper | Safety Ground Core |
| Proximity Pilot (PP) | White | 0.5 mm² | Stranded Copper | Signal & Proximity Sensing |
| Control Pilot (CP) | Red | 0.5 mm² | Stranded Copper | Charging Communication |
| SECTION 2: Construction Materials | ||||
| Component | Specification | |||
| Copper Conductor | Class 5/6 Super Flexible, OFC Stranded Bare Copper | |||
| Central Filler | High-strength Tensile Material, Maintains Cable Roundness | |||
| Outer Jacket (Sheath) | Flame-Retardant Wear-Resistant, Premium PUR or TPU | |||
| SECTION 3: Standards & Certification | ||||
| Item | Details | |||
| Harmonized Code | H07BZ5-F | |||
| Standard Compliance | EN 50620 / IEC 62893 | |||
| Approval & Marks | TÜV, CE, CB Approved | |||
| Environmental Status | RoHS & REACH Compliant | |||
| Halogen-Free Status | Yes (EN 50267-2-1) | |||
| SECTION 4: Technical Characteristics | ||||
| Parameter | Value | |||
| Rated Voltage (Uo/U) | 450/750 V AC (0.6/1.0 kV DC) | |||
| Operating Temperature | -30°C to +90°C | |||
| Min. Bending Radius | 5 × OD (Fixed) / 10 × OD (Flexing) | |||
| Outer Diameter (OD) | 16.5 ± 0.5 mm | |||
| Flame Retardancy | IEC 60332-1-2 Flame Retardant | |||
