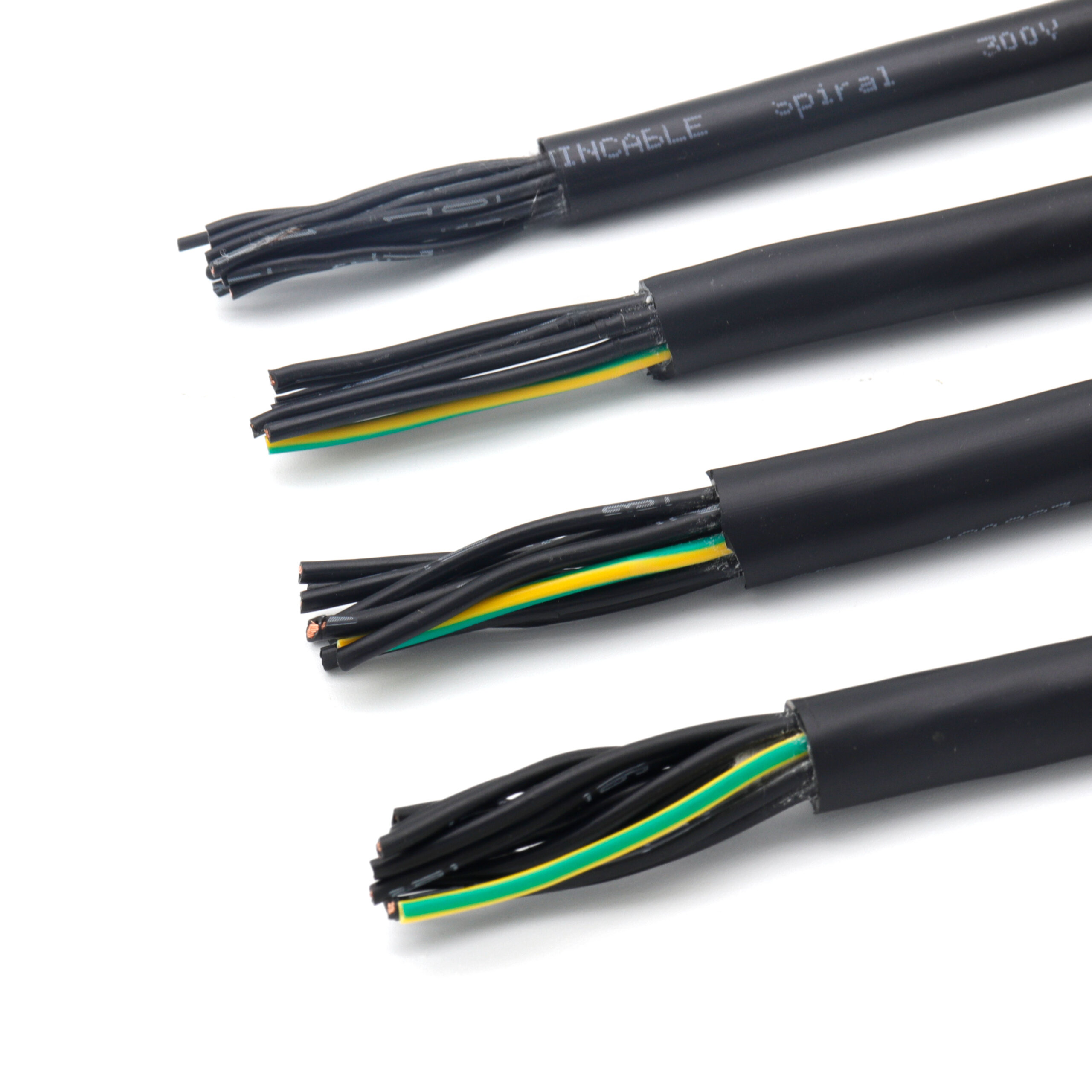

Trailing cables are used in applications with high mechanical stress, especially in frequent coiling with simultaneous tensile and torsional stress, in construction machinery, conveyors, lifts and cranes.
Being robust durable and weather-resistant cables, they are used in harsh conditions in mining operations and flexible conveying equipment as well as in railway motors. The cables are suitable for outdoor installation in dry, wet and humid locations as well as in open-air environments.
The cable is suitable for outdoor installation in dry, wet and humid locations as well as in open air environments.
Crane-drum cable acc to
DIN VDE 0250 part 814
| No.cores x cross-sec. mmJ | OD app. mm | Cop. weight kg / km | Weight app. kg / km |
|---|---|---|---|
| 3 G 1,5 | 13.6 | 47,0 | 236,0 |
| 4 G 1,5 | 14,0 | 58.0 | 274,0 |
| 5 G 1.5 | 14.5 | 81.0 | 316.0 |
| 7 G 1.5 | 18.8 | 115,0 | 440.0 |
| 12 G 1.5 | 21.0 | 196.0 | 606,0 |
| 16 G 1.5 | 24.5 | 259,0 | 696.0 |
| 18 G 1.5 | 25.5 | 271,0 | 750.0 |
| 24 G 1.5 | 27.5 | 390,0 | 1150.0 |
| 30 G 1.5 | 29.5 | 432.0 | 1325,0 |
| 3 G 2.5 | 15.3 | 74.0 | 305.0 |
| 4 G 2.5 | 16.5 | 98,0 | 350.0 |
| 5 G 2.5 | 17.5 | 124,0 | 465.0 |
| 7 G 2.5 | 20,0 | 168.0 | 576.0 |
| 12 G 2.5 | 23.5 | 308,0 | 850.0 |
| 18 G 2.5 | 28,0 | 451.0 | 1 181,0 |
| 24 G 2.5 | 32.5 | 615,0 | 1550,0 |
| 30 G 2.5 | 34,0 | 770,0 | 1810.0 |
| 40 G 2.5 | 42.5 | 1080.0 | 3110.0 |
| 50 G 2.5 | 46.5 | 1200.0 | 3200.0 |
| 4 G 4 | 18.5 | 158.0 | 510.0 |
| 5 G 4 | 21.5 | 220.0 | 635.0 |
| 4 G 6 | 21.0 | 241.0 | 650.0 |
| 5 G 6 | 23.5 | 317.0 | 800.0 |
| 4 G 10 | 26.0 | 404.0 | 1010.0 |
| 5 G 10 | 28.0 | 508.0 | 1200.0 |
| 4 G 16 | 29.0 | 642.0 | 1300.0 |
| 5 G 16 | 31.5 | 768.0 | 1700.0 |
| 4 G 25 | 35.0 | 1005.0 | 2000.0 |
| 4 G 35 | 37.5 | 1344.0 | 2610.0 |
| 4 G 50 | 44.5 | 2010.0 | 3500.0 |
| 4 G 70 | 49.0 | 2688.0 | 4600.0 |
| 4 G 95 | 56.0 | 3648.0 | 6100.0 |
